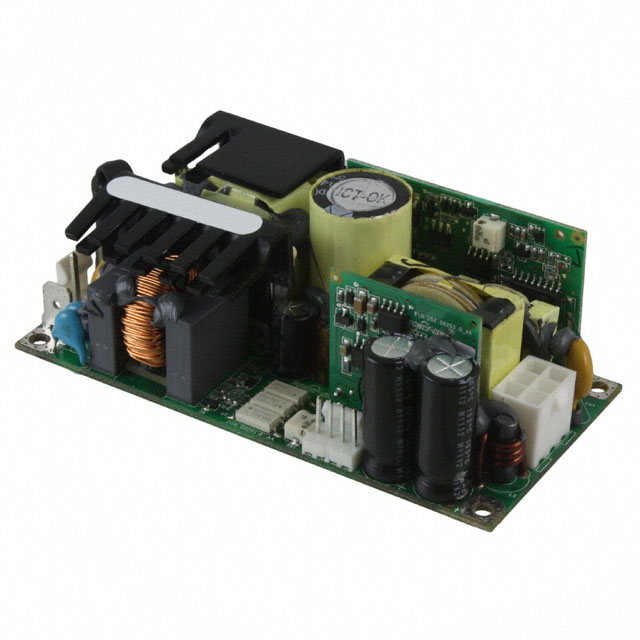

ABC200 Series
Manufacturer: Bel Fuse Inc.
Beta
⌘K
AC/DC CONVERTER 24V 200W
| Part | Efficiency | Number of Outputs | Voltage - Input [Max] | Voltage - Input [Min] | Voltage - Output 1 | Applications | Approval Agency | Mounting Type | Power (Watts) | Operating Temperature [Max] | Operating Temperature [Min] | Features | Voltage - Isolation | Type | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Current - Output 1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bel Fuse Inc. | 91 % | 1 | 264 VAC | 90 VAC | 24 V | ITE (Commercial) | CB CE | Chassis Mount | 200 Watts | 70 °C | -10 °C | PFC Remote Sense Universal Input | 4.2 kV | Open Frame | 101.6 mm | 50.8 mm | 2 in | 36.6 mm | 4 " | 1.44 in | |
Bel Fuse Inc. | 91 % | 1 | 264 VAC | 90 VAC | 48 V | ITE (Commercial) | CB CE | Chassis Mount | 200 Watts | 70 °C | -10 °C | PFC Remote Sense Universal Input | 4.2 kV | Open Frame | 101.6 mm | 50.8 mm | 2 in | 36.6 mm | 4 " | 1.44 in | 4.25 A |
