104128 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

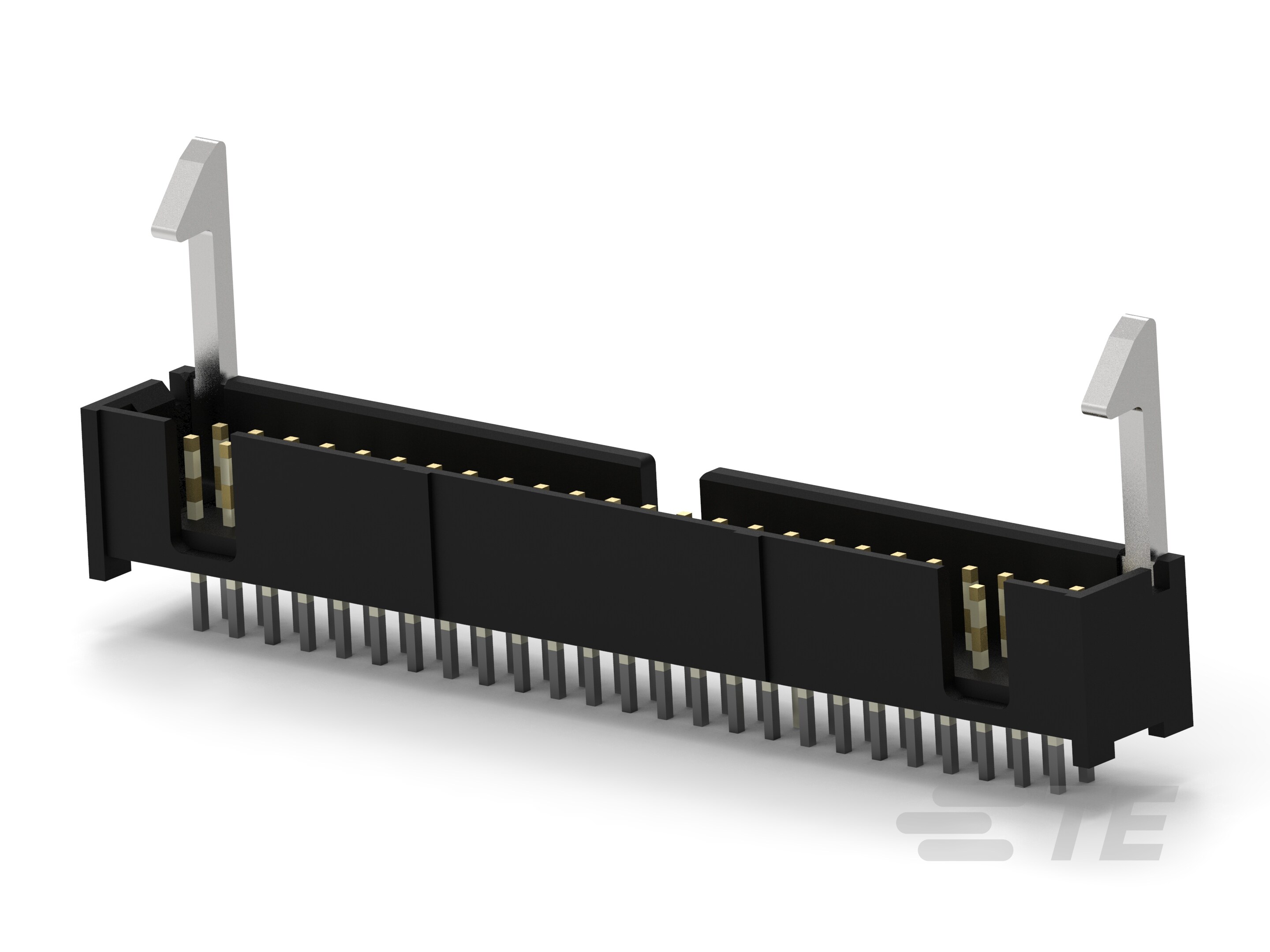

050 LOPRO HDR SP 30DP LATCH ROHS COMPLIANT: NO

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Connector Type	Shrouding	Contact Shape	Contact Finish - Mating	Contact Length - Mating [x]	Contact Length - Mating [x]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Fastening Type	Insulation Color	Pitch - Mating	Pitch - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Features	Insulation Height [z]	Insulation Height [z]	Contact Length - Post	Contact Length - Post	Insulation Material	Style	Contact Finish - Post	Material Flammability Rating	Contact Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Current Rating (Amps)	Voltage Rating	Number of Rows [custom]	Number of Positions Loaded	Number of Positions	Termination	Contact Material	Number of Positions [custom]

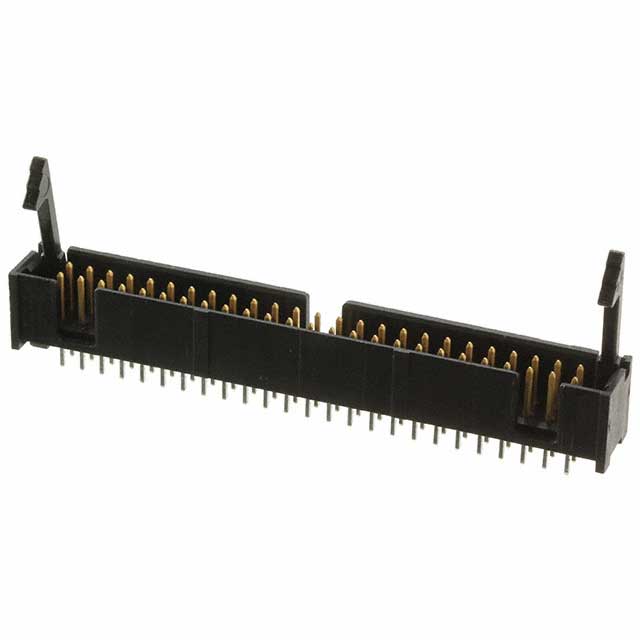

TE Connectivity AMP Connectors 104128-9	2.54 µm	100 µin	Header	Shrouded - 4 Wall	Square	Gold or Gold-Palladium	0.24 in	6.1 mm	105 ░C	-65 ░C	Through Hole	Latch Lock/Eject Hooks Long	Black	0.1 "	2.54 mm	0.1 in	2.54 mm	Keying Slot	9.78 mm	0.385 in	3.05 mm	0.12 in	Glass Filled Nylon Polyamide (PA)	Board to Cable/Wire	Tin-Lead	UL94 V-0	Male Pin	0.76 Ám	30 Áin	1 A	250 VAC	2	All	50	Solder	Brass
TE Connectivity AMP Connectors 104128-7	2.54 µm	100 µin	Header	Shrouded - 4 Wall	Square	Gold or Gold-Palladium	0.24 in	6.1 mm	105 ░C	-65 ░C	Through Hole	Latch Lock/Eject Hooks Long	Black	0.1 "	2.54 mm	0.1 in	2.54 mm	Keying Slot	9.78 mm	0.385 in	3.05 mm	0.12 in	Glass Filled Nylon Polyamide (PA)	Board to Cable/Wire	Tin-Lead	UL94 V-0	Male Pin	0.76 Ám	30 Áin	1 A	250 VAC	2	All	40	Solder	Brass
TE Connectivity AMP Connectors 1-104128-0	2.54 µm	100 µin	Header	Shrouded - 4 Wall	Square	Gold or Gold-Palladium	0.24 in	6.1 mm	105 ░C	-65 ░C	Through Hole	Latch Lock/Eject Hooks Long	Black	0.1 "	2.54 mm	0.1 in	2.54 mm	Keying Slot	9.78 mm	0.385 in	3.05 mm	0.12 in	Glass Filled Nylon Polyamide (PA)	Board to Cable/Wire	Tin-Lead	UL94 V-0	Male Pin	0.76 Ám	30 Áin	1 A	250 VAC	2	All	60	Solder	Brass
TE Connectivity AMP Connectors 1-104128-2	2.54 µm	100 µin	Header	Shrouded - 4 Wall	Square	Gold or Gold-Palladium	0.24 in	6.1 mm	105 ░C	-65 ░C	Through Hole	Latch Lock/Eject Hooks Long	Black	0.1 "	2.54 mm	0.1 in	2.54 mm	Keying Slot	9.78 mm	0.385 in	3.05 mm	0.12 in	Glass Filled Nylon Polyamide (PA)	Board to Cable/Wire	Tin-Lead	UL94 V-0	Male Pin	0.76 Ám	30 Áin	1 A	250 VAC	2	All	30	Solder	Brass

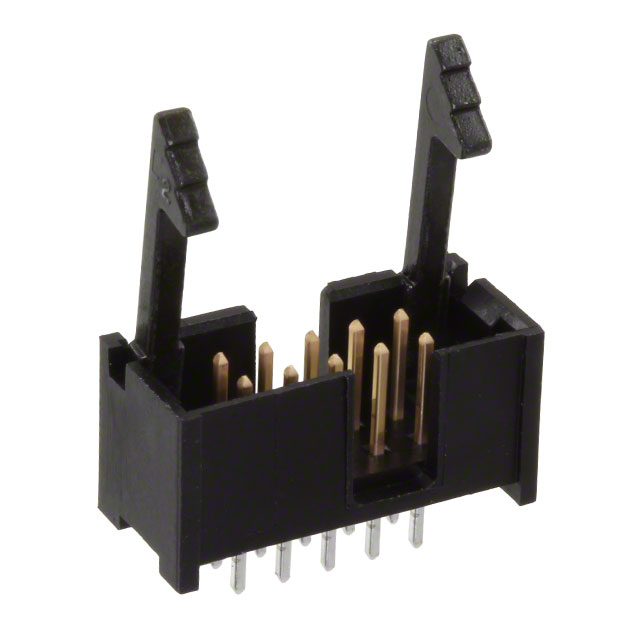

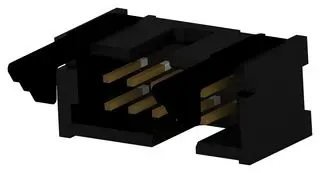

TE Connectivity AMP Connectors 104128-1	2.54 µm	100 µin	Header	Shrouded - 4 Wall	Square	Gold or Gold-Palladium	0.24 in	6.1 mm	105 ░C	-65 ░C	Through Hole	Latch Lock/Eject Hooks Long	Black	0.1 "	2.54 mm	0.1 in	2.54 mm	Keying Slot	9.78 mm	0.385 in	3.05 mm	0.12 in	Glass Filled Nylon Polyamide (PA)	Board to Cable/Wire	Tin-Lead	UL94 V-0	Male Pin	0.76 Ám	30 Áin	1 A	250 VAC	2	All	10	Solder	Brass
TE Connectivity AMP Connectors 104128-6	2.54 µm	100 µin	Header	Shrouded - 4 Wall	Square	Gold or Gold-Palladium	0.24 in	6.1 mm	105 ░C	-65 ░C	Through Hole	Latch Lock/Eject Hooks Long	Black	0.1 "	2.54 mm	0.1 in	2.54 mm	Keying Slot	9.78 mm	0.385 in	3.05 mm	0.12 in	Glass Filled Nylon Polyamide (PA)	Board to Cable/Wire	Tin-Lead	UL94 V-0	Male Pin	0.76 Ám	30 Áin	1 A	250 VAC	2	All		Solder	Brass	34

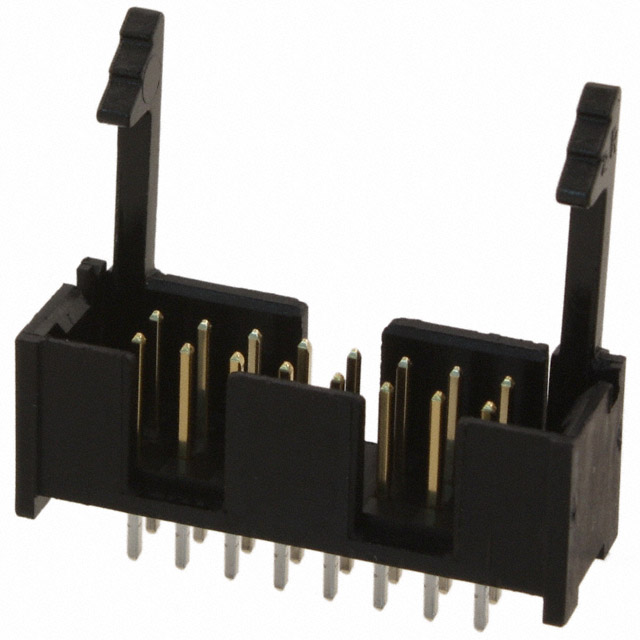

TE Connectivity AMP Connectors 104128-3	2.54 µm	100 µin	Header	Shrouded - 4 Wall	Square	Gold or Gold-Palladium	0.24 in	6.1 mm	105 ░C	-65 ░C	Through Hole	Latch Lock/Eject Hooks Long	Black	0.1 "	2.54 mm	0.1 in	2.54 mm	Keying Slot	9.78 mm	0.385 in	3.05 mm	0.12 in	Glass Filled Nylon Polyamide (PA)	Board to Cable/Wire	Tin-Lead	UL94 V-0	Male Pin	0.76 Ám	30 Áin	1 A	250 VAC	2	All	16	Solder	Brass

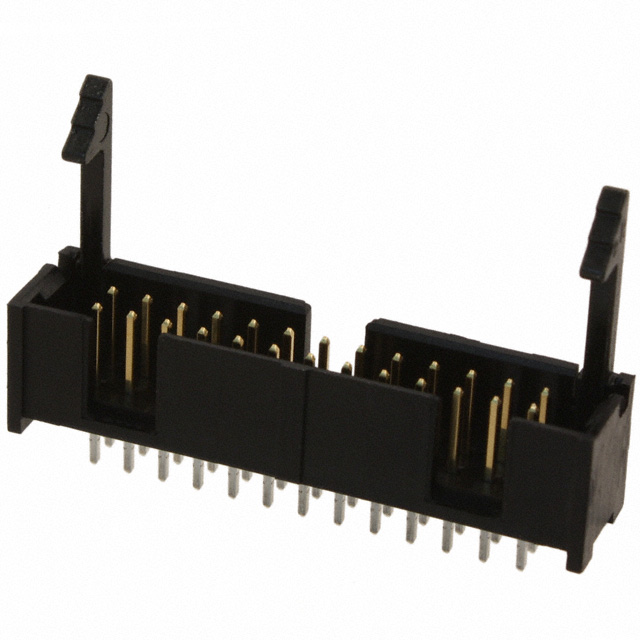

TE Connectivity AMP Connectors 104128-5	2.54 µm	100 µin	Header	Shrouded - 4 Wall	Square	Gold or Gold-Palladium	0.24 in	6.1 mm	105 ░C	-65 ░C	Through Hole	Latch Lock/Eject Hooks Long	Black	0.1 "	2.54 mm	0.1 in	2.54 mm	Keying Slot	9.78 mm	0.385 in	3.05 mm	0.12 in	Glass Filled Nylon Polyamide (PA)	Board to Cable/Wire	Tin-Lead	UL94 V-0	Male Pin	0.76 Ám	30 Áin	1 A	250 VAC	2	All	26	Solder	Brass
