JL10-8A2 Series
Manufacturer: JAE Electronics
Beta
⌘K

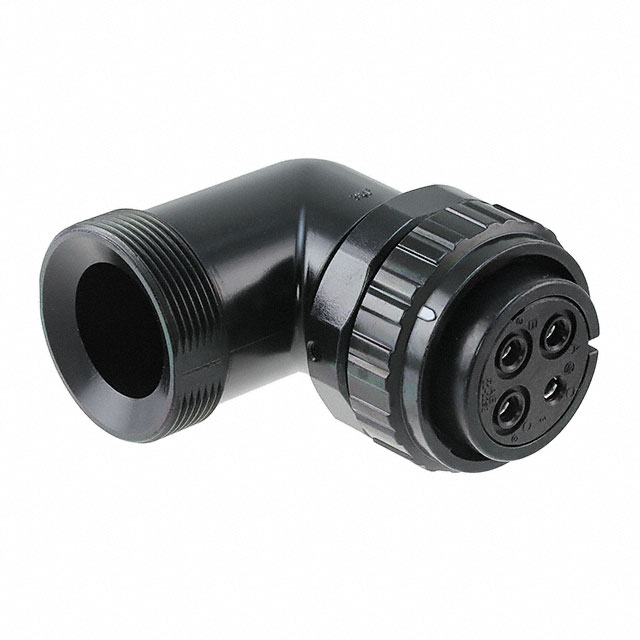

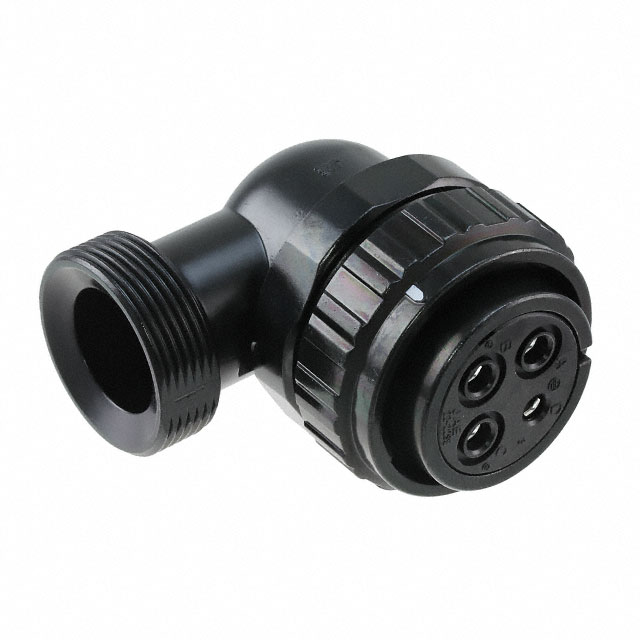

CONN PLUG FMALE 4P SOLDER CUP
| Part | Orientation | Mounting Type | Contact Finish - Mating | Insert Material | Primary Material | Backshell Material, Plating | Fastening Type | Ingress Protection | Number of Positions | Shell Material | Shell Finish | Color | Contact Material | Applications | Shell Size - Insert [Min] | Shell Size - Insert [Max] | Connector Type | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JAE Electronics | N (Normal) | Free Hanging (In-Line) Right Angle | Silver | Synthetic Resin | Metal | Aluminum Alloy Zinc | Bayonet Lock | IP67 - Dust Tight Waterproof | 4 | Aluminum Alloy | Zinc | Black | Copper Alloy | Communication Systems Industrial Test Equipment & Measurement | 22 | 22 | Plug Female Sockets | Backshell Coupling Nut Ground Rotatable |
 JAE Electronics | N (Normal) | Free Hanging (In-Line) Right Angle | Silver | Synthetic Resin | Metal | Aluminum Alloy Zinc | Bayonet Lock | IP67 - Dust Tight Waterproof | 4 | Aluminum Alloy | Zinc | Black | Copper Alloy | Communication Systems Industrial Test Equipment & Measurement | 22 | 22 | Plug Female Sockets | Backshell Coupling Nut Ground Rotatable |
