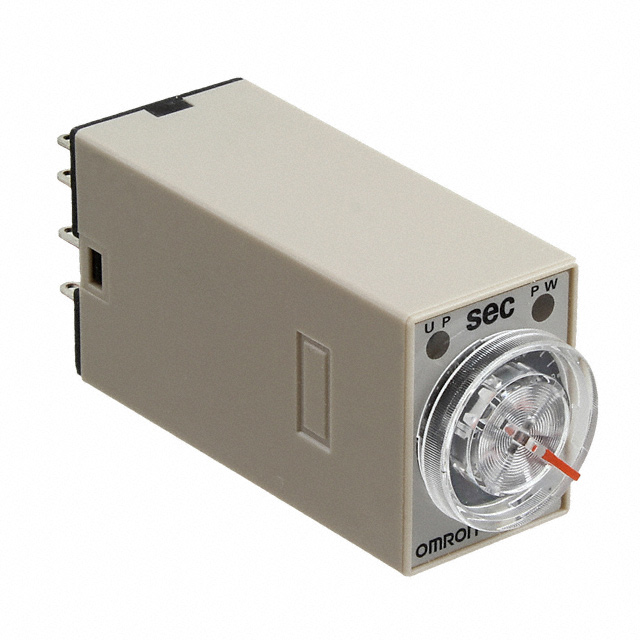

H3Y-2 D Series

Catalog

RELAY TIME DELAY 60S

Part	Contact Rating @ Voltage	Circuit	Delay Time [Min]	Delay Time [Max]	Termination Style	Timing Adjustment Method	Relay Type	Voltage - Supply	Function	Mounting Type	Timing Initiate Method
Omron Electronics Inc-EMC Div H3Y-2 DC12 60S	5 A 250 VAC	DPDT (2 Form C)	2 s	60 Sec	Plug In	Hand Dial	Mechanical Relay	12 VDC	Off-Delay On-Delay	Socketable	Input Voltage
Omron Electronics Inc-EMC Div H3Y-2 DC12 60SOMS	5 A 250 VAC	DPDT (2 Form C)	2 s	60 Sec	Plug In	Hand Dial	Mechanical Relay	12 VDC	Off-Delay On-Delay	Socketable	Input Voltage
Omron Electronics Inc-EMC Div H3Y-2 DC24 3H	5 A 250 VAC	DPDT (2 Form C)	0.1 Hrs	3 Hrs	Plug In	Hand Dial	Mechanical Relay	24 VDC	Off-Delay On-Delay	Socketable	Input Voltage
Omron Electronics Inc-EMC Div H3Y-2 DC24 1S	5 A 250 VAC	DPDT (2 Form C)	0.1 Sec	1 Sec	Plug In	Hand Dial	Mechanical Relay	24 VDC	Off-Delay On-Delay	Socketable	Input Voltage
Omron Electronics Inc-EMC Div H3Y-2 DC24 5S	5 A 250 VAC	DPDT (2 Form C)	0.2 Sec	5 Sec	Plug In	Hand Dial	Mechanical Relay	24 VDC	Off-Delay On-Delay	Socketable	Input Voltage
Omron Electronics Inc-EMC Div H3Y-2 DC24 30S	5 A 250 VAC	DPDT (2 Form C)	1 Sec	30 Sec	Plug In	Hand Dial	Mechanical Relay	24 VDC	Off-Delay On-Delay	Socketable	Input Voltage
Omron Electronics Inc-EMC Div H3Y-2 DC24 3M	5 A 250 VAC	DPDT (2 Form C)	1 Min	30 Min	Plug In	Hand Dial	Mechanical Relay	24 VDC	Off-Delay On-Delay	Socketable	Input Voltage
Omron Electronics Inc-EMC Div H3Y-2 DC48 10S	5 A 250 VAC	DPDT (2 Form C)			Plug In	Hand Dial	Mechanical Relay	48 VDC	Off-Delay On-Delay	Socketable	Input Voltage
