01K108 Series
Manufacturer: Rosenberger
Beta
⌘K
PRECISION 1.00 ADAPTER
| Part | Body Material | Operating Temperature (Min) | Operating Temperature (Max) | Dielectric Material | Body Finish | Mating Cycles | Center Contact Material | Mounting Type | Center Gender | Adapter Series | Fastening Type | Adapter Type | Convert To (Adapter End) Type | Convert To (Adapter End) Gender | Conversion Type | Convert From (Adapter End) Jack Size | Convert From (Adapter End) Type | Style | Frequency - Max | Center Contact Plating | Impedance | Convert To (Adapter End) Precision | Convert To (Adapter End) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

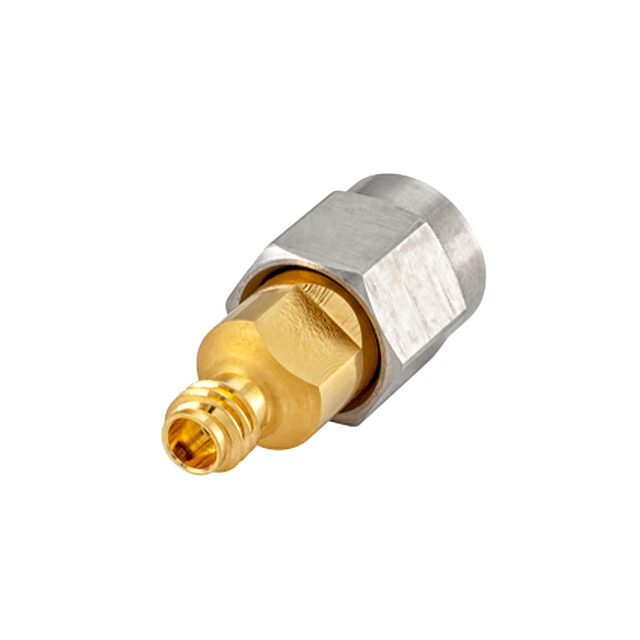

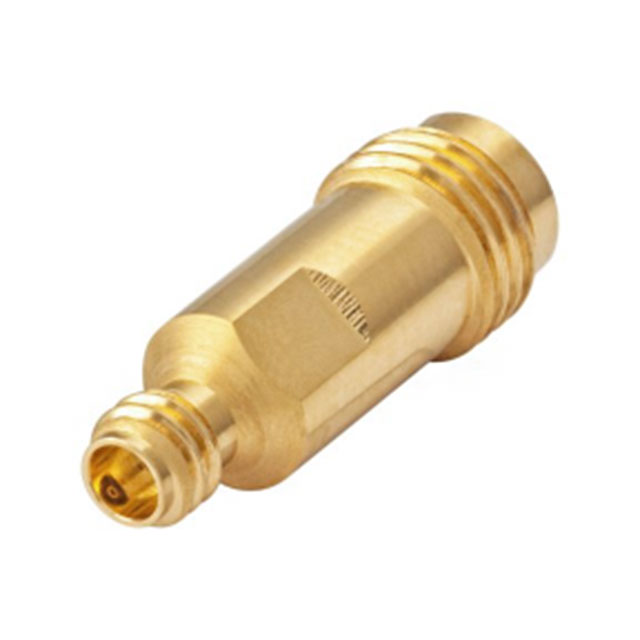

 Rosenberger | Beryllium Copper | -40 °C | 85 °C | Polyetheretherketone (PEEK) | Gold | 500 cycles | Beryllium Copper | Free Hanging (In-Line) | Female | RPC-1.00 to RPC-1.85 | Threaded | Jack to Jack | 1.85mm Jack | Female Socket | Between Series | 1 mm | Female Socket | Straight | 70 GHz | Gold | |||
 Rosenberger | Beryllium Copper Stainless Steel | -40 °C | 85 °C | Polyetheretherketone (PEEK) | Gold Passivated | 500 cycles | Beryllium Copper | Free Hanging (In-Line) | Female Male | RPC-1.00 to RPC-1.85 | Threaded | Plug to Jack | Between Series | 1 mm | Female Socket | Straight | 70 GHz | Gold | 50 Ohm | 1.85 mm | Male Pin Plug |
