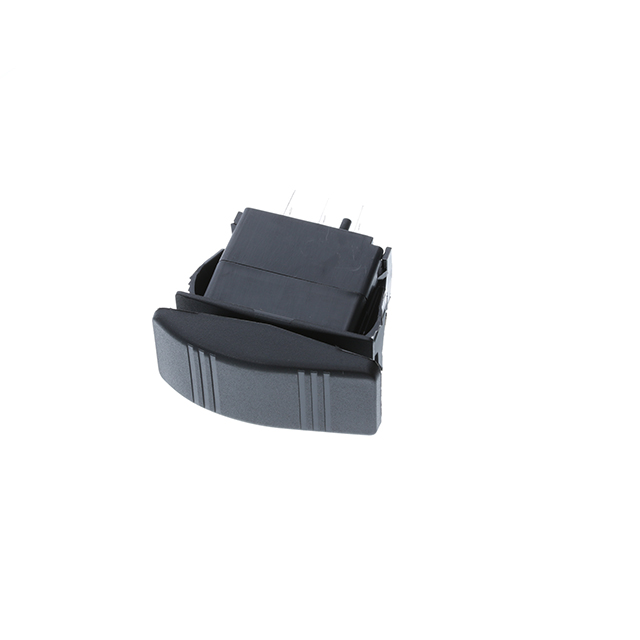

SRD2-1G Series
Manufacturer: Switch Components
Beta
⌘K
SWITCH ROCKER SPDT 21A 125V
| Part | Mechanical Life (Cycles) | Electrical Life (Cycles) | Ingress Protection IP Rating | Ingress Protection Description | Actuator Marking | Mounting Type | Switch Function | Voltage Rating - AC | Current Rating | Circuit | Operating Temperature (Max) | Operating Temperature (Min) | Panel Cutout Width | Panel Cutout Shape | Panel Cutout Length | Actuator Type | Quick Connect Size (0.250") | Termination Style | Color - Actuator/Cap | Voltage Rating - DC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Switch Components | 10000 Cycles | 6000 Cycles | IP56 | Dust Protected Water Resistant | No Marking | Panel Mount Snap-In | Mom-Off-Mom | 125 V | 20 A 21 A | SPDT | 85 °C | -25 °C | 21.2 mm | Rectangular | 36.8 mm | Convex (Reverse V) | 0.25 in | Quick Connect | Black | 14 V |
 Switch Components | 10000 Cycles | 6000 Cycles | IP56 | Dust Protected Water Resistant | No Marking | Panel Mount Snap-In | Mom-Off-Mom | 125 V | 20 A 21 A | SPDT | 85 °C | -25 °C | 21.2 mm | Rectangular | 36.8 mm | Convex (Reverse V) | 0.25 in | Quick Connect | Red | 14 V |
