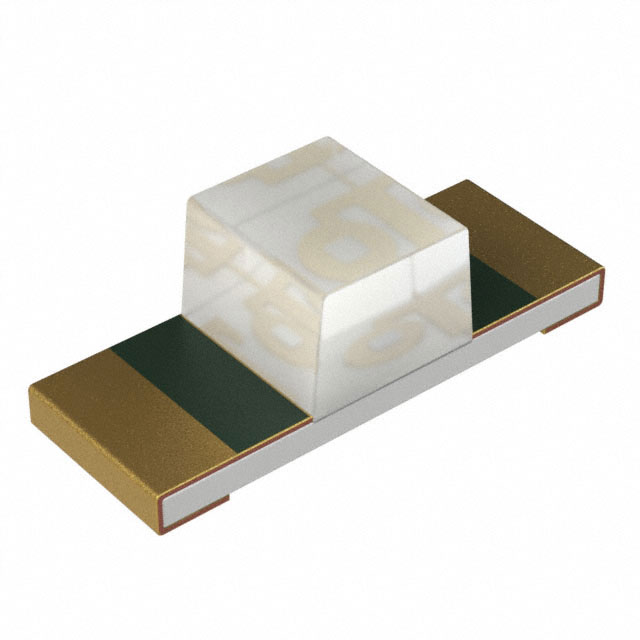

HSMQ-C265 Series
Manufacturer: Broadcom Limited
Beta
⌘K
LED GREEN CLEAR CHIP SMD
| Part | Lens Style | Millicandela Rating | Mounting Type | Height (Max) [Max] [z] | Lens Size [y] | Lens Size [x] | Lens Color | Package / Case | Wavelength - Peak | Viewing Angle | Current - Test | Wavelength - Dominant [custom] | Voltage - Forward (Vf) (Typ) | Configuration | Supplier Device Package | Lens Transparency | Color | Size / Dimension [y] | Size / Dimension [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Broadcom Limited | Rectangle with Flat Top | 140 mcd | Surface Mount | 1.2 mm | 1.2 mm | 1.25 mm | Colorless | 1305 (3412 Metric) | 520 nm | 150 ° | 20 mA | 527 nm | 3.4 V | Standard | Chip LED | Clear | Green | 1.25 mm | 3.4 mm |
