846-032 Series
Manufacturer: EDAC Inc.
Beta
⌘K

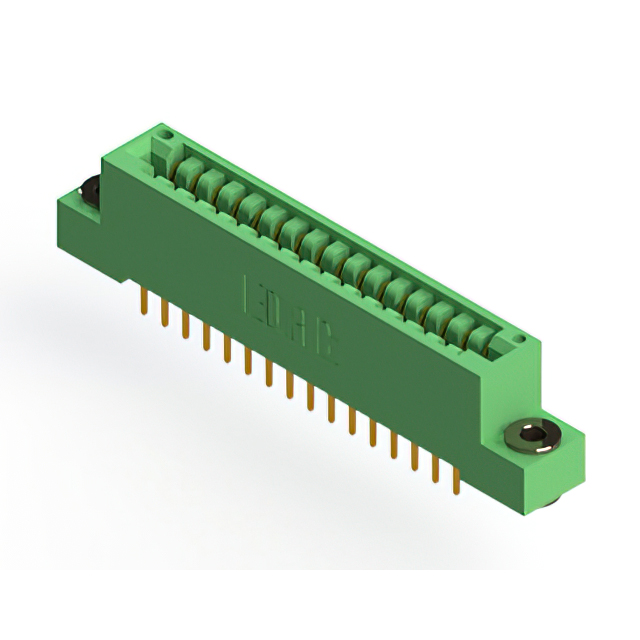

CONN EDGE DUAL FMALE 32POS 0.125
| Part | Material - Insulation | Termination Rows [custom] | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Pitch | Pitch | Contact Finish | Mounting Type | Read Out | Number of Rows [custom] | Gender | Number of Positions/Bay/Row | Color | Termination | Card Type | Contact Type | Card Thickness [Max] | Card Thickness [Min] | Contact Finish Thickness | Contact Finish Thickness | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Features | Termination Rows | Number of Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | Copper Alloy | 125 °C | -40 C | 3.18 mm | 0.125 in | Gold | Through Hole | Dual | 2 | Female | 16 | Green | Solder | Non Specified - Dual Edge | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | 0.116 " | Floating Bobbin Flush Mount | 2.95 mm | |||
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | Copper Alloy | 125 °C | -40 C | 3.18 mm | 0.125 in | Gold | Board Edge Straddle Mount | Dual | 2 | Female | 16 | Green | Solder Eyelet(s) | Non Specified - Dual Edge | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | 4-40 Threaded Insert Top Mount Opening | Card Extender | ||||
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | Copper Alloy | 125 °C | -40 C | 3.18 mm | 0.125 in | Gold | Through Hole | Dual | 2 | Female | 16 | Green | Wire Wrap | Non Specified - Dual Edge | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | 4-40 Threaded Insert Top Mount Opening | |||||
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | Copper Alloy | 125 °C | -40 C | 3.18 mm | 0.125 in | Gold | Through Hole | Dual | 2 | Female | 16 | Green | Wire Wrap | Non Specified - Dual Edge | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | 0.116 " | Floating Bobbin Flush Mount | 2.95 mm | |||
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | Copper Alloy | 125 °C | -40 C | 3.18 mm | 0.125 in | Gold | Through Hole | Dual | 2 | Female | 16 | Green | Solder | Non Specified - Dual Edge | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | 0.116 " | Floating Bobbin Flush Mount | 2.95 mm | |||
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | Copper Alloy | 125 °C | -40 C | 3.18 mm | 0.125 in | Gold | Through Hole | Dual | 2 | Female | 16 | Green | Solder | Non Specified - Dual Edge | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Flush Mount M3 Threaded Insert Top Opening | |||||
 EDAC Inc. | Diallyl Phthalate (DAP) | Copper Alloy | 125 °C | -40 C | 3.18 mm | 0.125 in | Gold | Through Hole | Single | Female | 32 | Green | Solder | Non Specified - Single Edge | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | 4-40 Flush Mount Threaded Insert Top Opening | 1 | 1 | |||||
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | Copper Alloy | 125 °C | -40 C | 3.18 mm | 0.125 in | Gold | Through Hole | Dual | 2 | Female | 16 | Green | Wire Wrap | Non Specified - Dual Edge | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | 0.116 " | Floating Bobbin Top Mount Opening | 2.95 mm | |||
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | Copper Alloy | 125 °C | -40 C | 3.18 mm | 0.125 in | Gold | Through Hole | Dual | 2 | Female | 16 | Green | Wire Wrap | Non Specified - Dual Edge | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm | |||
 EDAC Inc. | Diallyl Phthalate (DAP) | Copper Alloy | 125 °C | -40 C | 3.18 mm | 0.125 in | Gold | Through Hole | Single | Female | 32 | Green | Wire Wrap | Non Specified - Single Edge | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | 0.116 " | Floating Bobbin Top Mount Opening | 2.95 mm | 1 | 1 |
