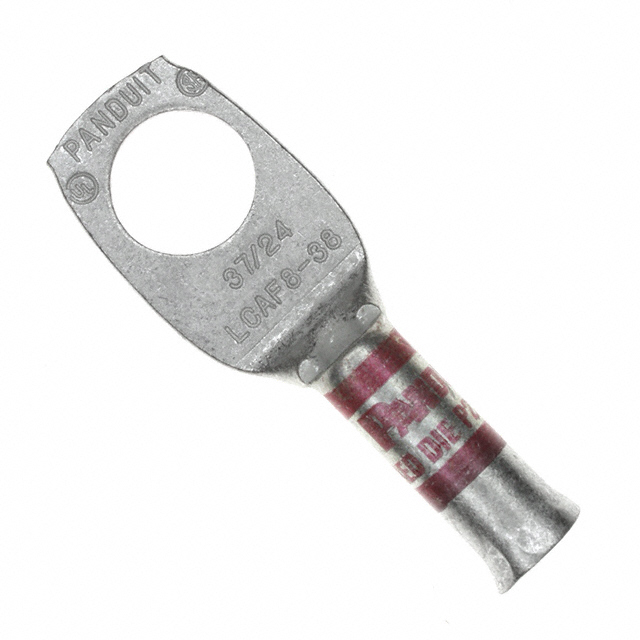

LCAF Series

Catalog

COPPER ONE-HOLE LUG FLARED BARREL 45 ANGLE ROHS COMPLIANT: YES

Part	Terminal Style	Terminal Type	Contact Finish	Width - Outer Edges [x]	Width - Outer Edges [x]	Tab Thickness	Tab Thickness	Diameter - Barrel OD	Diameter - Barrel OD [diameter]	Insulation	Mounting Type	Wire Gauge	Color	Diameter - Barrel ID [diameter]	Diameter - Barrel ID [diameter]	Stud/Tab Size	Contact Material	Diameter - Ring ID [diameter]	Diameter - Ring ID [diameter]	Termination	Stud/Tab Size	Diameter - Barrel OD [diameter]	Width - Outer Edges [y]	Width - Outer Edges [y]	Diameter - Ring ID [diameter]	Width - Outer Edges [custom]	Width - Outer Edges	Length - Overall [x]	Length - Overall [x]	Width - Outer Edges [y]
Panduit Corp LCAF8-10H-L	Single Stud Hole	Rectangular Tongue	Electro-Tin	10.41 mm	0.41 "	2.03 mm	0.08 in	8.13 mm	0.32 in	Non-Insulated	45° Angle Free Hanging (In-Line)	8 AWG	Red	4.57 mm	0.18 in	10 Stud	Copper	5.08 mm	0.2 in	Barrel Crimp

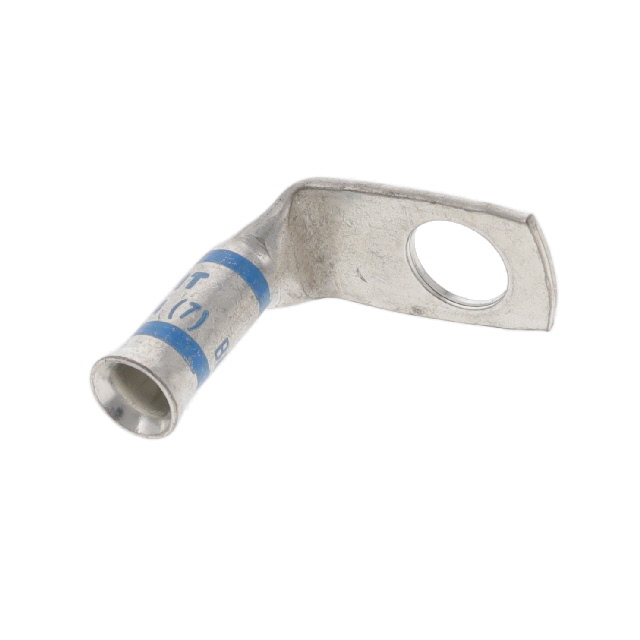

Panduit Corp LCAF6-38F-L	Single Stud Hole	Rectangular Tongue	Electro-Tin			1.52 mm	0.06 in		0.37 in	Non-Insulated	Free Hanging (In-Line) Right Angle	6 AWG	Blue	5.59 mm	0.22 in		Copper	10.41 mm	0.41 "	Barrel Crimp	3/8 Stud	9.4 mm	15.75 mm	0.62 in

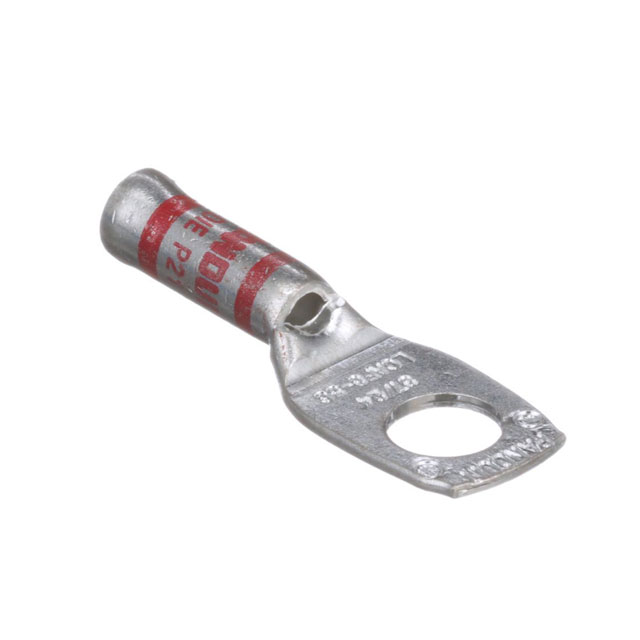

Panduit Corp LCAF8-56-L	Single Stud Hole	Rectangular Tongue	Electro-Tin			1.27 mm	0.05 "	8.13 mm	0.32 in	Non-Insulated	Free Hanging (In-Line)	8 AWG	Red	4.57 mm	0.18 in	0.3125 Stud	Copper	0.34 in		Barrel Crimp			14.22 mm	0.56 in	8.64 mm

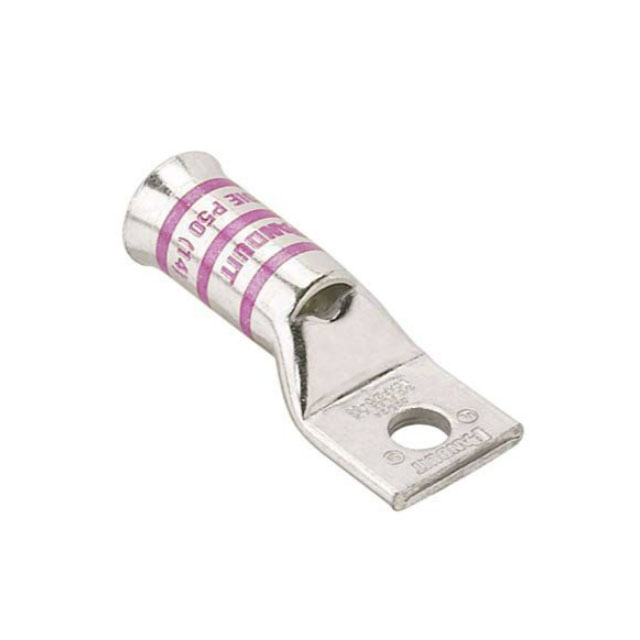

Panduit Corp LCAF1-56-X	Single Stud Hole	Rectangular Tongue	Electro-Tin			3.05 mm	0.12 in			Non-Insulated	Free Hanging (In-Line)	1 AWG	Pink	9.91 mm	0.39 "	0.3125 Stud	Copper	0.34 in		Barrel Crimp					8.64 mm	0.8 in	20.32 mm	2 in	50.8 mm

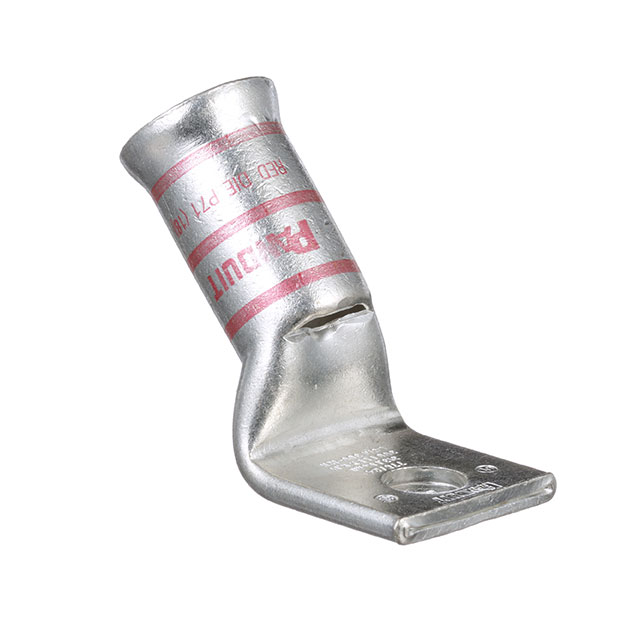

Panduit Corp LCAF300-12H-6	Single Stud Hole	Rectangular Tongue	Electro-Tin			4.57 mm	0.18 in		1.1 in	Non-Insulated	45° Angle Free Hanging (In-Line)	300 MCM (kcmil)	Red	19.3 mm	0.76 in		Copper	0.53 in		Barrel Crimp	1/2 Stud	27.94 mm	35.31 mm	1.39 in	13.46 mm

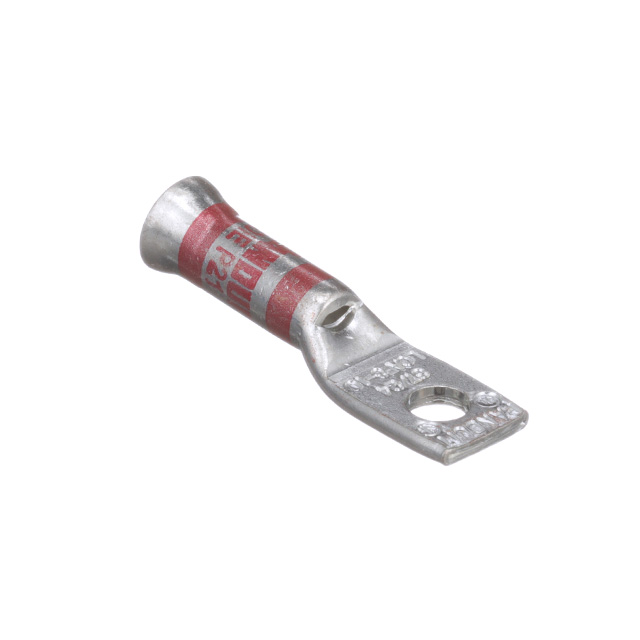

Panduit Corp LCAF8-10-L	Single Stud Hole	Rectangular Tongue	Electro-Tin	10.41 mm	0.41 "	2.03 mm	0.08 in	8.13 mm	0.32 in	Non-Insulated	Free Hanging (In-Line)	8 AWG	Red	4.57 mm	0.18 in	10 Stud	Copper	5.08 mm	0.2 in	Barrel Crimp								1.45 in	36.83 mm

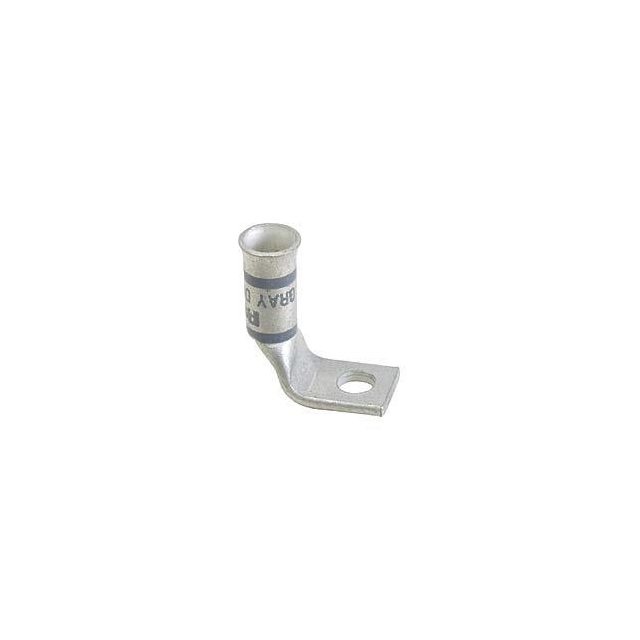

Panduit Corp LCAF400-58F-6	Single Stud Hole	Rectangular Tongue	Electro-Tin			6.6 mm	0.26 in		1.34 in	Non-Insulated	Free Hanging (In-Line) Right Angle	400 MCM (kcmil)	Brown	23.37 mm	0.92 in	0.625 Stud	Copper			Barrel Crimp		34.04 mm	1.7 in							43.18 mm

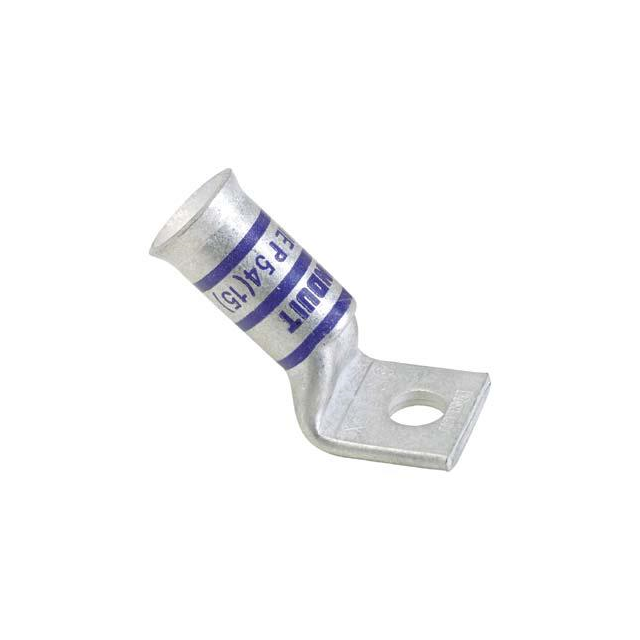

Panduit Corp LCAF400-12H-6	Single Stud Hole	Rectangular Tongue	Electro-Tin			6.6 mm	0.26 in		1.34 in	Non-Insulated	45° Angle Free Hanging (In-Line)	400 MCM (kcmil)	Brown	23.37 mm	0.92 in		Copper	0.53 in		Barrel Crimp	1/2 Stud	34.04 mm	1.7 in		13.46 mm					43.18 mm

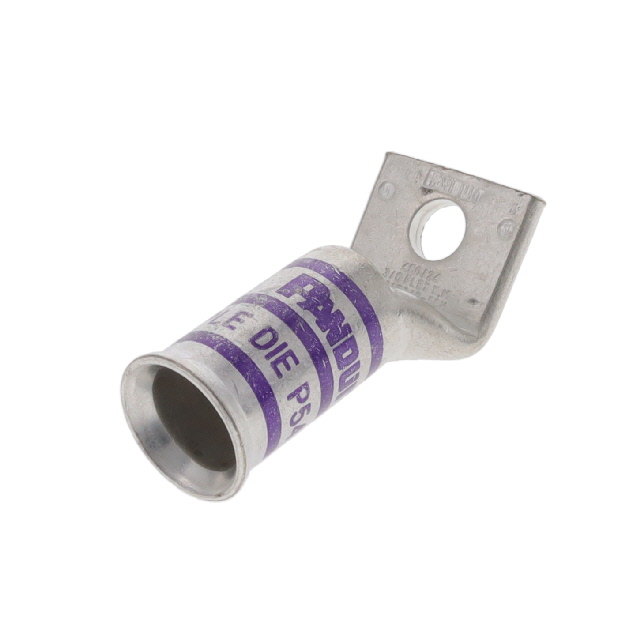

Panduit Corp LCAF3/0-56H-X	Single Stud Hole	Rectangular Tongue	Electro-Tin			3.56 mm	0.14 "		0.81 in	Non-Insulated	45° Angle Free Hanging (In-Line)		Purple	14.48 mm	0.57 "	0.3125 Stud	Copper	0.34 in		Barrel Crimp		20.57 mm	26.92 mm	1.06 in	8.64 mm

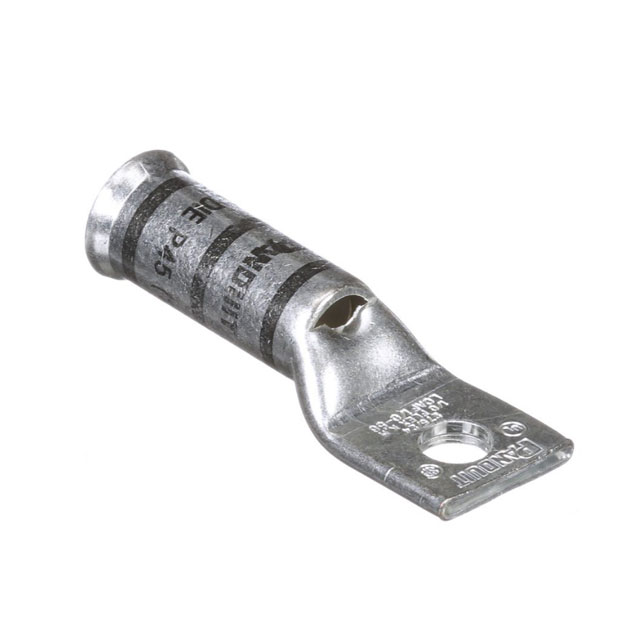

Panduit Corp LCAF1/0-56-X	Single Stud Hole	Rectangular Tongue	Electro-Tin			3.3 mm	0.13 in		0.67 in	Non-Insulated	Free Hanging (In-Line)	44 AWG	Black	11.43 mm	0.45 in	0.3125 Stud	Copper	0.34 in		Barrel Crimp		17.02 mm	21.59 mm	0.85 in	8.64 mm
