Ksc0Pf0 Series Series

Sealed Tact Switch for SMT

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

Sealed Tact Switch for SMT

Part	Contact Rating @ Voltage	Switch Travel	Illumination	Mechanical Life	Actuator Orientation	Actuator Type	Circuit	Ingress Protection	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Material	Mounting Type	Switch Function	Outline [y]	Outline [x]	Operating Force	Actuator Height off PCB, Vertical
Littelfuse/Commercial Vehicle Products KSC442J 70SH LFS PF	0.05 A	0.75 mm	Non-Illuminated	1000000 Cycles	Top Actuated	Standard	SPST-NO	IP67 - Dust Tight Waterproof	J Lead	85 °C	-40 °C	Silicone Rubber	Surface Mount	Off-Mom	6.2 mm	6.2 mm	408 gf	5.2 mm

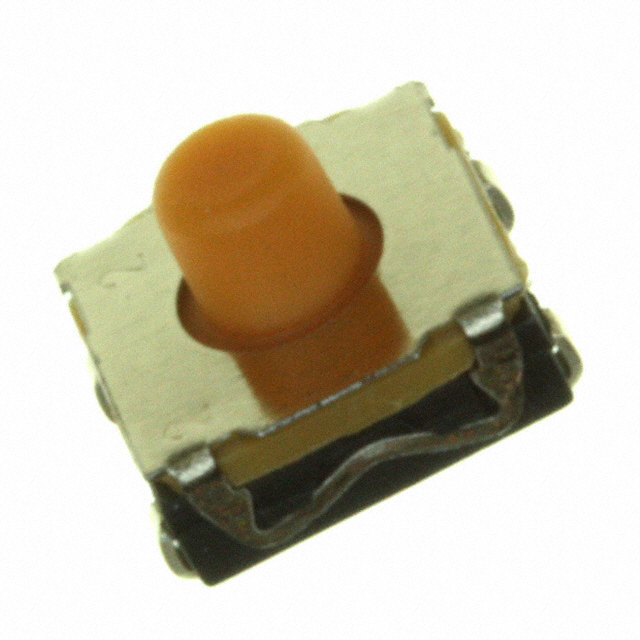

Littelfuse/Commercial Vehicle Products KSC422J 70SH LFS	0.05 A	0.5 mm	Non-Illuminated	1000000 Cycles	Top Actuated	Standard	SPST-NO	IP67 - Dust Tight Waterproof	J Lead	85 °C	-40 °C		Surface Mount	Off-Mom	6.2 mm	6.2 mm	170 gf	5.2 mm
Littelfuse/Commercial Vehicle Products KSC471JLFS	0.05 A		Non-Illuminated		Top Actuated	Standard	SPST-NO	IP67 - Dust Tight Waterproof	J Lead	85 °C	-40 °C		Surface Mount	Off-Mom	6.2 mm	6.2 mm		5.2 mm
Littelfuse/Commercial Vehicle Products KSC422G 70SH LFS	0.05 A	0.5 mm	Non-Illuminated	1000000 Cycles	Top Actuated	Standard	SPST-NO	IP67 - Dust Tight Waterproof	Gull Wing	85 °C	-40 °C		Surface Mount	Off-Mom	6.2 mm	6.2 mm	170 gf	5.2 mm
Littelfuse/Commercial Vehicle Products KSC422J 70SH LFS PF	0.05 A	0.5 mm	Non-Illuminated	1000000 Cycles	Top Actuated	Standard	SPST-NO	IP67 - Dust Tight Waterproof	J Lead	85 °C	-40 °C	Silicone Rubber	Surface Mount	Off-Mom	6.2 mm	6.2 mm	173 gf	5.2 mm
Littelfuse/Commercial Vehicle Products KSC441G 70SH LFS PF	0.05 A	0.75 mm	Non-Illuminated	300000 Cycles	Top Actuated	Standard	SPST-NO	IP67 - Dust Tight Waterproof	Gull Wing	85 °C	-40 °C	Silicone Rubber	Surface Mount	Off-Mom	6.2 mm	6.2 mm	408 gf	5.2 mm
Littelfuse/Commercial Vehicle Products KSC471GLFS	0.05 A		Non-Illuminated		Top Actuated	Standard	SPST-NO	IP67 - Dust Tight Waterproof	Gull Wing	85 °C	-40 °C		Surface Mount	Off-Mom	6.2 mm	6.2 mm		5.2 mm
Littelfuse/Commercial Vehicle Products KSC461G 70SH LFS PF	0.05 A	1 mm	Non-Illuminated	300000 Cycles	Top Actuated	Standard	SPST-NO	IP67 - Dust Tight Waterproof	Gull Wing	85 °C	-40 °C	Silicone Rubber	Surface Mount	Off-Mom	6.2 mm	6.2 mm	637 gf	5.2 mm
Littelfuse/Commercial Vehicle Products KSC471G 70SH LFS PF	0.05 A	0.7 mm	Non-Illuminated	300000 Cycles	Top Actuated	Standard	SPST-NO	IP67 - Dust Tight Waterproof	Gull Wing	85 °C	-40 °C	Silicone Rubber	Surface Mount	Off-Mom	6.2 mm	6.2 mm	408 gf	5.2 mm
Littelfuse/Commercial Vehicle Products KSC461J 70SH LFS PF	0.05 A	1 mm	Non-Illuminated	300000 Cycles	Top Actuated	Standard	SPST-NO	IP67 - Dust Tight Waterproof	J Lead	85 °C	-40 °C	Silicone Rubber	Surface Mount	Off-Mom	6.2 mm	6.2 mm	637 gf	5.2 mm

Catalog

Sealed Tact Switch for SMT

Key Features

• Extended Cage for easy potting

• Soft actuator 5,2mm high

• IP67

Description

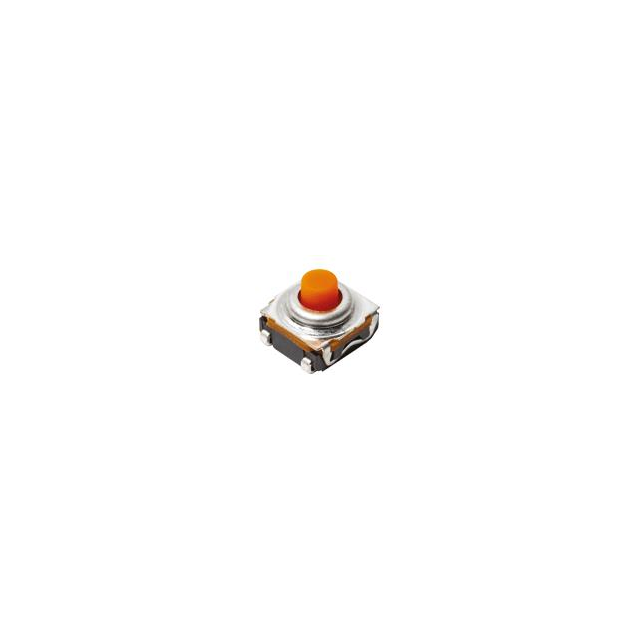

The KSC PF series is a unique combination of the a compact form factor (6.2 x 6.2 x 5.2mm) SMT soft actuator tact switch with the potting friendly extended cage perfectly suited for medical, automotive and industrial applications.
