TMA-5MS Series
Manufacturer: Amphenol CDI
Beta
⌘K

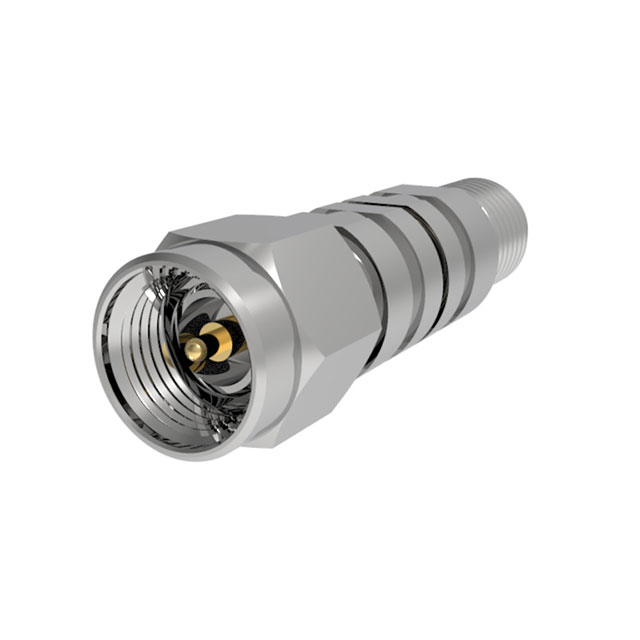

MW ADAPTER 3.5(M) TO 3.5(M)
| Part | Mounting Type | Adapter Type | Impedance | Center Gender | Adapter Series [Min] | Adapter Series [Max] | Style | Frequency - Max [Max] | Conversion Type | Convert From (Adapter End) | Convert To (Adapter End) | Body Material | Center Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol CDI | Free Hanging (In-Line) | Plug to Plug | 50 Ohms | Male to Male | 3.5 mm | 3.5 mm | Straight | 26.5 GHz | Same Series | 3.5mm Plug Male Pin | 3.5mm Plug Male Pin | ||
 Amphenol CDI | Free Hanging (In-Line) | Plug to Jack | 50 Ohms | 3.5 mm | 3.5 mm | Straight | 26.5 GHz | Same Series | 3.5mm Plug Male Pin | 3.5mm Jack Female Socket | Stainless Steel | Beryllium Copper | |
Amphenol CDI | Free Hanging (In-Line) | Plug to Jack | 50 Ohms | 3.5 mm | 3.5 mm | Straight | 26.5 GHz | Same Series | 3.5mm Plug Male Pin | 3.5mm Jack Female Socket | |||
Amphenol CDI | Free Hanging (In-Line) | Plug to Plug | 50 Ohms | Male to Male | 3.5 mm | 3.5 mm | Straight | 26.5 GHz | Same Series | 3.5mm Plug Male Pin | 3.5mm Plug Male Pin | Stainless Steel | Beryllium Copper |
