3N304 Series
Manufacturer: 3M Electronic Specialty
Beta
⌘K

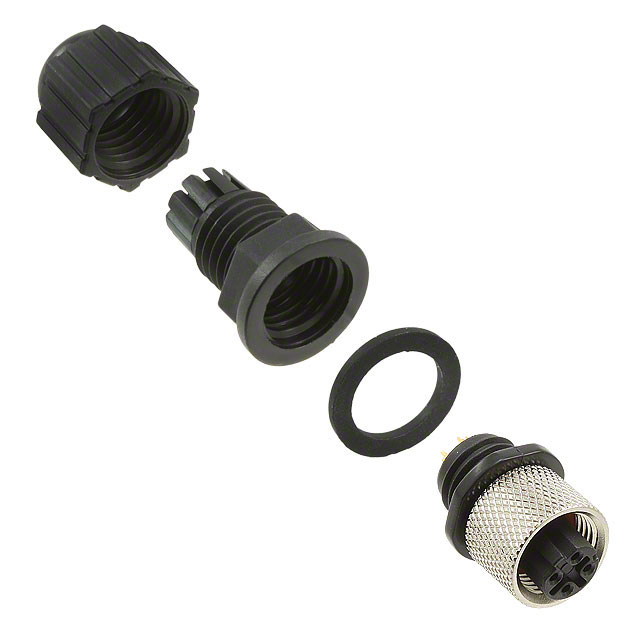

CONN RCPT FMALE 4P GOLD SLDR CUP
| Part | Connector Type | Color | Fastening Type | Orientation | Features | Shell Material | Contact Material | Current Rating (Amps) | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Insert Material | Ingress Protection | Operating Temperature [Max] | Operating Temperature [Min] | Backshell Material, Plating | Primary Material | Material Flammability Rating | Mounting Type | Shell Size - Insert | Contact Finish - Mating | Number of Positions | Applications | Shielding |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 3M Electronic Specialty | Receptacle Female Sockets | Silver | Threaded | D | Backshell Coupling Nut | Metal | Copper Alloy | 4 A | 8 µin | 0.203 µm | Thermoplastic | IP68 - Dust Tight Waterproof | 85 °C | -25 °C | Thermoplastic | Metal | UL94 V-0 | Free Hanging (In-Line) | M12-4 | Gold | 4 | Industrial | Shielded |
 3M Electronic Specialty | Receptacle Female Sockets | Silver | Threaded | A | Backshell Coupling Nut | Metal | Copper Alloy | 4 A | 8 µin | 0.203 µm | Thermoplastic | IP68 - Dust Tight Waterproof | 85 °C | -25 °C | Thermoplastic | Metal | UL94 V-0 | Free Hanging (In-Line) | M12-4 | Gold | 4 | Industrial | Shielded |
