UTS08 Series

Manufacturer: Amphenol Aerospace Operations

Catalog

CONN RCPT MALE 3POS GOLD SOLDER

Part	Connector Type	Voltage Rating	Shell Size - Insert (Maximum)	Shell Size - Insert (Minimum)	Ingress Protection Description	Ingress Protection IP Rating	Termination	Mounting Type	Current Rating	Fastening Type	Applications	Primary Material	Shell Material	Features	Shielding	Material Flammability Rating	Operating Temperature (Min)	Operating Temperature (Max)	Contact Material	Mounting Feature	Number of Positions	Orientation	Contact Finish Thickness - Mating	Contact Finish - Mating	Color	Insert Material	Shell Size - Insert Width	Shell Size - Insert Length	Shell Size - Insert

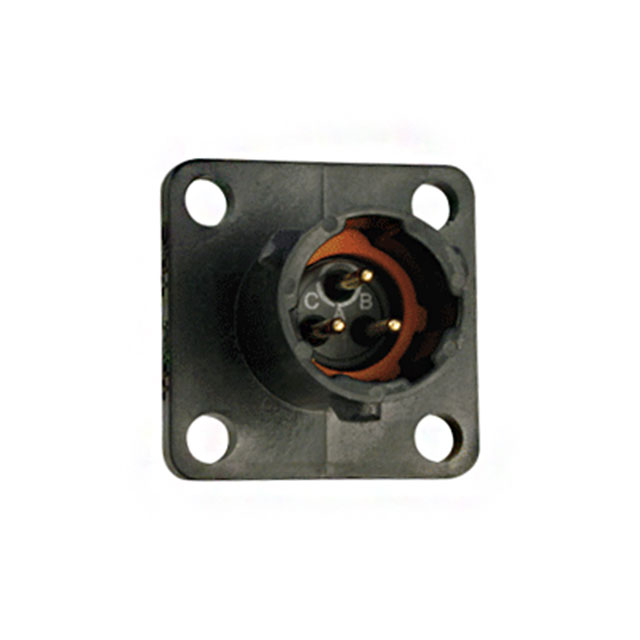

Amphenol Aerospace Operations UTS08D33P	Male Pins Receptacle	250 V	33	8	Dust Tight Water Resistant Waterproof	IP68 IP69K	Solder	Panel Mount Through Hole	7 A	Bayonet Lock	Energy Instrumentation Lighting Telecommunications	Plastic	Polybutylene Terephthalate (PBT)	UV Resistant	Unshielded	UL94 V-0	-40 °C	105 °C	Brass	Flange	3	N (Normal)	16 µin	Gold	Black	Polychloroprene

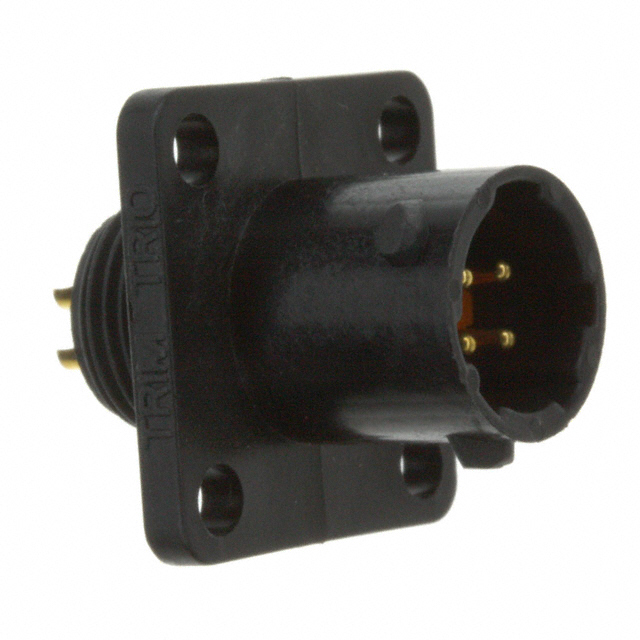

Amphenol Aerospace Operations UTS08E4P	Male Pins Receptacle	250 V			Dust Tight Water Resistant Waterproof	IP68 IP69K	Solder Cup	Panel Mount	7 A	Bayonet Lock	Energy Instrumentation Lighting Telecommunications	Plastic	Polybutylene Terephthalate (PBT)	UV Resistant	Unshielded	UL94 V-0	-40 °C	105 °C	Brass	Flange	4	N (Normal)	16 µin	Gold	Black	Polychloroprene	4 mm	8 mm

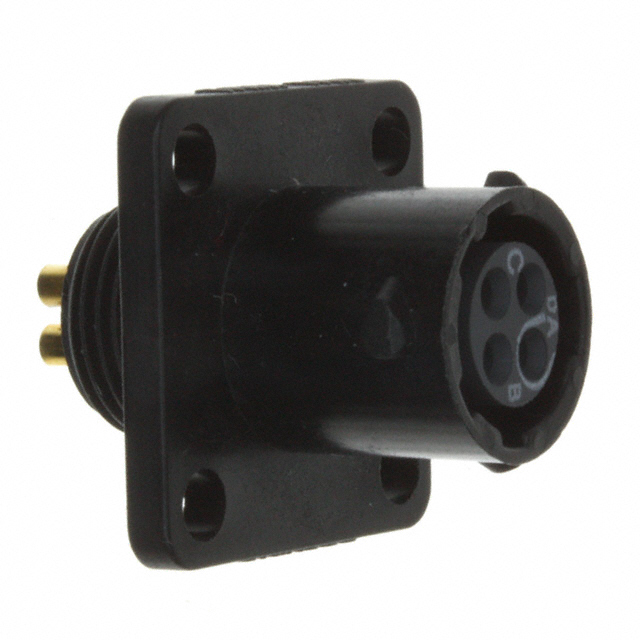

Amphenol Aerospace Operations UTS08E4S	Female Sockets Receptacle	250 V			Dust Tight Water Resistant Waterproof	IP68 IP69K	Solder Cup	Panel Mount	7 A	Bayonet Lock	Energy Instrumentation Lighting Telecommunications	Plastic	Polybutylene Terephthalate (PBT)	UV Resistant	Unshielded	UL94 V-0	-40 °C	105 °C	Brass	Flange	4	N (Normal)	16 µin	Gold	Black	Polychloroprene	4 mm	8 mm

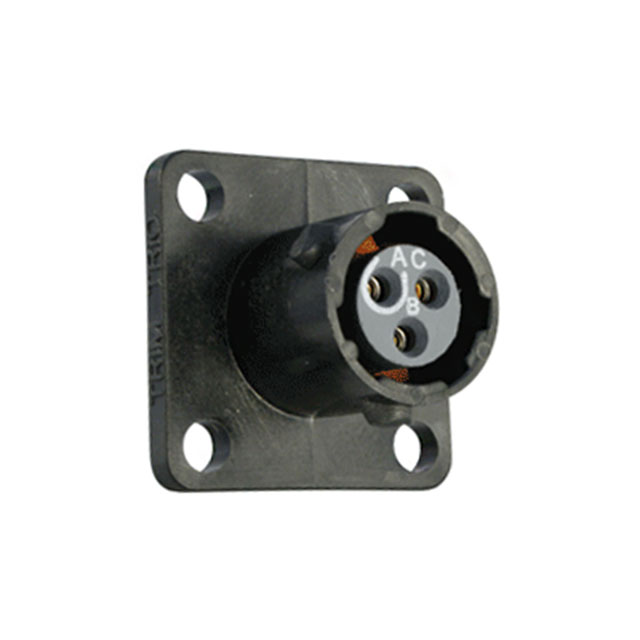

Amphenol Aerospace Operations UTS08D98S	Female Sockets Receptacle	250 V	98	8	Dust Tight Water Resistant Waterproof	IP68 IP69K	Solder	Panel Mount Through Hole	7 A	Bayonet Lock	Energy Instrumentation Lighting Telecommunications	Plastic	Polybutylene Terephthalate (PBT)	UV Resistant	Unshielded	UL94 V-0	-40 °C	105 °C	Brass	Flange	3	N (Normal)	16 µin	Gold	Black	Polychloroprene

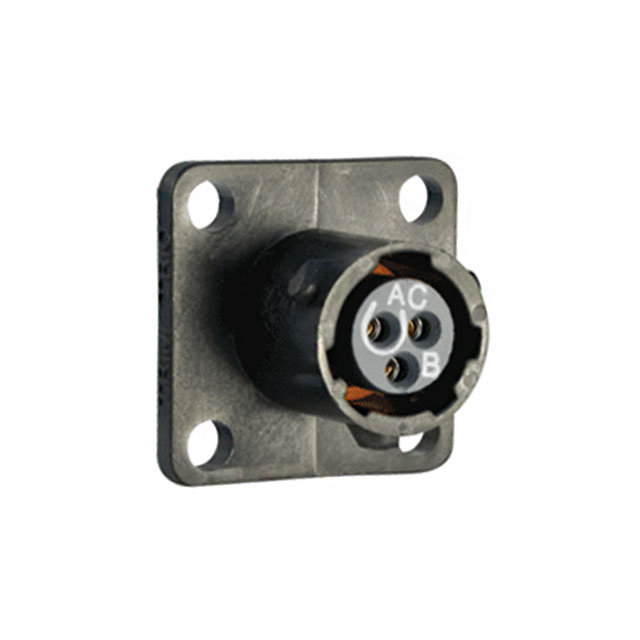

Amphenol Aerospace Operations UTS08E3S	Female Sockets Receptacle	250 V			Dust Tight Water Resistant Waterproof	IP68 IP69K	Solder Cup	Panel Mount	7 A	Bayonet Lock	Energy Instrumentation Lighting Telecommunications	Plastic	Polybutylene Terephthalate (PBT)	UV Resistant	Unshielded	UL94 V-0	-40 °C	105 °C	Brass	Flange	3	N (Normal)	16 µin	Gold	Black	Polychloroprene	3 mm	8 mm

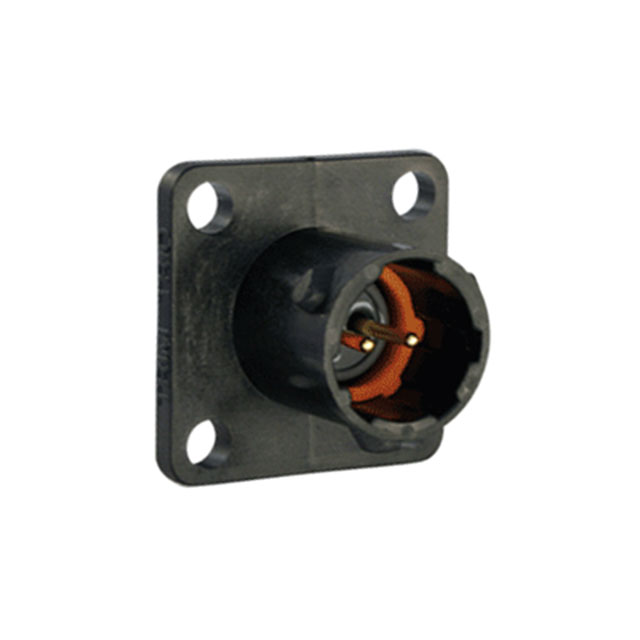

Amphenol Aerospace Operations UTS08E2P	Male Pins Receptacle	250 V			Dust Tight Water Resistant Waterproof	IP68 IP69K	Solder Cup	Panel Mount	7 A	Bayonet Lock	Energy Instrumentation Lighting Telecommunications	Plastic	Polybutylene Terephthalate (PBT)	UV Resistant	Unshielded	UL94 V-0	-40 °C	105 °C	Brass	Flange	2	N (Normal)	16 µin	Gold	Black	Polychloroprene	2 mm	8 mm
Amphenol Aerospace Operations UTS08D2S	Female Sockets Receptacle	250 V			Dust Tight Water Resistant Waterproof	IP68 IP69K	Solder	Panel Mount Through Hole	7 A	Bayonet Lock	Energy Instrumentation Lighting Telecommunications	Plastic	Polybutylene Terephthalate (PBT)	UV Resistant	Unshielded	UL94 V-0	-40 °C	105 °C	Brass	Flange	2	N (Normal)	16 µin	Gold	Black	Polychloroprene	2 mm	8 mm
Amphenol Aerospace Operations UTS08D3P	Male Pins Receptacle	250 V			Dust Tight Water Resistant Waterproof	IP68 IP69K	Solder	Panel Mount Through Hole	7 A	Bayonet Lock	Energy Instrumentation Lighting Telecommunications	Plastic	Polybutylene Terephthalate (PBT)	UV Resistant	Unshielded	UL94 V-0	-40 °C	105 °C	Brass	Flange	3	N (Normal)	16 µin	Gold	Black	Polychloroprene	3 mm	8 mm

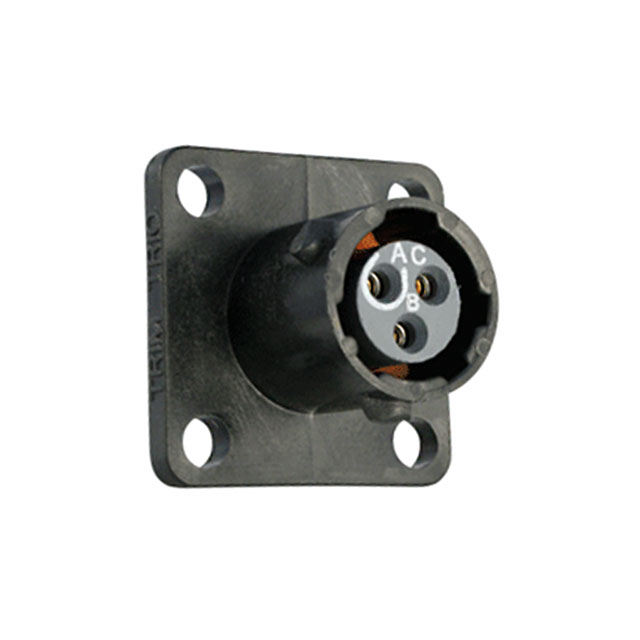

Amphenol Aerospace Operations UTS08E3AS	Female Sockets Receptacle	250 V			Dust Tight Water Resistant Waterproof	IP68 IP69K	Solder Cup	Panel Mount	7 A	Bayonet Lock	Energy Instrumentation Lighting Telecommunications	Plastic	Polybutylene Terephthalate (PBT)	UV Resistant	Unshielded	UL94 V-0	-40 °C	105 °C	Brass	Flange	3	N (Normal)	16 µin	Gold	Black	Polychloroprene			8-3A

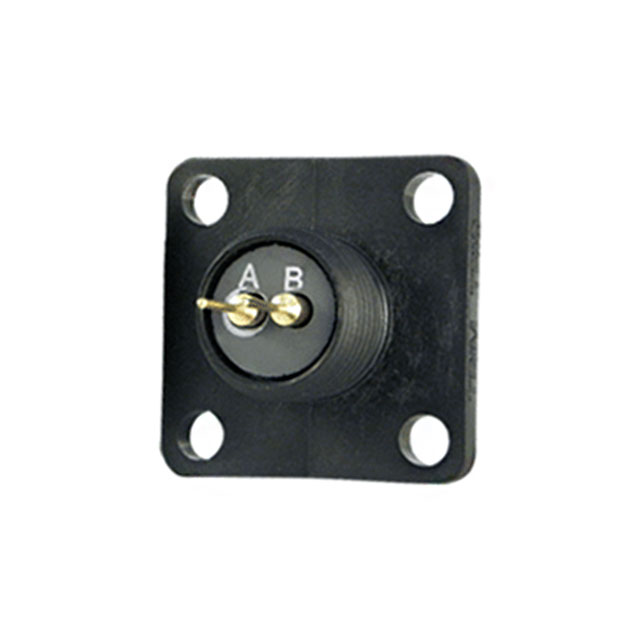

Amphenol Aerospace Operations UTS08D2P	Male Pins Receptacle	250 V			Dust Tight Water Resistant Waterproof	IP68 IP69K	Solder	Panel Mount Through Hole	7 A	Bayonet Lock	Energy Instrumentation Lighting Telecommunications	Plastic	Polybutylene Terephthalate (PBT)	UV Resistant	Unshielded	UL94 V-0	-40 °C	105 °C	Brass	Flange	2	N (Normal)	16 µin	Gold	Black	Polychloroprene	2 mm	8 mm
