TPX Series

Catalog

SIGNAL CONDITIONING 1008 698-960MHZ 1452-2170/2496-5850

Part	Package / Case	Return Loss (Low Band / High Band) [custom]	Return Loss (Low Band / High Band) [custom]	Mounting Type	Low Band Attenuation (min / max dB) [Min]	Low Band Attenuation (min / max dB) [Max]	Type	High Band Attenuation (min / max dB) [Min]	High Band Attenuation (min / max dB) [Max]	Frequency Bands (Low / High) [Min] [custom]	Frequency Bands (Low / High) [Max] [custom]	Frequency Bands (Low / High) [Max] [custom]	Frequency Bands (Low / High) [Min] [custom]

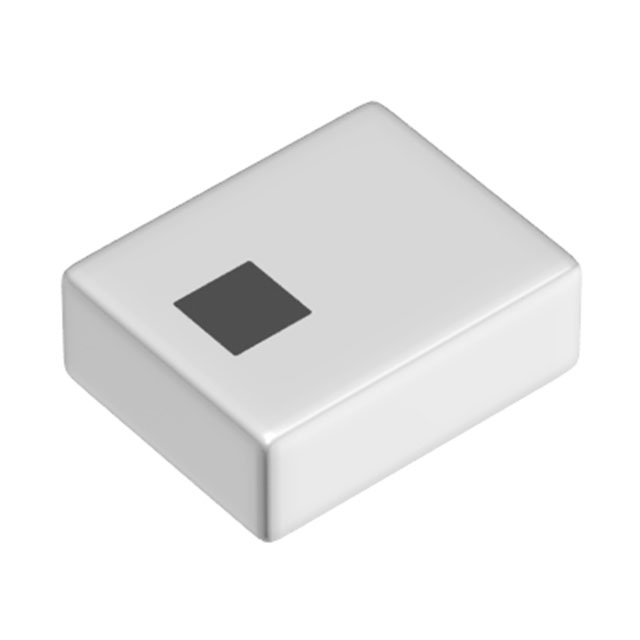

TDK Corporation TPX252690MT-7029A1	1008 (2520 Metric) 9 PC Pad	9.54 dB	9.54 dB	Surface Mount	20 dB	43 dB	Triplexer	30 dB	39 dB	698 MHz	960 MHz	5.85 GHz	2.496 GHz
