MX34003N Series
Manufacturer: JAE Electronics
Beta
⌘K

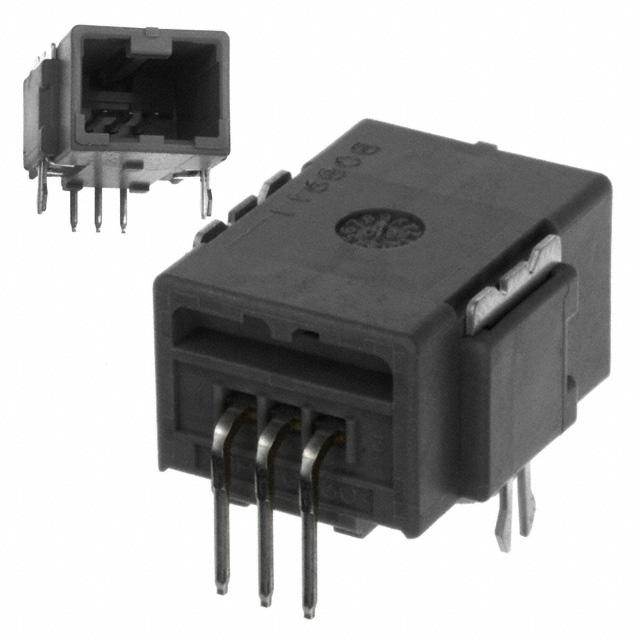

CONN HEADER R/A 3POS 2.2MM
| Part | Applications | Connector Type | Mounting Type | Shrouding | Operating Temperature [Max] | Operating Temperature [Min] | Style | Pitch - Mating | Pitch - Mating | Features | Current Rating (Amps) | Insulation Height | Insulation Height | Fastening Type | Number of Rows | Contact Finish - Post | Insulation Material | Termination | Contact Type | Number of Positions Loaded | Contact Length - Mating | Contact Length - Mating | Contact Material | Insulation Color | Contact Length - Post [x] | Contact Length - Post [x] | Contact Shape |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JAE Electronics | Automotive | Header | Right Angle Through Hole | Shrouded - 4 Wall | 85 °C | -40 C | Board to Cable/Wire | 0.087 in | 2.2 mm | Board Lock | 3 A | 10.7 mm | 0.421 " | Locking Ramp | 1 | Tin | Glass Filled Syndiotactic Polystyrene (SPS) | Solder | Male Pin | All | 0.303 in | 7.7 mm | Brass | Gray | 0.126 " | 3.2 mm | Square |
