CMT-1604 Series
Manufacturer: Same Sky (Formerly CUI Devices)
Beta
⌘K

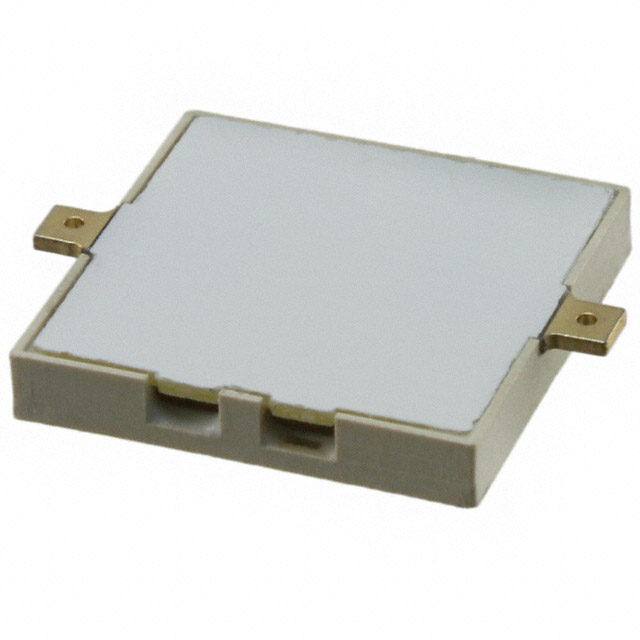

BUZZER PIEZO 3V 16X16MM SMD
| Part | Port Location | Termination | Mounting Type | Sound Pressure Level (SPL) | Input Type | Voltage Range [Max] | Operating Mode | Operating Temperature [Max] | Operating Temperature [Min] | Current - Supply | Driver Circuitry | Frequency | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Voltage - Rated | Technology |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Same Sky (Formerly CUI Devices) | Side | Solder Pads | Surface Mount | 81 dB | Peak-Peak Signal | 25 VDC | Single Tone | 120 °C | -40 C | 5 mA | Externally Driven Transducer | 4 kHz | 16 mm | 0.63 in | 16 mm | 0.63 " | 3 VDC | Piezo |
Same Sky (Formerly CUI Devices) | Side | Solder Pads | Surface Mount | 81 dB | Peak-Peak Signal | 25 VDC | Single Tone | 120 °C | -40 C | 5 mA | Externally Driven Transducer | 4 kHz | 16 mm | 0.63 in | 16 mm | 0.63 " | 3 VDC | Piezo |
