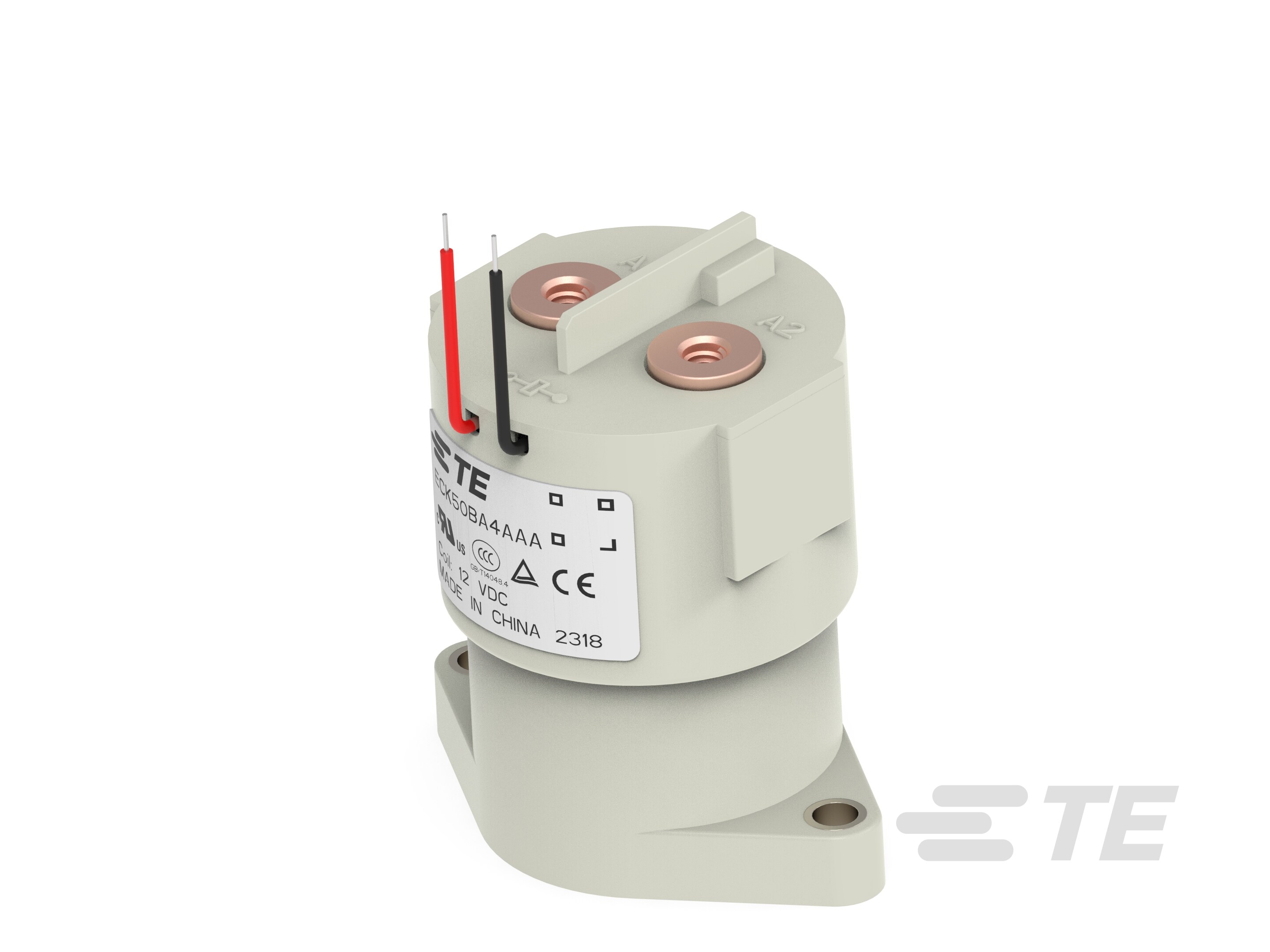

ECK50B Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
DC CONTACTOR, SPST-NO-DM, 12VDC, 50A ROHS COMPLIANT: YES
| Part | Coil Current | Coil Resistance | Release Time | Coil Power | Operate Time | Mounting Type | Coil Voltage | Must Release Voltage | Switching Voltage [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Must Operate Voltage | Features | Termination Style | Contact Rating (Current) | Contact Form |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 462 mA | 25.974 Ohms | 10 ms | 5.5 W | 30 ms | Chassis Mount | 12 VDC | 1.2 VDC | 1000 VDC | 85 °C | -40 C | 9 VDC | Sealed - Hermetically | Stud Wire Leads | 50 A | SPST-NO (DM) (1 Form X) |
