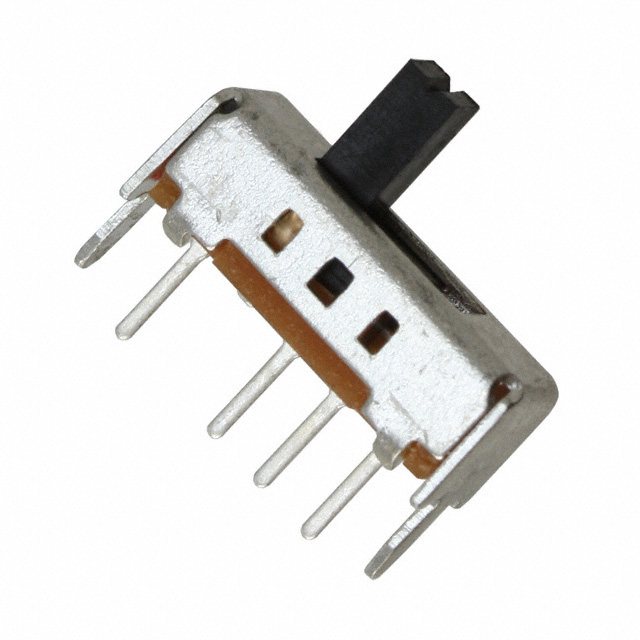

SS-13D Series
Manufacturer: LITTELFUSE
Beta
⌘K
SWITCH SLIDE SP3T 300MA 30V
| Part | Operating Force [Max] | Operating Force [Min] | Actuator Material | Electrical Life | Switch Travel | Circuit | Contact Finish | Current Rating (Amps) | Voltage Rating - DC | Actuator Type | Operating Temperature [Min] | Operating Temperature [Max] | Contact Timing | Switch Function | Actuator Length [x] | Mounting Type | Contact Material | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LITTELFUSE | 250 gf | 200 gf | Polyamide (PA) Nylon | 10000 Cycles | 2 mm | SP3T | Silver | 300 mA | 30 V | Standard | -20 ░C | 70 °C | Not Specified | On-On-On | 4 mm | Through Hole | Copper Alloy | PC Pin |
