CSI-UFFR Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

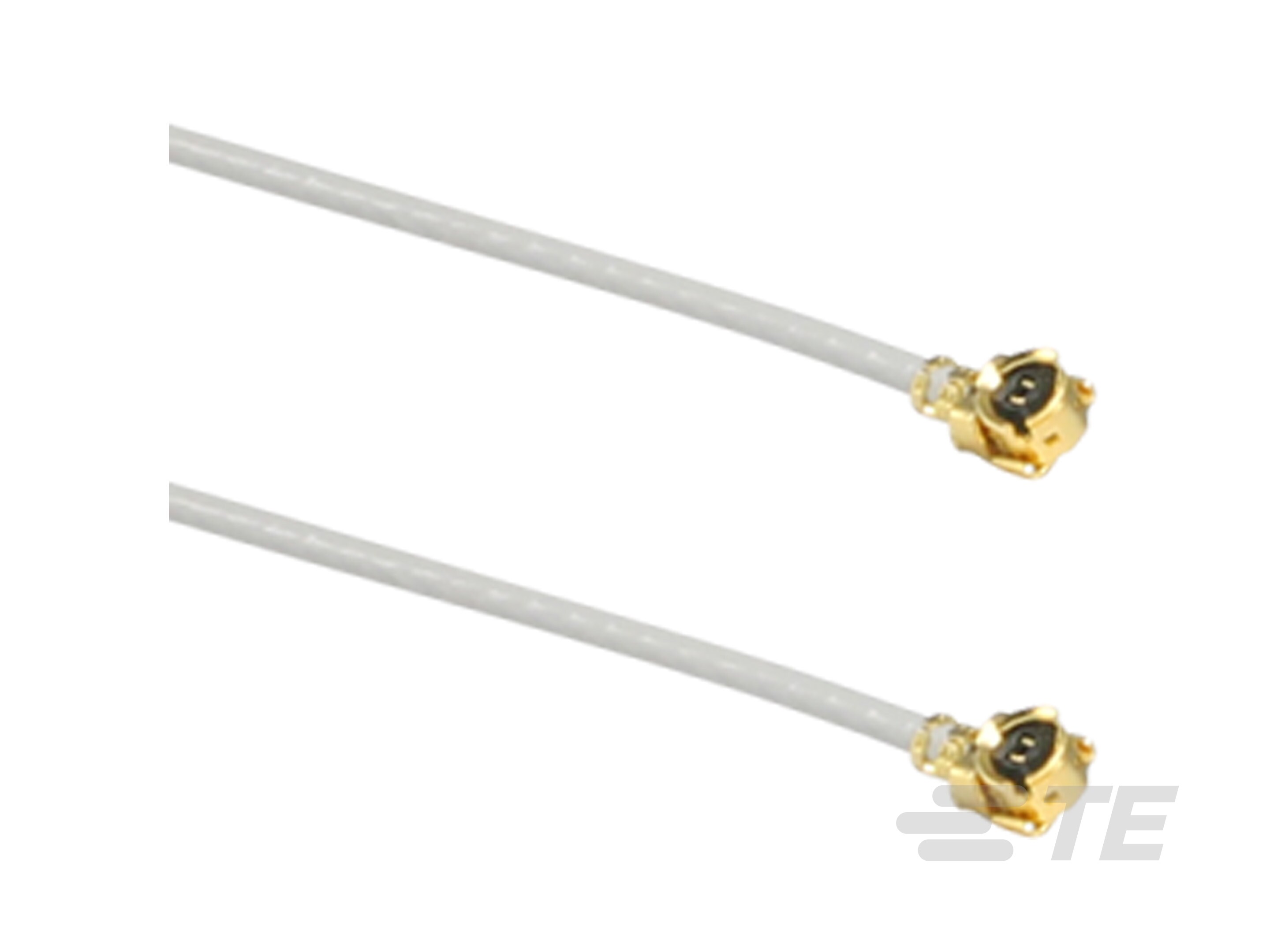

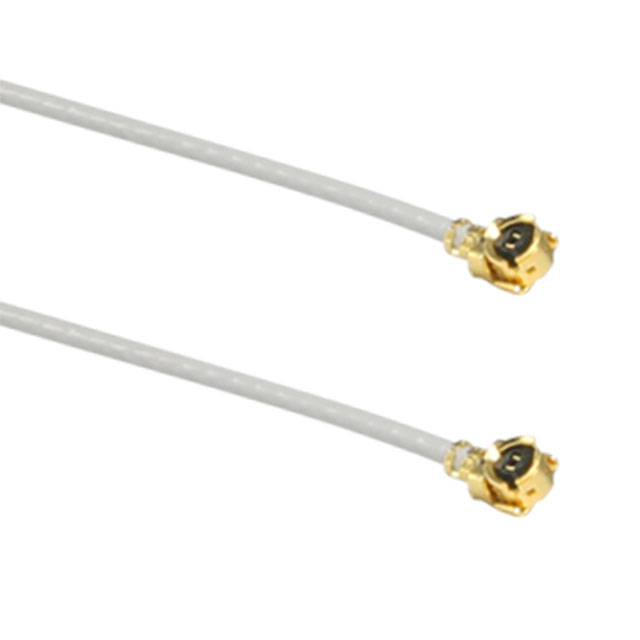

U.FL/MHF1 TO U.FL/MHF1 200MM 1.13 OD
| Part | Overall Impedance | 2nd Connector | 1st Contact Gender | Cable Type | Cable Type [diameter] | 2nd Connector Mounting Type | Frequency - Max [Max] | 1st Connector Mounting Type | Color | Length | Length | 2nd Contact Gender | Style | 1st Connector |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 50 Ohms | U.FL (UMCC) Plug Right Angle | Female | Coaxial Cable | 1.13 mm | Free Hanging (In-Line) | 3 GHz | Free Hanging (In-Line) | Gray | 200 mm | 7.874 in | Female | U.FL (UMCC) to U.FL (UMCC) | U.FL (UMCC) Plug Right Angle |
 TE Connectivity AMP Connectors | 50 Ohms | U.FL (UMCC) Plug Right Angle | Female | Coaxial Cable | 1.13 mm | Free Hanging (In-Line) | 3 GHz | Free Hanging (In-Line) | Gray | 100 mm | 3.937 in | Female | U.FL (UMCC) to U.FL (UMCC) | U.FL (UMCC) Plug Right Angle |
TE Connectivity AMP Connectors | 50 Ohms | U.FL (UMCC) Plug Right Angle | Female | Coaxial Cable | 1.13 mm | Free Hanging (In-Line) | 3 GHz | Free Hanging (In-Line) | Gray | 300 mm | 11.811 in | Female | U.FL (UMCC) to U.FL (UMCC) | U.FL (UMCC) Plug Right Angle |
