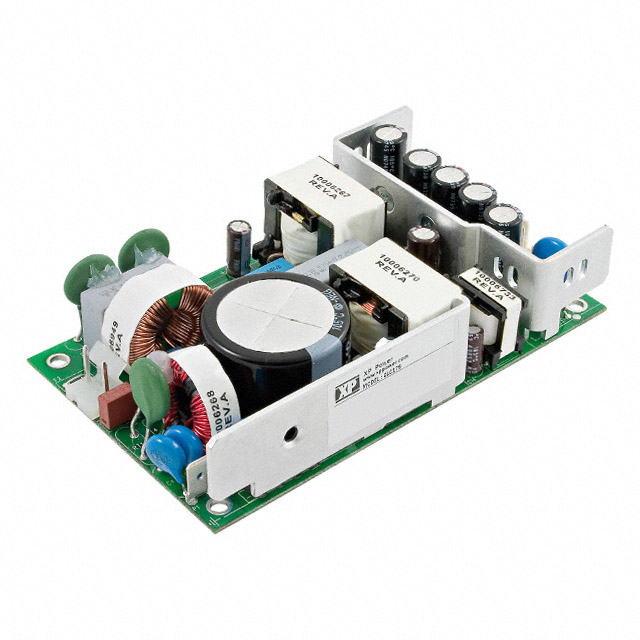

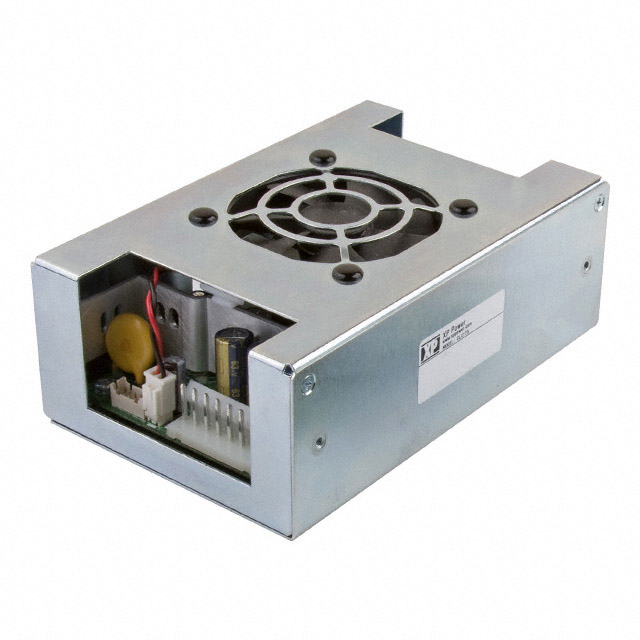

CLC175 Series
Manufacturer: XP Power
Beta
⌘K
AC/DC OPEN FRAME POWER SUPPLY (PSU), MEDICAL, 1 OUTPUT, 175W @ 10CFM, 85V AC TO 264V AC
| Part | Minimum Load Required | Voltage - Isolation | Applications | Power (Watts) | Power (Watts) | Standard Number | Operating Temperature [Max] | Operating Temperature [Min] | Efficiency | Features | Mounting Type | Current - Output 1 | Number of Outputs | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Type | Voltage - Output 1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 XP Power | 3000 V | ITE (Commercial) Medical | 125 W | 55 W | 62368-1 | 70 °C | 0 °C | 87 % | Adjustable Output DC Input Capable Remote On/Off Remote Sense Standby Output Universal Input | Chassis Mount | 6.9 A | 1 | 50.8 mm | 1.25 in | 2 in | 101.6 mm | 31.8 mm | 4 " | Enclosed | 24 V | |
 XP Power | 3000 V | ITE (Commercial) Medical | 125 W | 55 W | 62368-1 | 70 °C | 0 °C | 87 % | Adjustable Output DC Input Capable Remote On/Off Remote Sense Standby Output Universal Input | Chassis Mount | 13.9 A | 1 | 50.8 mm | 1.25 in | 2 in | 101.6 mm | 31.8 mm | 4 " | Enclosed | 12 V | |
XP Power | 3000 V | ITE (Commercial) Medical | 125 W | 55 W | 62368-1 | 70 °C | 0 °C | 87 % | Adjustable Output DC Input Capable Remote On/Off Remote Sense Standby Output Universal Input | Chassis Mount | 3.5 A | 1 | 50.8 mm | 1.25 in | 2 in | 101.6 mm | 31.8 mm | 4 " | Enclosed | 48 V | |
XP Power | 3000 V | ITE (Commercial) | 125 W | 55 W | 62368-1 | 70 °C | 0 °C | 87 % | Adjustable Output DC Input Capable Remote On/Off Remote Sense Standby Output Universal Input | Chassis Mount | 13.9 A | 1 | 50.8 mm | 1.25 in | 2 in | 101.6 mm | 31.8 mm | 4 " | Enclosed | 12 V | |
 XP Power | 3000 V | ITE (Commercial) Medical | 125 W | 55 W | 62368-1 | 70 °C | 0 °C | 87 % | Adjustable Output DC Input Capable Remote On/Off Remote Sense Standby Output Universal Input | Chassis Mount | 6.9 A | 1 | 50.8 mm | 1.25 in | 2 in | 101.6 mm | 31.8 mm | 4 " | Open Frame | 24 V | |
 XP Power | 3000 V | ITE (Commercial) | 125 W | 55 W | 62368-1 | 70 °C | 0 °C | 87 % | Adjustable Output DC Input Capable Remote On/Off Remote Sense Standby Output Universal Input | Chassis Mount | 6.9 A | 1 | 50.8 mm | 1.25 in | 2 in | 101.6 mm | 31.8 mm | 4 " | Enclosed | 24 V | |
XP Power | 3000 V | ITE (Commercial) | 125 W | 55 W | 62368-1 | 70 °C | 0 °C | 87 % | Adjustable Output DC Input Capable Remote On/Off Remote Sense Standby Output Universal Input | Chassis Mount | 6.9 A | 1 | 50.8 mm | 1.25 in | 2 in | 101.6 mm | 31.8 mm | 4 " | Open Frame | 24 V | |
XP Power | 3000 V | ITE (Commercial) | 125 W | 55 W | 62368-1 | 70 °C | 0 °C | 87 % | Adjustable Output DC Input Capable Remote On/Off Remote Sense Standby Output Universal Input | Chassis Mount | 13.9 A | 1 | 50.8 mm | 1.25 in | 2 in | 101.6 mm | 31.8 mm | 4 " | Open Frame | 12 V | |
XP Power | 3000 V | ITE (Commercial) | 125 W | 55 W | 62368-1 | 70 °C | 0 °C | 87 % | Adjustable Output DC Input Capable Remote On/Off Remote Sense Standby Output Universal Input | Chassis Mount | 3.5 A | 1 | 50.8 mm | 1.25 in | 2 in | 101.6 mm | 31.8 mm | 4 " | Open Frame | 48 V | |
XP Power | 3000 V | ITE (Commercial) Medical | 125 W | 55 W | 62368-1 | 70 °C | 0 °C | 87 % | Adjustable Output DC Input Capable Remote On/Off Remote Sense Standby Output Universal Input | Chassis Mount | 3.5 A | 1 | 50.8 mm | 1.25 in | 2 in | 101.6 mm | 31.8 mm | 4 " | Open Frame | 48 V |
