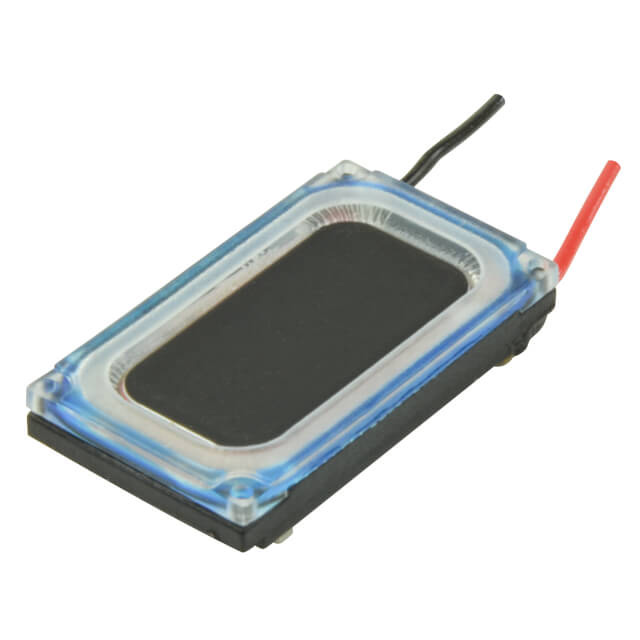

CMS-16093 Series

Manufacturer: Same Sky (Formerly CUI Devices)

Catalog

SPEAKER 8OHM 700MW TOP PORT 91DB

Part	Technology	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Termination	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Efficiency - dBA	Type	Frequency - Self Resonant	Material - Magnet	Shape	Efficiency - Testing	Impedance	Power - Max [Max]	Power - Rated	Ingress Protection	Efficiency - Type	Material - Cone	Port Location	Frequency Range [Max]	Frequency Range [Min]	Operating Temperature [Min]	Operating Temperature [Max]
Same Sky (Formerly CUI Devices) CMS-16093-078L100-67	Magnetic	0.354 in	9 mm	0.63 in	16 mm	Wire Leads	0.118 "	3 mm	91 dBA	General Purpose	550 Hz	Nd-Fe-B	Rectangular	10 cm 700 mW	8 Ohms	1 W	700 mW	IP67 - Dust Tight Waterproof	Sound Pressure Level (SPL)	Polyester Polyethylene Terephthalate (PET)	Top	20 kHz	100 Hz
Same Sky (Formerly CUI Devices) CMS-16093-078SP	Magnetic	0.354 in	9 mm	0.63 in	16 mm	Solder Pads	0.118 "	3 mm	91 dBA	General Purpose	550 Hz	Nd-Fe-B	Rectangular	10 cm 700 mW	8 Ohms	1 W	700 mW		Sound Pressure Level (SPL)	Polyester Polyethylene Terephthalate (PET)	Top	20 kHz	100 Hz
Same Sky (Formerly CUI Devices) CMS-16093-076L100A	Magnetic	0.354 in	9 mm	0.63 in	16 mm	Wire Leads with Connector	0.118 "	3 mm	90 dBA	General Purpose	600 Hz	Nd-Fe-B	Rectangular	10 cm 700 mW	6 Ohms	1 W	700 mW		Sound Pressure Level (SPL)	Polyester Polyethylene Terephthalate (PET)	Top	20 kHz	100 Hz
Same Sky (Formerly CUI Devices) CMS-16093-076L100A	Magnetic	0.354 in	9 mm	0.63 in	16 mm	Wire Leads with Connector	0.118 "	3 mm	90 dBA	General Purpose	600 Hz	Nd-Fe-B	Rectangular	10 cm 700 mW	6 Ohms	1 W	700 mW		Sound Pressure Level (SPL)	Polyester Polyethylene Terephthalate (PET)	Top	20 kHz	100 Hz	-20 ░C	70 °C
Same Sky (Formerly CUI Devices) CMS-16093-076L100B	Magnetic	0.354 in	9 mm	0.63 in	16 mm	Wire Leads with Connector	0.118 "	3 mm	90 dBA	General Purpose	600 Hz	Nd-Fe-B	Rectangular	10 cm 700 mW	6 Ohms	1 W	700 mW		Sound Pressure Level (SPL)	Polyester Polyethylene Terephthalate (PET)	Top	20 kHz	100 Hz	-20 ░C	70 °C
Same Sky (Formerly CUI Devices) CMS-16093-078L100B-67	Magnetic	0.354 in	9 mm	0.63 in	16 mm	Wire Leads with Connector	0.118 "	3 mm	91 dBA	General Purpose	550 Hz	Nd-Fe-B	Rectangular	10 cm 700 mW	8 Ohms	1 W	700 mW	IP67 - Dust Tight Waterproof	Sound Pressure Level (SPL)	Polyester Polyethylene Terephthalate (PET)	Top	20 kHz	100 Hz	-20 ░C	50 °C
Same Sky (Formerly CUI Devices) CMS-16093-078L100A	Magnetic	0.354 in	9 mm	0.63 in	16 mm	Wire Leads with Connector	0.118 "	3 mm	91 dBA	General Purpose	550 Hz	Nd-Fe-B	Rectangular	10 cm 700 mW	8 Ohms	1 W	700 mW		Sound Pressure Level (SPL)	Polyester Polyethylene Terephthalate (PET)	Top	20 kHz	100 Hz	-20 ░C	50 °C
Same Sky (Formerly CUI Devices) CMS-16093-078L100A-67	Magnetic	0.354 in	9 mm	0.63 in	16 mm	Wire Leads with Connector	0.118 "	3 mm	91 dBA	General Purpose	550 Hz	Nd-Fe-B	Rectangular	10 cm 700 mW	8 Ohms	1 W	700 mW	IP67 - Dust Tight Waterproof	Sound Pressure Level (SPL)	Polyester Polyethylene Terephthalate (PET)	Top	20 kHz	100 Hz
Same Sky (Formerly CUI Devices) CMS-16093-076L100A-67	Magnetic	0.354 in	9 mm	0.63 in	16 mm	Wire Leads with Connector	0.118 "	3 mm	90 dBA	General Purpose	600 Hz	Nd-Fe-B	Rectangular	10 cm 700 mW	6 Ohms	1 W	700 mW	IP67 - Dust Tight Waterproof	Sound Pressure Level (SPL)	Polyester Polyethylene Terephthalate (PET)	Top	20 kHz	100 Hz
Same Sky (Formerly CUI Devices) CMS-16093-076SP	Magnetic	0.354 in	9 mm	0.63 in	16 mm	Solder Pads	0.118 "	3 mm	90 dBA	General Purpose	600 Hz	Nd-Fe-B	Rectangular	10 cm 700 mW	6 Ohms	1 W	700 mW		Sound Pressure Level (SPL)	Polyester Polyethylene Terephthalate (PET)	Top	20 kHz	100 Hz
