M6 Series

Catalog

CONN RING CIRC 6AWG #10 CRIMP

Part	Features	Mounting Type	Length - Overall [x]	Length - Overall [x]	Termination	Wire Gauge	Width - Outer Edges [x]	Width - Outer Edges [x]	Terminal Type	Insulation	Stud/Tab Size	Thickness	Thickness	Contact Finish	Width - Outer Edges [y]	Width - Outer Edges [y]	Contact Material	Length - Overall	Length - Overall

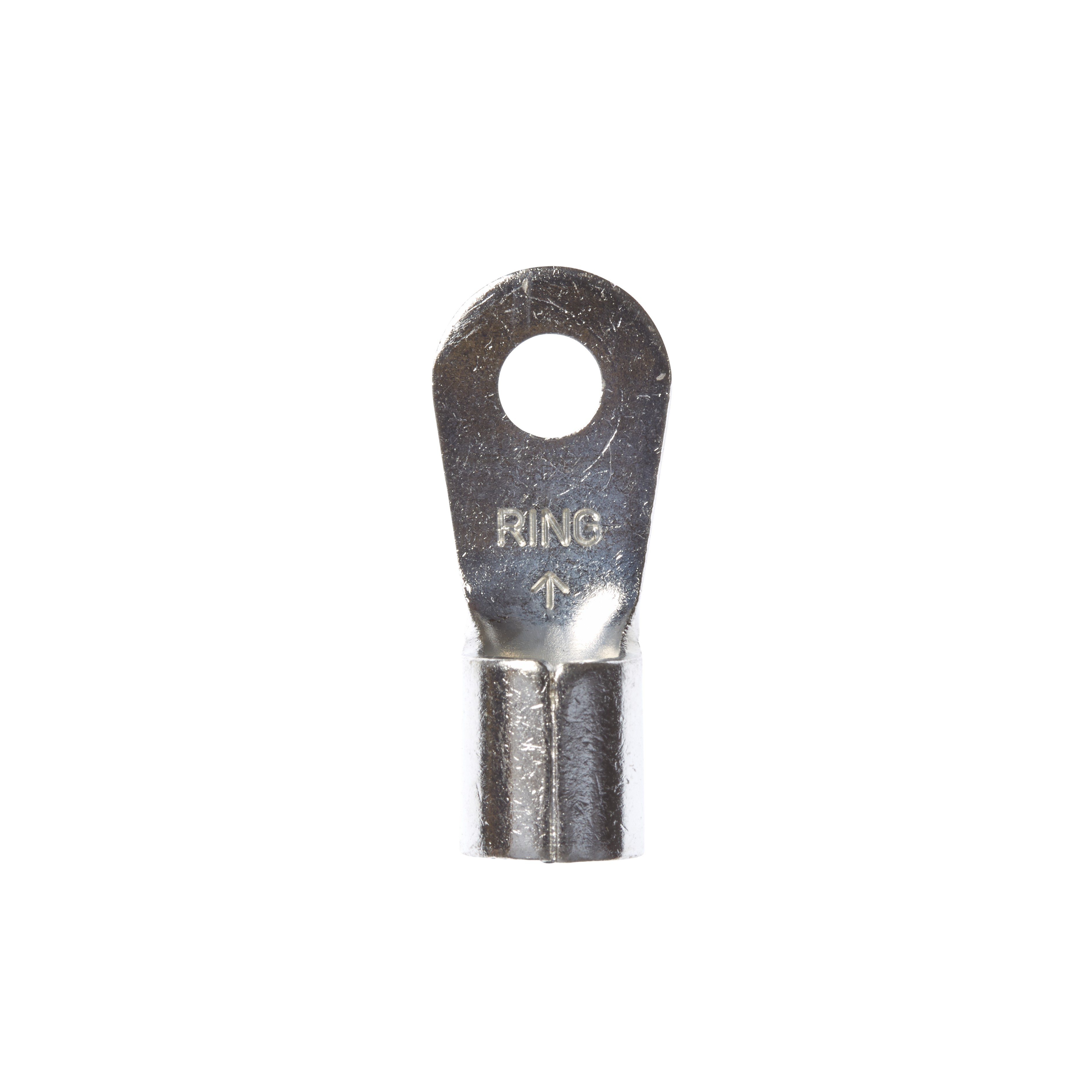

3M Electronic Specialty M6-10R/SK	Brazed Seam	Free Hanging (In-Line)	28.96 mm	1.14 in	Crimp	6 AWG	0.47 in	11.94 mm	Circular	Non-Insulated	10 Stud	50 mils	0.05 in

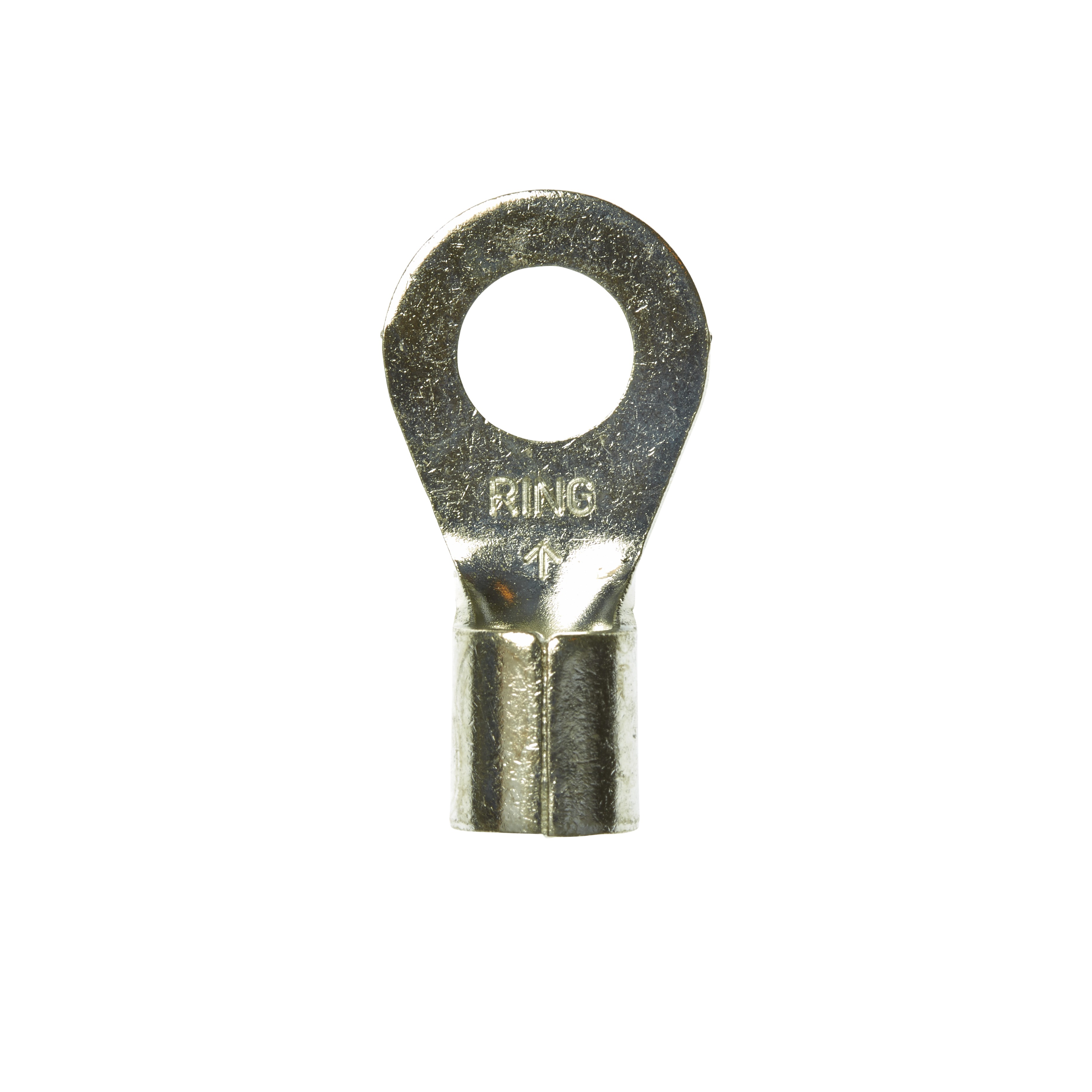

3M Electronic Specialty M6-516RX-BOTTLE	Brazed Seam	Free Hanging (In-Line)			Crimp	6 AWG			Circular	Non-Insulated	0.3125 Stud	50 mils	0.05 in	Tin	0.63 in	16 mm	Copper ETP	30.99 mm	1.22 in
3M Electronic Specialty M6-516RK	Brazed Seam	Free Hanging (In-Line)			Crimp	6 AWG			Circular	Non-Insulated	0.3125 Stud	50 mils	0.05 in		0.63 in	16 mm		30.99 mm	1.22 in
3M Electronic Specialty M6-10R/SX-BOTTLE	Brazed Seam	Free Hanging (In-Line)	28.96 mm	1.14 in	Crimp	6 AWG	0.47 in	11.94 mm	Circular	Non-Insulated	10 Stud	50 mils	0.05 in	Tin			Copper ETP
