1618241 Series
Manufacturer: TE Connectivity Aerospace, Defense and Marine
Beta
⌘K

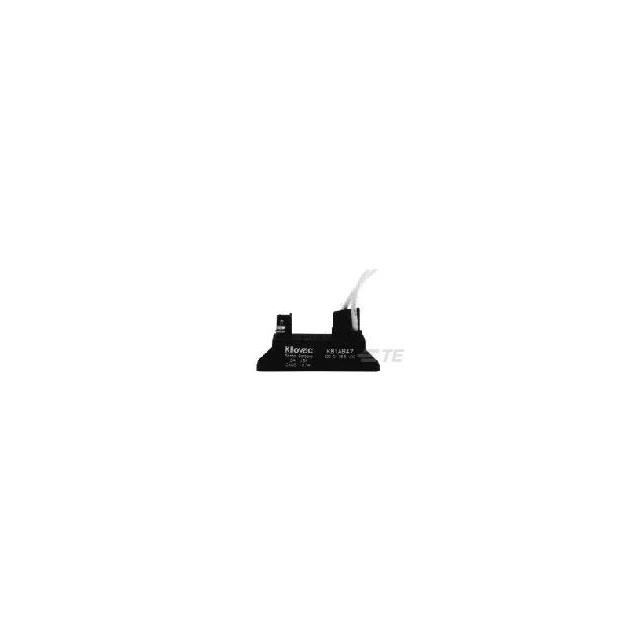

RELAY GEN PURPOSE SPST 30A 12V
| Part | Coil Resistance | Contact Form | Mounting Type | Coil Type | Must Operate Voltage | Release Time | Operate Time | Relay Type | Must Release Voltage | Operating Temperature [Max] | Operating Temperature [Min] | Termination Style | Contact Rating (Current) | Coil Current | Seal Rating | Switching Voltage [Max] | Coil Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Aerospace, Defense and Marine | 70 Ohms | SPST-NO (1 Form A) | Chassis Mount | Non Latching | 8 VDC | 10 ms | 10 ms | General Purpose | 0.5 VDC | 85 °C | -55 °C | Wire Leads | 30 A | 171.4 mA | Sealed - Vacuum | 10000 VDC | 12 VDC |
