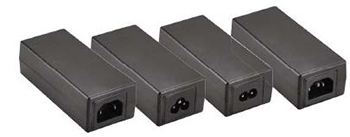

PEAD36B Series

Desktop Power Supply 19V 30 Watt

Manufacturer: TT Electronics/BI

Catalog

Desktop Power Supply 19V 30 Watt

Catalog

Desktop Power Supply 19V 30 Watt

Part	Efficiency	Applications	Form	Current - Output (Max) [Max]	Output Connector [x]	Output Connector [diameter]	Output Connector	Region Utilized	Voltage - Input [Max]	Voltage - Input [Min]	Input Connector	Operating Temperature [Min]	Operating Temperature [Max]	Input Type	No Load Power Consumption	Power (Watts)	Approval Agency	Cord Length	Cord Length	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Standard Number	Voltage - Output	Polarization
TT Electronics/BI PEAD36B-10-B2	Level VI	ITE (Commercial)	Desktop (Class I)	4 A	10 mm	2.1 mm 5.5 mm	Barrel Plug	International	264 VAC	90 VAC	IEC 320-C14	0 °C	60 °C	Cord (Sold Separately)	100 mW	20 W	CB CCC CE cULus FCC LPS TUV	47 in	1.2 m	100.1 mm	1.22 in	3.94 in	31 mm	1.77 in	45 mm	60950-1	5 V	Positive Center
TT Electronics/BI PEAD36B-12-B2	Level VI	ITE (Commercial)	Desktop (Class I)	3 A	10 mm	2.1 mm 5.5 mm	Barrel Plug	International	264 VAC	90 VAC	IEC 320-C14	0 °C	60 °C	Cord (Sold Separately)	100 mW	36 W	CB CCC CE cULus FCC LPS TUV	47 in	1.2 m	100.1 mm	1.22 in	3.94 in	31 mm	1.77 in	45 mm	60950-1	12 V	Positive Center
TT Electronics/BI PEAD36B-14-B2	Level VI	ITE (Commercial)	Desktop (Class I)	1.5 A	10 mm	2.1 mm 5.5 mm	Barrel Plug	International	264 VAC	90 VAC	IEC 320-C14	0 °C	60 °C	Cord (Sold Separately)	100 mW	36 W	CB CCC CE cULus FCC LPS TUV	47 in	1.2 m	100.1 mm	1.22 in	3.94 in	31 mm	1.77 in	45 mm	60950-1	24 V	Positive Center
TT Electronics/BI PEAD36B-13-B2	Level VI	ITE (Commercial)	Desktop (Class I)	2 A	10 mm	2.1 mm 5.5 mm	Barrel Plug	International	264 VAC	90 VAC	IEC 320-C14	0 °C	60 °C	Cord (Sold Separately)	100 mW	30 Watts	CB CCC CE cULus FCC LPS TUV	47 in	1.2 m	100.1 mm	1.22 in	3.94 in	31 mm	1.77 in	45 mm	60950-1	15 V	Positive Center
TT Electronics/BI PEAD36B-18-B2	Level VI	ITE (Commercial)	Desktop (Class I)	625 mA	10 mm	2.1 mm 5.5 mm	Barrel Plug	International	264 VAC	90 VAC	IEC 320-C14	0 °C	60 °C	Cord (Sold Separately)	100 mW	30 Watts	CB CCC CE cULus FCC LPS TUV	47 in	1.2 m	100.1 mm	1.22 in	3.94 in	31 mm	1.77 in	45 mm	60950-1	48 V	Positive Center
