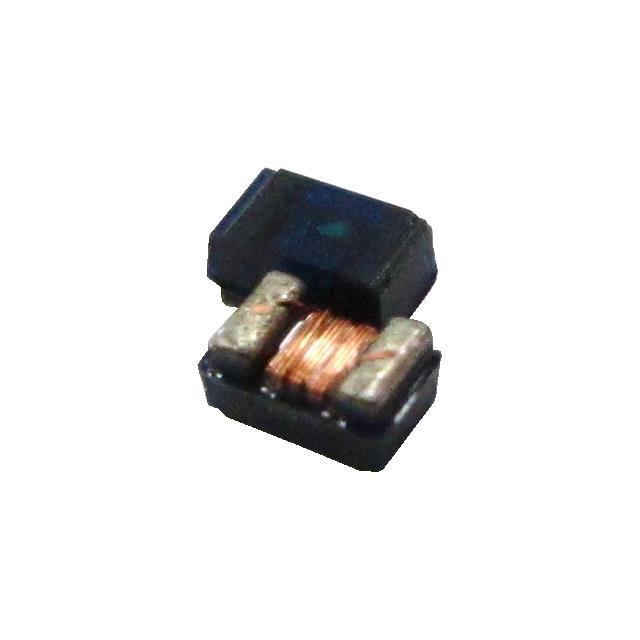

BWLD Series

Catalog

RF INDUCTORS - SMD CHILISIN RF INDUCTOR WIRE WOUND-LOW DCR

Part	Package / Case	Package / Case	Material - Core	Q @ Freq	Type	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Shielding	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Mounting Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	DC Resistance (DCR) [Max]	Inductance	Supplier Device Package	Current - Saturation (Isat)	Frequency - Self Resonant	Tolerance	Inductance Frequency - Test	DC Resistance (DCR)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Pulse Electronics BWLD003025228R2K00	1210	3225 Metric	Ferrite	20	Drum Core Wirewound	105 ░C	-25 °C	650 mA	Unshielded	0.087 in	2.2 mm	Surface Mount	0.098 in	2.99 mm	0.118 "	2.5 mm	395 mOhm	8.2 µH	1210	500 mA	24 MHz	10 %	2.5 MHz
Pulse Electronics BWLD001810101R0K00	Nonstandard		Ferrite	7.96 MHz 16	Drum Core Wirewound	105 ░C	-40 C		Unshielded			Surface Mount	0.039 in	1.8 mm	0.071 "	1 mm		1 µH		700 mA	390 MHz	10 %	7.96 MHz	320 mOhm
Pulse Electronics BWLD002417151R5M00	Nonstandard		Ferrite	7.96 MHz 18	Drum Core Wirewound	105 ░C	-25 °C		Unshielded			Surface Mount	1.72 mm	0.094 in	2.4 mm	0.068 in		1.5 µH		0.65 A	90 MHz	20 %	7.96 MHz	180 mOhm	1.52 mm	0.06 in
Pulse Electronics BWLD003025221R5K00	1210	3225 Metric	Ferrite	2.5 MHz 22	Drum Core Wirewound	105 ░C	-25 °C	1 A	Unshielded	0.087 in	2.2 mm	Surface Mount	0.098 in	2.99 mm	0.118 "	2.5 mm	125 mOhm	1.5 µH	1210	1.1 A	210 MHz	10 %	2.5 MHz
Pulse Electronics BWLD001810102R2K00	Nonstandard		Ferrite	7.96 MHz 16	Drum Core Wirewound	105 ░C	-40 C		Unshielded			Surface Mount	0.039 in	1.8 mm	0.071 "	1 mm		2.2 µH		580 mA	82 MHz	10 %	7.96 MHz	560 mOhm
Pulse Electronics BWLD002417156R8K00	Nonstandard		Ferrite	7.96 MHz 18	Drum Core Wirewound	105 ░C	-25 °C		Unshielded			Surface Mount	1.72 mm	0.094 in	2.4 mm	0.068 in		6.8 µH		290 mA	60 MHz	10 %	7.96 MHz	750 mOhm	1.52 mm	0.06 in
