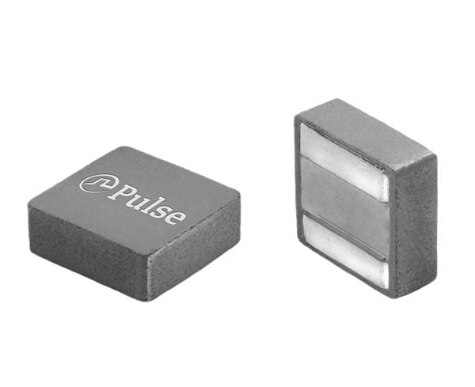

PM5430 Series
Power Inductors - SMD 6.8uH 3.9A AEC-Q200 DCR=74.1mOhms 20%
Manufacturer: Pulse Electronics
Catalog
Power Inductors - SMD 6.8uH 3.9A AEC-Q200 DCR=74.1mOhms 20%
Beta
⌘K
Power Inductors - SMD 6.8uH 3.9A AEC-Q200 DCR=74.1mOhms 20%
Power Inductors - SMD 6.8uH 3.9A AEC-Q200 DCR=74.1mOhms 20%
Power Inductors - SMD 6.8uH 3.9A AEC-Q200 DCR=74.1mOhms 20%
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Current Rating (Amps) | Inductance Frequency - Test | Ratings | Package / Case | Supplier Device Package | Mounting Type | DC Resistance (DCR) [Max] | Tolerance | Shielding | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Inductance | Frequency - Self Resonant | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Pulse Electronics | 155 C | -55 C | 3.9 A | 100 kHz | AEC-Q200 | Nonstandard | SMD | Surface Mount | 74.1 mOhm | 20 % | Shielded | 0.161 in | 4.1 mm | 0.161 " | 4.1 mm | 6.8 µH | 29 MHz | 0.122 in | 3.1 mm |
