17EBH026 Series
Manufacturer: Amphenol ICC (Commercial Products)
Beta
⌘K

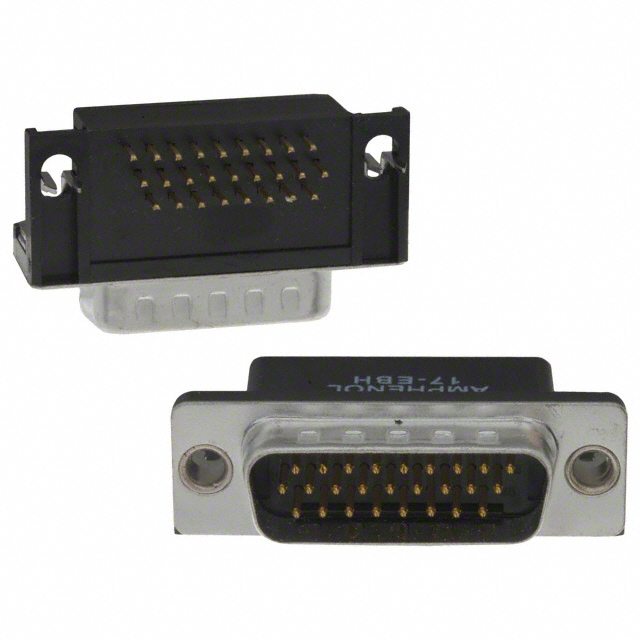

CONN D-SUB HD PLUG 26P R/A SLDR
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Voltage Rating | Contact Material | Color | Contact Form | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout | Contact Type | Contact Finish | Termination | Shell Material, Finish | Current Rating (Amps) | Material Flammability Rating | Number of Positions | Mounting Type | Number of Rows [custom] | Features | Contact Finish Thickness | Contact Finish Thickness | Connector Type | Backset Spacing | Backset Spacing | Flange Feature | Connector Style | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (Commercial Products) | -55 C | 105 ░C | Glass Filled Nylon Polyamide (PA) | 125 VDC | Copper Alloy | Black | Stamped | 2 | DA A | Signal | Gold | Solder | Nickel Plated Steel | 3 A | UL94 V-0 | 26 | Right Angle Through Hole | 3 | Board Lock Grounding Indents | 30 Áin | 0.76 Ám | Plug Male Pins | 8.89 mm | 0.35 in | Housing/Shell (Unthreaded) | D-Sub High Density | |
 Amphenol ICC (Commercial Products) | -55 C | 105 ░C | Glass Filled Nylon Polyamide (PA) | 125 VDC | Copper Alloy | Black | Stamped | 2 | DA A | Signal | Gold | Solder | Nickel Plated Steel | 3 A | UL94 V-0 | 26 | Right Angle Through Hole | 3 | 30 Áin | 0.76 Ám | Receptacle Female Sockets | 8.89 mm | 0.35 in | Housing/Shell | D-Sub High Density | 4-40 |
