AD5422 Series

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

SINGLE CHANNEL, 16-BIT, CURRENT SOURCE & VOLTAGE OUTPUT DAC, HART CONNECTIVITY

Part	Architecture	INL/DNL (LSB) (Max)	Package Name	Mounting Type	Number of D/A Converters	Reference Type	Output Type	Data Interface	Package Length	Package Features	Package Width	Differential Output	Operating Temperature (Min)	Operating Temperature (Max)	Settling Time (Typical)	Voltage - Supply, Analog (Range 1 Min)	Voltage - Supply, Analog (Range 2 Max)	Voltage - Supply, Analog (Range 1 Max)	Voltage - Supply, Analog (Range 2 Min)	Voltage - Supply, Digital (Min)	Voltage - Supply, Digital (Max)	Number of Bits	Package / Case	Supplied Contents	Settling Time	Contents	Number of DAC's	Utilized IC / Part	DAC Type	Sampling Rate (Per Second)
Analog Devices Inc./Maxim Integrated AD5422AREZ	R-2R	1.3 LSB	24-TSSOP 24-TSSOP-EP	Surface Mount	1 count	External Internal	Current - Buffered Voltage Voltage or Current - Buffered	DSP SPI	0.173 in	Exposed Pad	4.4 mm	No	-40 °C	105 °C	25 µs 40 µs	10.8 V	26.4 V	40 V	-3 V	2.7 V	5.5 V	16 bits

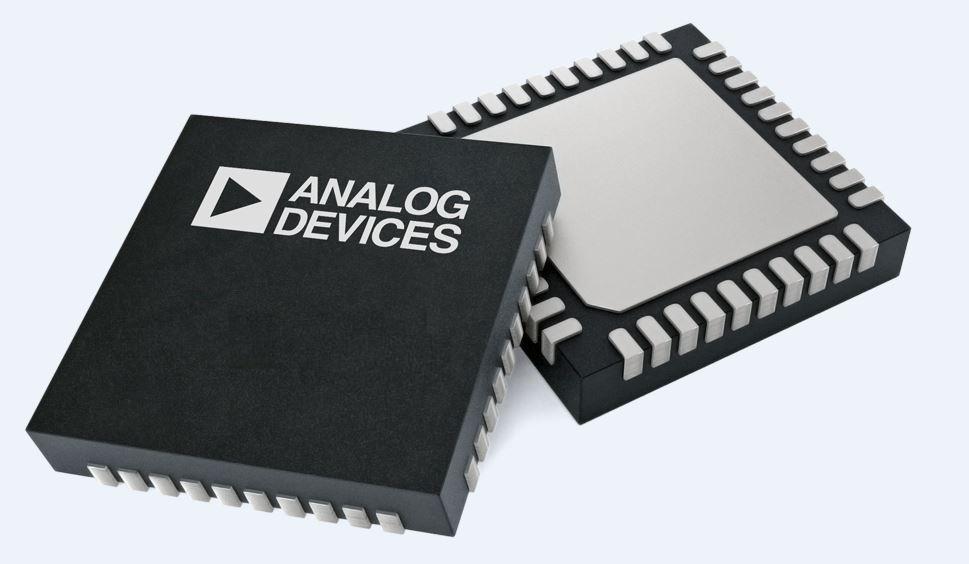

Analog Devices Inc./Maxim Integrated AD5422ACPZ-REEL7	R-2R	1.3 LSB	40-LFCSP-VQ	Surface Mount	1 count	External Internal	Current - Buffered Voltage Voltage or Current - Buffered	DSP SPI	6 mm		6 mm	No	-40 °C	105 °C	25 µs 40 µs	10.8 V	26.4 V	40 V	-3 V	2.7 V	5.5 V	16 bits	40-VFQFN Exposed Pad CSP
Analog Devices Inc./Maxim Integrated AD5422BCPZ-REEL	R-2R	1.3 LSB	40-LFCSP-VQ	Surface Mount	1 count	External Internal	Current - Buffered Voltage Voltage or Current - Buffered	DSP SPI	6 mm		6 mm	No	-40 °C	105 °C	25 µs 40 µs	10.8 V	26.4 V	40 V	-3 V	2.7 V	5.5 V	16 bits	40-VFQFN Exposed Pad CSP
Analog Devices Inc./Maxim Integrated EVAL-AD5422EBZ								Serial														16 bits		Board(s)	32 µs	Board	1	AD5422	Current Voltage	40 kHz
Analog Devices Inc./Maxim Integrated AD5422ACPZ-REEL	R-2R	1.3 LSB	40-LFCSP-VQ	Surface Mount	1 count	External Internal	Current - Buffered Voltage Voltage or Current - Buffered	DSP SPI	6 mm		6 mm	No	-40 °C	105 °C	25 µs 40 µs	10.8 V	26.4 V	40 V	-3 V	2.7 V	5.5 V	16 bits	40-VFQFN Exposed Pad CSP
Analog Devices Inc./Maxim Integrated AD5422BCPZ-REEL7	R-2R	1.3 LSB	40-LFCSP-VQ	Surface Mount	1 count	External Internal	Current - Buffered Voltage Voltage or Current - Buffered	DSP SPI	6 mm		6 mm	No	-40 °C	105 °C	25 µs 40 µs	10.8 V	26.4 V	40 V	-3 V	2.7 V	5.5 V	16 bits	40-VFQFN Exposed Pad CSP
Analog Devices Inc./Maxim Integrated AD5422AREZ-REEL	R-2R	1.3 LSB	24-TSSOP 24-TSSOP-EP	Surface Mount	1 count	External Internal	Current - Buffered Voltage Voltage or Current - Buffered	DSP SPI	0.173 in	Exposed Pad	4.4 mm	No	-40 °C	105 °C	25 µs 40 µs	10.8 V	26.4 V	40 V	-3 V	2.7 V	5.5 V	16 bits
Analog Devices Inc./Maxim Integrated AD5422BREZ-REEL	R-2R	1.3 LSB	24-TSSOP 24-TSSOP-EP	Surface Mount	1 count	External Internal	Current - Buffered Voltage Voltage or Current - Buffered	DSP SPI	0.173 in	Exposed Pad	4.4 mm	No	-40 °C	105 °C	25 µs 40 µs	10.8 V	26.4 V	40 V	-3 V	2.7 V	5.5 V	16 bits
Analog Devices Inc./Maxim Integrated AD5422BREZ	R-2R	1.3 LSB	24-TSSOP 24-TSSOP-EP	Surface Mount	1 count	External Internal	Current - Buffered Voltage Voltage or Current - Buffered	DSP SPI	0.173 in	Exposed Pad	4.4 mm	No	-40 °C	105 °C	25 µs 40 µs	10.8 V	26.4 V	40 V	-3 V	2.7 V	5.5 V	16 bits
