KYB Series

Manufacturer: Chemi-Con

Catalog

CAP ALUMINUM LYTIC 8200UF 16V 20% (16 X 35.5MM) RADIAL 7.5MM 4.08A 10000H 105°C BULK

Part	Lifetime @ Temp.	Tolerance	Applications	Height - Seated (Max)	Height - Seated (Max) [Max] [z]	Impedance	Voltage - Rated	Polarization	Ripple Current @ High Frequency	Lead Spacing	Lead Spacing	Mounting Type	Size / Dimension [diameter]	Size / Dimension [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Ripple Current @ Low Frequency	Package / Case	Height - Seated (Max) [Max] [z]	Capacitance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]
Chemi-Con EKYB160ELL822MLP1S	10000 Hrs	20 %	General Purpose	37 mm	1.457 in	14 mOhms	16 V	Polar	4.08 A	0.295 in	7.5 mm	Through Hole	0.63 in	16 mm	-40 C	105 ░C	3.468 A	Can Radial

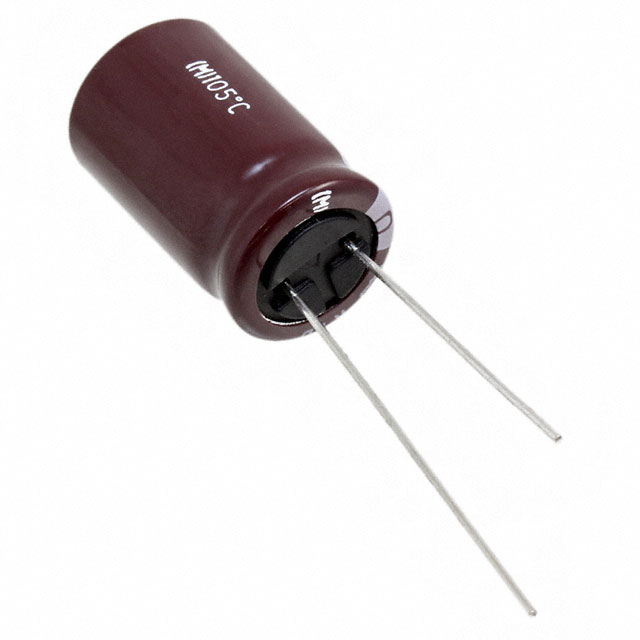

Chemi-Con EKYB500ELL681MK25S	10000 Hrs	20 %	General Purpose		1.043 in	30 mOhms	50 VDC	Polar	2.1 A	0.197 "	5 mm	Through Hole	0.492 in	12.5 mm	-40 C	105 ░C		Can Radial	26.5 mm	680 µF
Chemi-Con EKYB630ELL391MK20S	10000 Hrs	20 %	General Purpose			36 mOhms	63 V	Polar	1.78 A	0.197 "	5 mm	Through Hole	0.492 in	12.5 mm	-40 C	105 ░C	890 mA	Can Radial		390 µF	0.846 "	21.5 mm
Chemi-Con EKYB630ELL181MJ16S	10000 Hrs	20 %	General Purpose			73 mOhms	63 V	Polar	1.05 A	0.197 "	5 mm	Through Hole	0.394 in	10 mm	-40 C	105 ░C	420 mA	Can Radial	0.689 in	180 µF			17.5 mm
Chemi-Con EKYB500ELL471MK20S	10000 Hrs	20 %	General Purpose			34 mOhms	50 VDC	Polar	1.82 A	0.197 "	5 mm	Through Hole	0.492 in	12.5 mm	-40 C	105 ░C	910 mA	Can Radial		470 µF	0.846 "	21.5 mm
Chemi-Con EKYB800ELL181MJ20S	10000 Hrs	20 %	General Purpose			75 mOhms	80 V	Polar	1.04 A	0.197 "	5 mm	Through Hole	0.394 in	10 mm	-40 C	105 ░C	416 mA	Can Radial		180 µF	0.846 "	21.5 mm

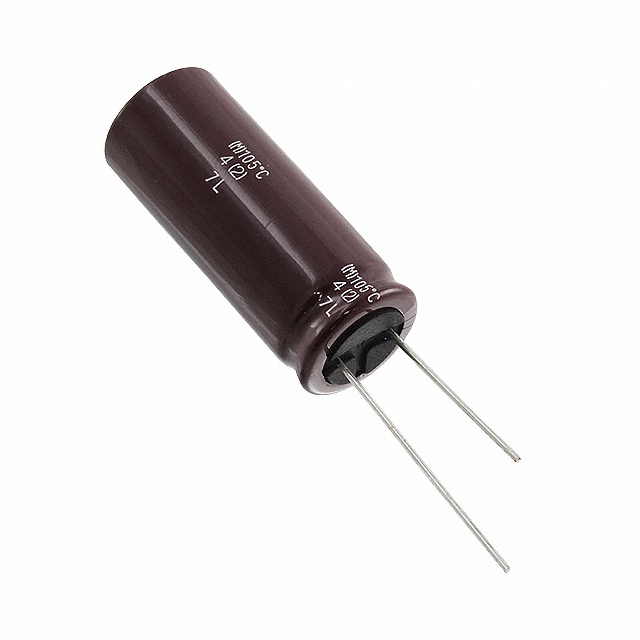

Chemi-Con EKYB160ELL103ML40S	10000 Hrs	20 %	General Purpose	41.5 mm		13 mOhms	16 V	Polar	4.22 A	0.295 in	7.5 mm	Through Hole	0.63 in	16 mm	-40 C	105 ░C	3.587 A	Can Radial		10000 µF	1.634 in
Chemi-Con EKYB350ELL102MJ30S	10000 Hrs	20 %	General Purpose			27 mOhms	35 V	Polar	2.23 A	0.197 "	5 mm	Through Hole	0.394 in	10 mm	-40 C	105 ░C	1.338 A	Can Radial		1000 µF	1.24 in	31.5 mm
Chemi-Con EKYB500ELL152MM25S	10000 Hrs	20 %	General Purpose		1.043 in	21 mOhms	50 VDC	Polar	2.89 A	0.295 in	7.5 mm	Through Hole	0.709 in	18 mm	-40 C	105 ░C	1.734 A	Can Radial	26.5 mm	1.5 mF
Chemi-Con EKYB6R3ELL122MJC5S	8000 Hrs	20 %	General Purpose			64 mOhms	6.3 VDC	Polar	1.05 A	0.197 "	5 mm	Through Hole	0.394 in	10 mm	-40 C	105 ░C	630 mA	Can Radial		1.2 mF	0.551 in	14 mm
