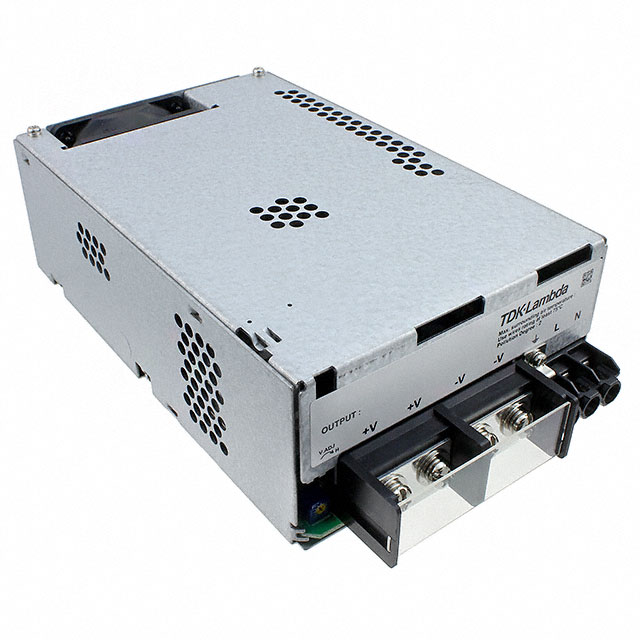

RWS600 Series

Catalog

AC/DC ENCLOSED POWER SUPPLY (PSU), 1 OUTPUTS, 500 W, 5 V, 100 A

Part	Efficiency	Number of Outputs	Power (Watts)	Approval Agency	Mounting Type	Voltage - Isolation	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Features	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input [Max]	Voltage - Input [Min]	Type	Voltage - Output 1	Current - Output 1	Applications	Voltage - Output 1 [custom]
TDK Corporation RWS600B-5/CO2	77 %	1	600 W	CE	Chassis Mount	3000 V	4.72 in	61 mm	120 mm	7.48 in	2.4 in	190 mm	Adjustable Output DC Input Capable Universal Input	70 °C	-20 °C	265 VAC	85 VAC	Conformal Coated Enclosed	5 V	100 A	ITE (Commercial)
TDK Corporation RWS600B-24/CO2	88 %	1	600 W	CE	Chassis Mount	3000 V	4.72 in	61 mm	120 mm	7.48 in	2.4 in	190 mm	Adjustable Output DC Input Capable Universal Input	70 °C	-20 °C	265 VAC	85 VAC	Conformal Coated Enclosed	24 V	25 A	ITE (Commercial)
TDK Corporation RWS600B-15/RFO	84 %	1	600 W	CE	Chassis Mount	3000 V	4.72 in	61 mm	120 mm	7.48 in	2.4 in	190 mm	Adjustable Output DC Input Capable Load Sharing Remote On/Off Remote Sense Universal Input	70 °C	-20 °C	265 VAC	85 VAC	Enclosed	15 V	40 A	ITE (Commercial)
TDK Corporation RWS600B-24	88 %	1	600 W	CE	Chassis Mount	3000 V	4.72 in	61 mm	120 mm	7.48 in	2.4 in	190 mm	Adjustable Output DC Input Capable Universal Input	70 °C	-20 °C	265 VAC	85 VAC	Enclosed	24 V	25 A	ITE (Commercial)
TDK Corporation RWS600B-48/RFO	88 %	1	600 W	CE	Chassis Mount	3000 V	4.72 in	61 mm	120 mm	7.48 in	2.4 in	190 mm	Adjustable Output DC Input Capable Load Sharing Remote On/Off Remote Sense Universal Input	70 °C	-20 °C	265 VAC	85 VAC	Enclosed	48 V	12.5 A	ITE (Commercial)
TDK Corporation RWS600B-36/RFO	88 %	1	601 W	CE	Chassis Mount	3000 V	4.72 in	61 mm	120 mm	7.48 in	2.4 in	190 mm	Adjustable Output DC Input Capable Load Sharing Remote On/Off Remote Sense Universal Input	70 °C	-20 °C	265 VAC	85 VAC	Enclosed		16.7 A	ITE (Commercial)	36 V
TDK Corporation RWS600B-5/FO	77 %	1	600 W	CE	Chassis Mount	3000 V	4.72 in	61 mm	120 mm	7.48 in	2.4 in	190 mm	Adjustable Output DC Input Capable Load Sharing Universal Input	70 °C	-20 °C	265 VAC	85 VAC	Enclosed	5 V	100 A	ITE (Commercial)
TDK Corporation RWS600B-24/FO	88 %	1	600 W	CE	Chassis Mount	3000 V	4.72 in	61 mm	120 mm	7.48 in	2.4 in	190 mm	Adjustable Output DC Input Capable Load Sharing Universal Input	70 °C	-20 °C	265 VAC	85 VAC	Enclosed	24 V	25 A	ITE (Commercial)

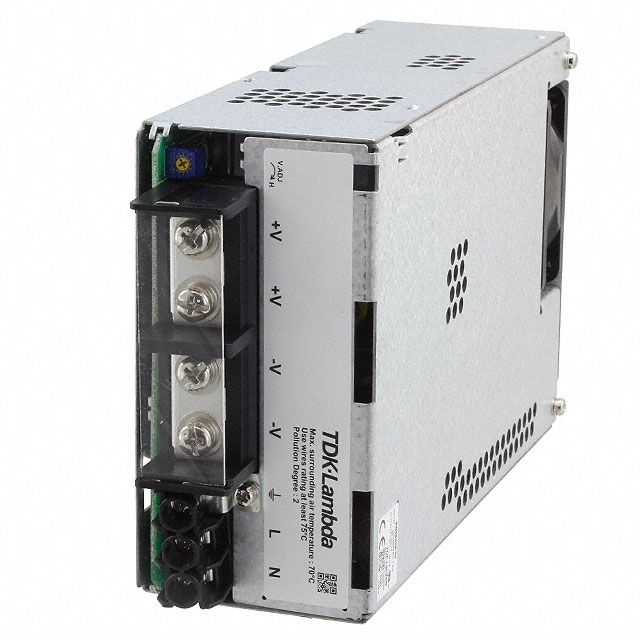

TDK Corporation RWS600B-36/CO2	88 %	1	601 W	CE	Chassis Mount	3000 V	4.72 in	61 mm	120 mm	7.48 in	2.4 in	190 mm	Adjustable Output DC Input Capable Universal Input	70 °C	-20 °C	265 VAC	85 VAC	Conformal Coated Enclosed		16.7 A	ITE (Commercial)	36 V
TDK Corporation RWS600B-36/FO	88 %	1	601 W	CE	Chassis Mount	3000 V	4.72 in	61 mm	120 mm	7.48 in	2.4 in	190 mm	Adjustable Output DC Input Capable Load Sharing Universal Input	70 °C	-20 °C	265 VAC	85 VAC	Enclosed		16.7 A	ITE (Commercial)	36 V
