59K153 Series
Manufacturer: Rosenberger
Beta
⌘K

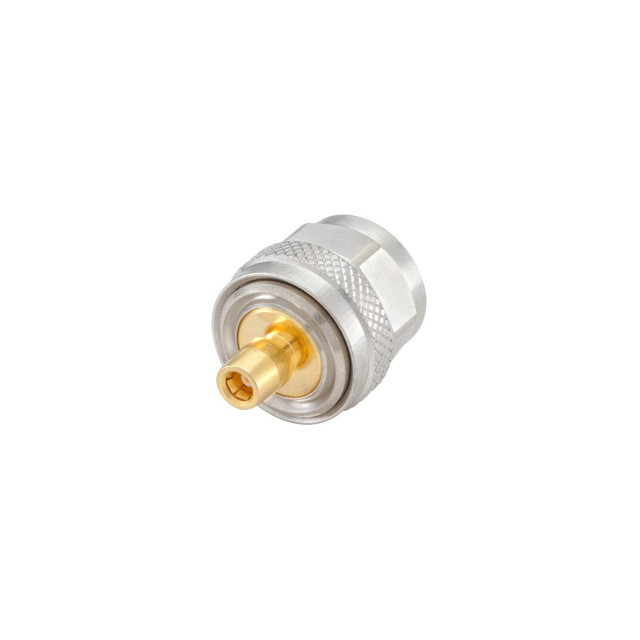

SMB ADAPTER
| Part | Center Contact Material | Body Material | Body Finish | Mating Cycles | Operating Temperature [Max] | Operating Temperature [Min] | Dielectric Material | Convert From (Adapter End) | Center Contact Plating | Adapter Type | Conversion Type | Adapter Series | Frequency - Max [Max] | Impedance | Convert To (Adapter End) | Style | Mounting Type | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rosenberger | Beryllium Copper | Beryllium Copper Brass | Gold Nickel | 500 | 155 C | -55 C | Polytetrafluoroethylene (PTFE) | N Plug Male Pin | Gold | Plug to Jack | Between Series | N to SMB | 4 GHz | 50 Ohms | Female Socket SMB Jack | Straight | Free Hanging (In-Line) | Snap-On Threaded |
