307-034 Series
Manufacturer: EDAC Inc.
Beta
⌘K

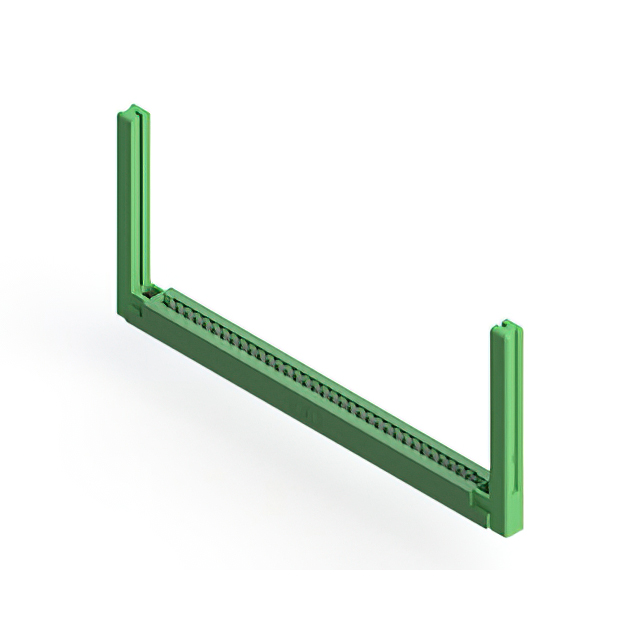

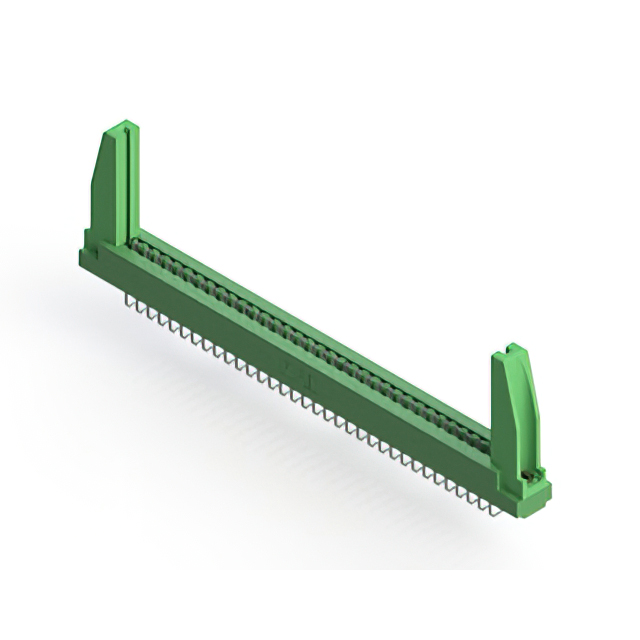

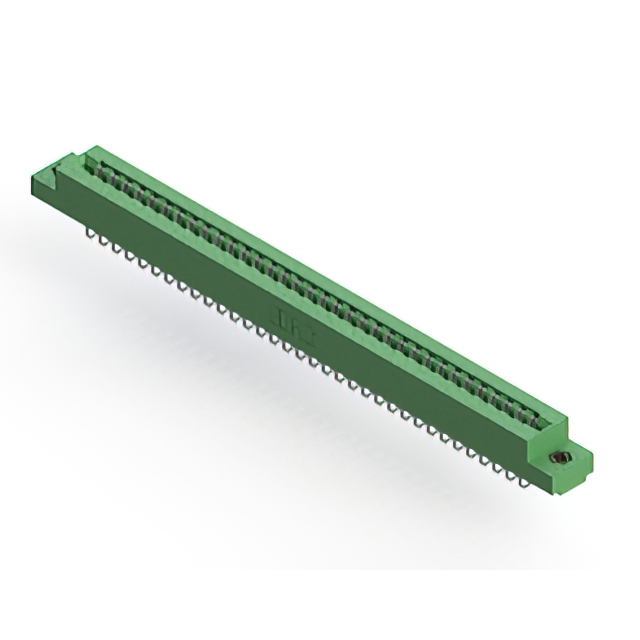

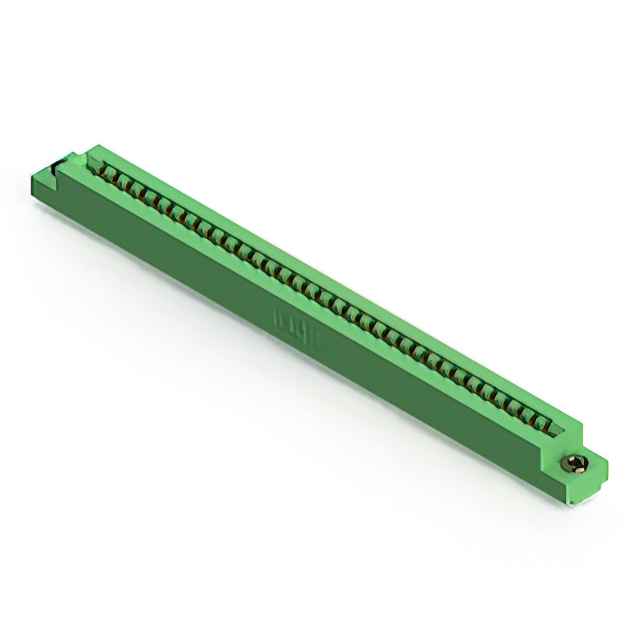

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 34 CONTACTS, THROUGH HOLE MOUNT, RIGHT ANGLE
| Part | Termination Rows [custom] | Material - Insulation | Contact Type | Read Out | Card Type | Number of Positions/Bay/Row [custom] | Termination | Color | Contact Finish | Features | Contact Finish Thickness | Contact Finish Thickness | Card Thickness [Max] | Card Thickness [Min] | Contact Material | Number of Rows [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Number of Positions [custom] | Pitch | Pitch | Flange Feature | Gender | Termination Rows | Number of Positions | Number of Positions/Bay/Row | Flange Feature [diameter] | Flange Feature [diameter] | Number of Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 2 | Polyester Thermoplastic | Semi Bellows | Dual | Non Specified - Dual Edge | 17 | Solder Wire Wrap | Green | Gold | Card Guides | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | 2 | -40 C | 105 ░C | Right Angle Through Hole | 34 | 3.96 mm | 0.156 in | 4-40 Flush Mount Threaded Insert Top Opening | Female | ||||||
 EDAC Inc. | 2 | Polyester Thermoplastic | Semi Bellows | Dual | Non Specified - Dual Edge | 17 | Solder | Green | Tin | Card Extender Card Guides | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | 2 | -40 C | 105 ░C | Board Edge Straddle Mount | 34 | 3.96 mm | 0.156 in | 4-40 Flush Mount Threaded Insert Top Opening | Female | ||||||||
 EDAC Inc. | Polyester Thermoplastic | Semi Bellows | Dual | Non Specified - Dual Edge | Solder | Green | Tin | Card Guides | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | 2 | -40 C | 105 ░C | Right Angle Through Hole | 3.96 mm | 0.156 in | 4-40 Flush Mount Threaded Insert Top Opening | Female | 1 | 68 positions | 34 | ||||||||
 EDAC Inc. | Polyester Thermoplastic | Semi Bellows | Dual | Non Specified - Dual Edge | Solder | Green | Gold | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | 2 | -40 C | 105 ░C | Right Angle Through Hole | 3.96 mm | 0.156 in | Floating Bobbin Flush Mount | Female | 1 | 68 positions | 34 | 0.116 " | 2.95 mm | |||||
 EDAC Inc. | 2 | Polyester Thermoplastic | Semi Bellows | Dual | Non Specified - Dual Edge | 17 | Solder | Green | Tin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | 2 | -40 C | 105 ░C | Right Angle Through Hole | 34 | 3.96 mm | 0.156 in | Flush Mount M3 Threaded Insert Top Opening | Female | |||||||||
 EDAC Inc. | Polyester Thermoplastic | Semi Bellows | Single | Non Specified - Single Edge | Solder | Green | Tin | Card Guides | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | -40 C | 105 ░C | Right Angle Through Hole | 34 | 3.96 mm | 0.156 in | 4-40 Flush Mount Threaded Insert Top Opening | Female | 1 | 34 | 1 | ||||||||
 EDAC Inc. | 2 | Polyester Thermoplastic | Semi Bellows | Dual | Non Specified - Dual Edge | 17 | Solder Eyelet(s) | Green | Gold | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | 2 | -40 C | 105 ░C | Through Hole | 34 | 3.96 mm | 0.156 in | 4-40 Flush Mount Threaded Insert Top Opening | Female | |||||||
 EDAC Inc. | Polyester Thermoplastic | Semi Bellows | Single | Non Specified - Single Edge | Solder | Green | Gold | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | -40 C | 105 ░C | Through Hole | 34 | 3.96 mm | 0.156 in | 4-40 Flush Mount Threaded Insert Top Opening | Female | 1 | 34 | 1 | |||||||
 EDAC Inc. | 2 | Polyester Thermoplastic | Semi Bellows | Dual | Non Specified - Dual Edge | 17 | Solder | Green | Tin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | 2 | -40 C | 105 ░C | Right Angle Through Hole | 34 | 3.96 mm | 0.156 in | Floating Bobbin Flush Mount | Female | 0.116 " | 2.95 mm | |||||||
 EDAC Inc. | Polyester Thermoplastic | Semi Bellows | Single | Non Specified - Single Edge | Solder | Green | Tin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | -40 C | 105 ░C | Right Angle Through Hole | 34 | 3.96 mm | 0.156 in | Flush Mount M3 Threaded Insert Top Opening | Female | 1 | 34 | 1 |
