NPTC122 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K

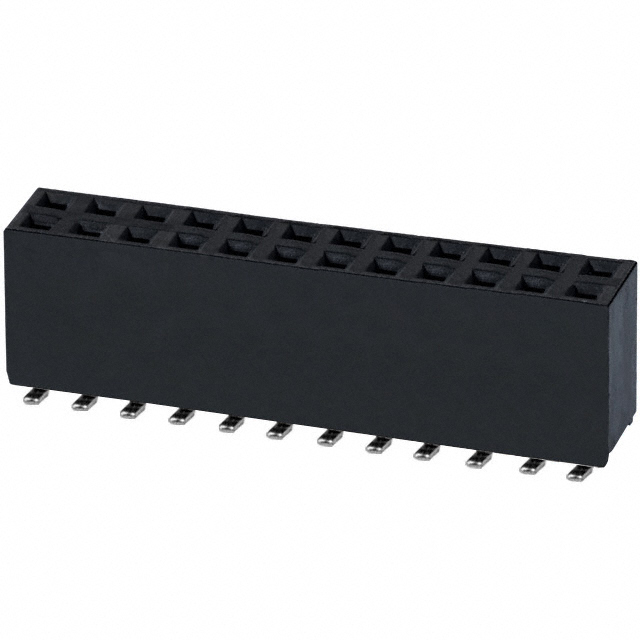

CONN HDR 24POS 0.1 TIN SMD
| Part | Contact Shape | Insulation Material | Contact Material | Termination | Insulation Color | Material Flammability Rating | Voltage Rating | Contact Finish - Post | Number of Positions | Current Rating (Amps) | Number of Positions Loaded | Fastening Type | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Operating Temperature [Max] | Operating Temperature [Min] | Pitch - Mating | Pitch - Mating | Insulation Height [z] | Insulation Height | Connector Type | Contact Type | Mounting Type | Number of Rows [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | Square | Nylon 6T Polyamide (PA6T) | Phosphor Bronze | Solder | Black | UL94 V-0 | 250 V | Tin | 24 | 3 A | All | Push-Pull | 0.1 in | 2.54 mm | 125 °C | -40 C | 0.1 " | 2.54 mm | 0.299 " | 7.6 mm | Header | Female Socket | Surface Mount | 2 |
