951244 Series

Catalog

CONN HEADER VERT 44POS 2MM

Part	Fastening Type	Contact Type	Insulation Height	Insulation Height	Insulation Material	Contact Finish - Post	Material Flammability Rating	Contact Material	Contact Length - Mating	Contact Length - Mating	Row Spacing - Mating	Row Spacing - Mating	Contact Finish Thickness - Mating	Overall Contact Length	Overall Contact Length	Connector Type	Mounting Type	Insulation Height [z]	Insulation Height [z]	Contact Shape	Pitch - Mating	Pitch - Mating	Shrouding	Number of Positions Loaded	Number of Rows [custom]	Contact Finish - Mating	Number of Positions	Contact Length - Post	Contact Length - Post	Contact Length - Post [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Insulation Color	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Features
3M Electronic Specialty 951244-8622-AR	Push-Pull	Male Pin	0.059 in	1.5 mm	Thermoplastic	Tin	UL94 V-0	Copper Alloy	0.173 in	4.4 mm	2 mm	0.079 in	Flash	8.7 mm 8.89 mm	0.343 in 0.35 in	Header	Through Hole	0.06 in	1.52 mm	Square	0.079 "	2 mm	Unshrouded	All	2	Gold	44	0.118 in	2.79 mm 3 mm	0.11 in	-55 C -40 C	105 ░C 125 °C	Solder	Black	39.4 çin	1 çm
3M Electronic Specialty 951244-7622-AR	Push-Pull	Male Pin			Thermoplastic	Tin	UL94 V-0	Copper Alloy	0.173 in	4.4 mm	2 mm	0.079 in	Flash			Header	Right Angle Through Hole	0.157 in	4 mm	Square	0.079 "	2 mm	Unshrouded	All	2	Gold	44		2.79 mm	0.11 in	-55 C	125 °C	Solder	Black	39.4 çin	1 çm
3M Electronic Specialty 951244-2520-AR-TP	Push-Pull	Male Pin			Thermoplastic	Tin	UL94 V-0	Copper Alloy	0.157 in	4 mm	2 mm	0.079 in	Flash			Header	Surface Mount	0.06 in	1.52 mm	Square	0.079 "	2 mm	Unshrouded	All	2	Gold	44				-25 °C	105 ░C	Solder	Black	39.4 çin	1 çm

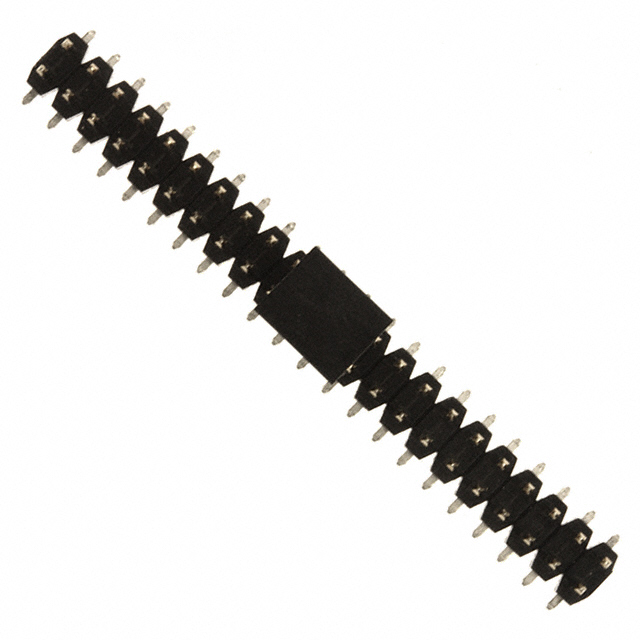

3M Electronic Specialty 951244-2520-AR-PR	Push-Pull	Male Pin			Thermoplastic	Tin	UL94 V-0	Copper Alloy	0.157 in	4 mm	2 mm	0.079 in	Flash			Header	Surface Mount	0.06 in	1.52 mm	Square	0.079 "	2 mm	Unshrouded	All	2	Gold	44				-25 °C	105 ░C	Solder	Black	39.4 çin	1 çm	Pick and Place
3M Electronic Specialty 951244-4620-AR-PR	Push-Pull	Male Pin			Thermoplastic	Tin	UL94 V-0	Copper Alloy	0.175 in	4.45 mm	2 mm	0.079 in	Flash			Header	Right Angle Surface Mount	0.157 in	4 mm	Square	0.079 "	2 mm	Unshrouded	All	2	Gold	44				-25 °C	105 ░C	Solder	Black	39.4 çin	1 çm	Pick and Place
