S-1142 Series

Catalog

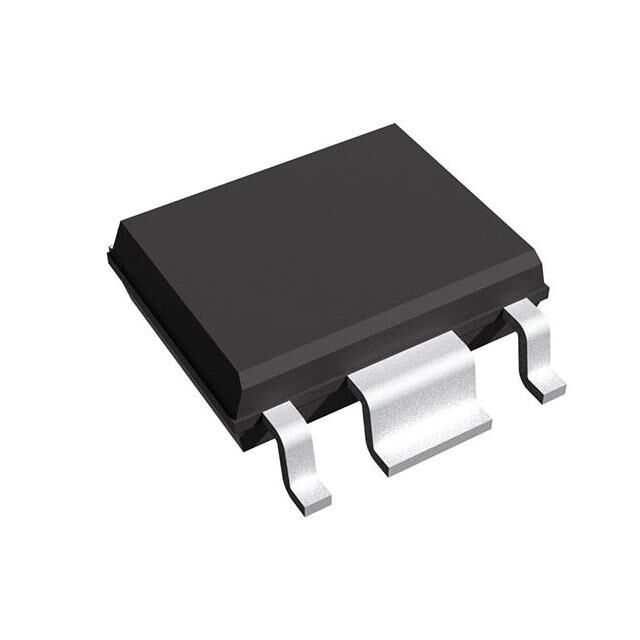

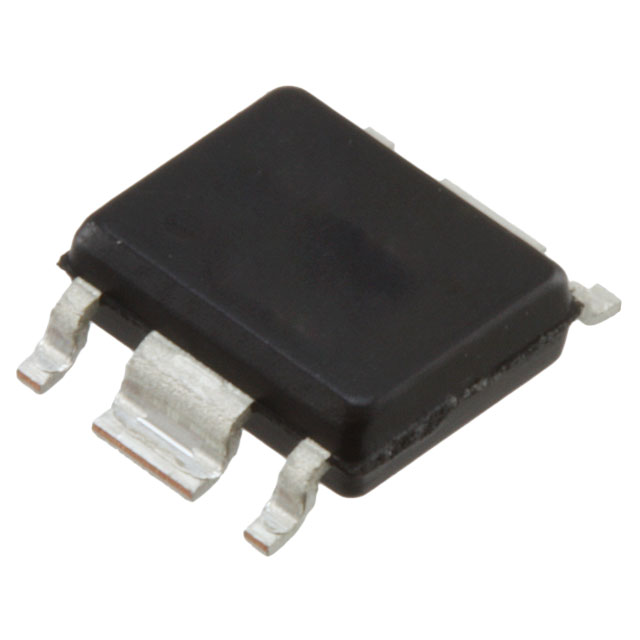

IC REG LINEAR 3.3V 200MA 6-HSOP

...

Part	PSRR	Current - Output	Voltage - Output (Min/Fixed)	Voltage Dropout (Max)	Package / Case	Package / Case	Number of Regulators	Current - Supply (Max) [Max]	Protection Features	Output Configuration	Control Features	Voltage - Input (Max) [Max]	Current - Quiescent (Iq)	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Voltage Dropout (Max) [Max]
ABLIC Inc. S-1142C33H-E6T2U	45 dB	0.2 A	3.3 V	0.72 V	0.154 in 3.9 mm	4 Leads + 2 Fins 6-SOIC Variation	1	9 µA	Over Current Thermal Shutdown	Positive	Enable	50 V	2.5 µA	-40 °C	105 °C	Surface Mount
ABLIC Inc. S-1142D30A-E6T2U	45 dB	0.2 A	3 V	0.72 V	0.154 in 3.9 mm	4 Leads + 2 Fins 6-SOIC Variation	1	9 µA	Over Current Thermal Shutdown	Positive	Enable	50 V	1 µA	-40 ¯C	85 C	Surface Mount
ABLIC Inc. S-1142B2JH-E6T2U	45 dB	0.2 A	2.85 V		0.154 in 3.9 mm	4 Leads + 2 Fins 6-SOIC Variation	1	9 µA	Over Current Thermal Shutdown	Positive	Enable	50 V	2.5 µA	-40 °C	105 °C	Surface Mount	0.82 V
ABLIC Inc. S-1142B27H-E6T2U	45 dB	0.2 A	2.7 V		0.154 in 3.9 mm	4 Leads + 2 Fins 6-SOIC Variation	1	9 µA	Over Current Thermal Shutdown	Positive	Enable	50 V	2.5 µA	-40 °C	105 °C	Surface Mount	0.82 V
ABLIC Inc. S-114232I-E6T1U					0.154 in 3.9 mm	4 Leads + 2 Fins 6-SOIC Variation	1									Surface Mount
ABLIC Inc. S-1142D25H-E6T2U	45 dB	0.2 A	2.5 V		0.154 in 3.9 mm	4 Leads + 2 Fins 6-SOIC Variation	1	9 µA	Over Current Thermal Shutdown	Positive	Enable	50 V	2.5 µA	-40 °C	105 °C	Surface Mount	0.92 V
ABLIC Inc. S-1142B90I-E6T1U	35 dB	0.2 A	9 V		0.154 in 3.9 mm	4 Leads + 2 Fins 6-SOIC Variation	1	9 µA	Over Current Thermal Shutdown	Positive	Enable	50 V	1 µA	-40 ¯C	85 C	Surface Mount	0.4 V
ABLIC Inc. S-1142A50I-E6T1U	40 dB	0.2 A	5 V	0.5 V	0.154 in 3.9 mm	4 Leads + 2 Fins 6-SOIC Variation	1	9 µA	Over Current Thermal Shutdown	Positive	Enable	50 V	1 µA	-40 ¯C	85 C	Surface Mount
ABLIC Inc. S-1142D33H-E6T2U	45 dB	0.2 A	3.3 V	0.72 V	0.154 in 3.9 mm	4 Leads + 2 Fins 6-SOIC Variation	1	9 µA	Over Current Thermal Shutdown	Positive	Enable	50 V	2.5 µA	-40 °C	105 °C	Surface Mount
ABLIC Inc. S-1142C40H-E6T2U	40 dB	0.2 A	4 V		0.154 in 3.9 mm	4 Leads + 2 Fins 6-SOIC Variation	1	9 µA	Over Current Thermal Shutdown	Positive	Enable	50 V	2.5 µA	-40 °C	105 °C	Surface Mount	0.55 V
