ER1002 Series

Catalog

DIODE STANDARD 200V 10A ITO220AC

Part	Package / Case	Current - Reverse Leakage @ Vr	Reverse Recovery Time (trr)	Current - Average Rectified (Io)	Speed	Voltage - Forward (Vf) (Max) @ If [Max]	Technology	Voltage - DC Reverse (Vr) (Max) [Max]	Supplier Device Package	Capacitance @ Vr, F	Mounting Type	Operating Temperature - Junction [Min]	Operating Temperature - Junction [Max]	Current - Average Rectified (Io) (per Diode)	Voltage - Forward (Vf) (Max) @ If	Diode Configuration

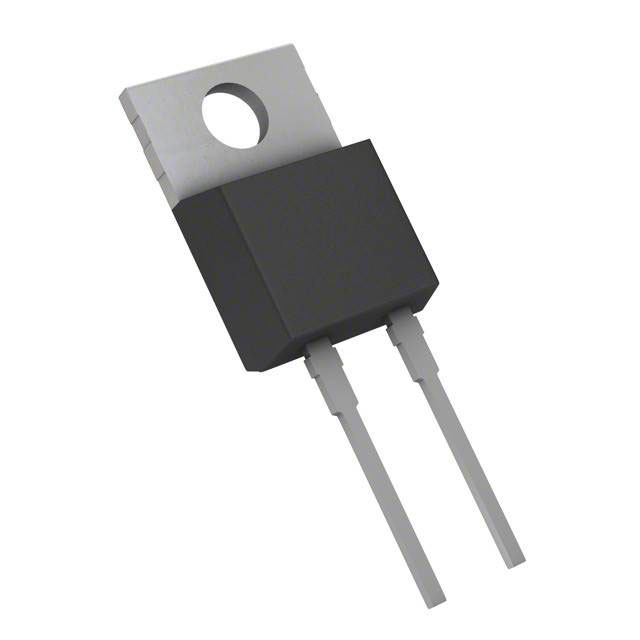

Panjit International Inc. ER1002F_T0_00001	TO-220-2 Full Pack Isolated Tab	1 µA	35 ns	10 A	200 mA 500 ns	950 mV	Standard	200 V	ITO-220AC	62 pF	Through Hole	-55 °C	150 °C
Panjit International Inc. ER1002FCT_T0_00001	TO-220-3 Full Pack	1 µA	35 ns		200 mA 500 ns		Standard	200 V	ITO-220AB		Through Hole	-55 °C	150 °C	10 A	950 mV	1 Pair Common Cathode
Panjit International Inc. ER1002CT_T0_00001	TO-220-3	1 µA	35 ns		200 mA 500 ns		Standard	200 V	TO-220AB		Through Hole	-55 °C	150 °C	10 A	950 mV	1 Pair Common Cathode
Panjit International Inc. ER1002_T0_00001	TO-220-2	1 µA	35 ns	10 A	200 mA 500 ns	950 mV	Standard	200 V	TO-220AC	62 pF	Through Hole	-55 °C	150 °C
