Zma0 Series Series

Catalog

SWITCH SNAP ACT SPDT 100MA 125V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Electrical Life	Termination Style	Operating Position	Operating Position	Circuit	Voltage Rating - DC	Mechanical Life	Current Rating (Amps)	Overtravel [custom]	Overtravel [custom]	Actuator Type	Voltage Rating - AC	Mounting Type	Operating Force	Release Force	Switch Function	Pretravel	Pretravel	Operating Position [x]	Operating Position [x]
LITTELFUSE ZMA00A150P00LC	85 °C	-40 C	300000 Cycles	PC Pin	0.272 in	6.9 mm	SPDT	60 VDC	1000000 Cycles	100 mA	0.008 in	0.2 mm	Round (Pin Plunger)	125 V	Right Angle Through Hole	150 gf	35 gf	On-Mom	0.6 mm	0.024 in
LITTELFUSE ZMA00A150A03RC	85 °C	-40 C	300000 Cycles	PC Pin	0.539 in	13.7 mm	SPDT	60 VDC	1000000 Cycles	100 mA	0.02 "	0.5 mm	Lever Roller	125 V	Right Angle Through Hole	65 gf	10 gf	On-Mom	3.9 mm	0.154 in
LITTELFUSE ZMA00A080A03RC	85 °C	-40 C	300000 Cycles	PC Pin	0.539 in	13.7 mm	SPDT	60 VDC	1000000 Cycles	100 mA	0.02 "	0.5 mm	Lever Roller	125 V	Right Angle Through Hole	34 gf	6 gf	On-Mom	3.9 mm	0.154 in
LITTELFUSE ZMA00A080S07PC	85 °C	-40 C	300000 Cycles	PC Pin			SPDT	60 VDC	1000000 Cycles	100 mA	0.02 "	0.5 mm	Lever Simulated Roller	125 V	Through Hole	40 gf	2 gf	On-Mom	4.3 mm	0.17 in	0.38 in	9.7 mm
LITTELFUSE ZMA00A150P00KC	85 °C	-40 C	300000 Cycles	PC Pin	0.272 in	6.9 mm	SPDT	60 VDC	1000000 Cycles	100 mA	0.008 in	0.2 mm	Round (Pin Plunger)	125 V	Through Hole	150 gf	35 gf	On-Mom	0.6 mm	0.024 in
LITTELFUSE ZMA00A150L11EC	85 °C	-40 C	300000 Cycles	Solder Lug	0.343 in	8.7 mm	SPDT	60 VDC	1000000 Cycles	100 mA	0.024 "	0.6 mm	Lever Straight	125 V	Chassis Mount	39 gf	6 gf	On-Mom	4.4 mm	0.172 "
LITTELFUSE ZMA00A080S03PC	85 °C	-40 C	300000 Cycles	PC Pin	0.386 in	9.8 mm	SPDT	60 VDC	1000000 Cycles	100 mA	0.026 "	0.7 mm	Lever Simulated Roller	125 V	Through Hole			On-Mom	3.5 mm	0.138 in

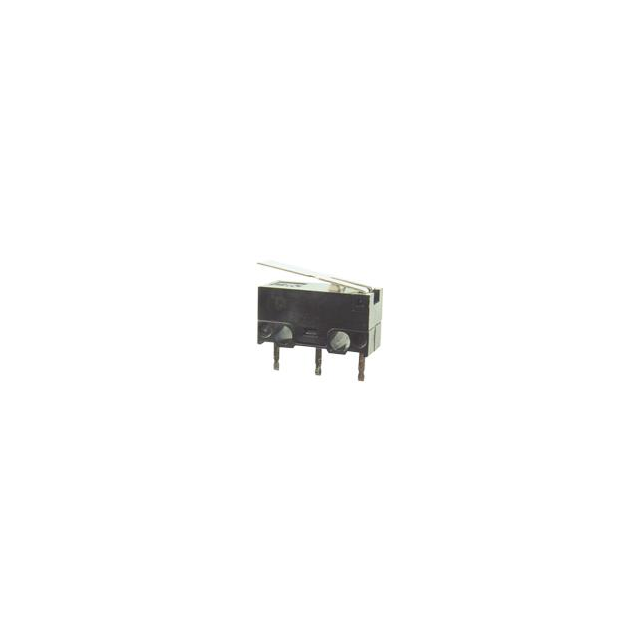

LITTELFUSE ZMA00A150S06RC	85 °C	-40 C	300000 Cycles	PC Pin			SPDT	60 VDC	1000000 Cycles	100 mA	0.049 "	1.25 mm	Lever Simulated Roller	125 V	Right Angle Through Hole	49 gf	11 gf	On-Mom	1.4 mm	0.055 in

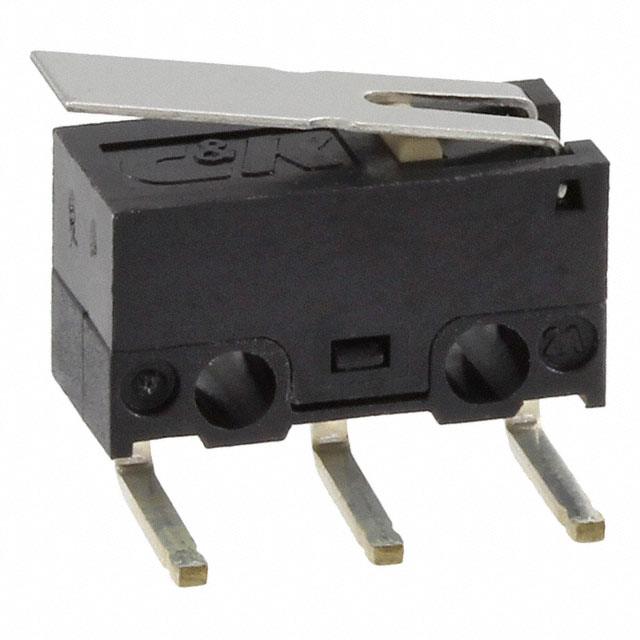

LITTELFUSE ZMA00A080L11RC	85 °C	-40 C	300000 Cycles	PC Pin	0.343 in	8.7 mm	SPDT	60 VDC	1000000 Cycles	100 mA	0.024 "	0.6 mm	Lever Straight	125 V	Right Angle Through Hole		6 gf	On-Mom	4.4 mm	0.172 "
LITTELFUSE ZMA00A150P00RC	85 °C	-40 C	300000 Cycles	PC Pin	0.272 in	6.9 mm	SPDT	60 VDC	1000000 Cycles	100 mA	0.008 in	0.2 mm	Round (Pin Plunger)	125 V	Right Angle Through Hole	150 gf	35 gf	On-Mom	0.6 mm	0.024 in
