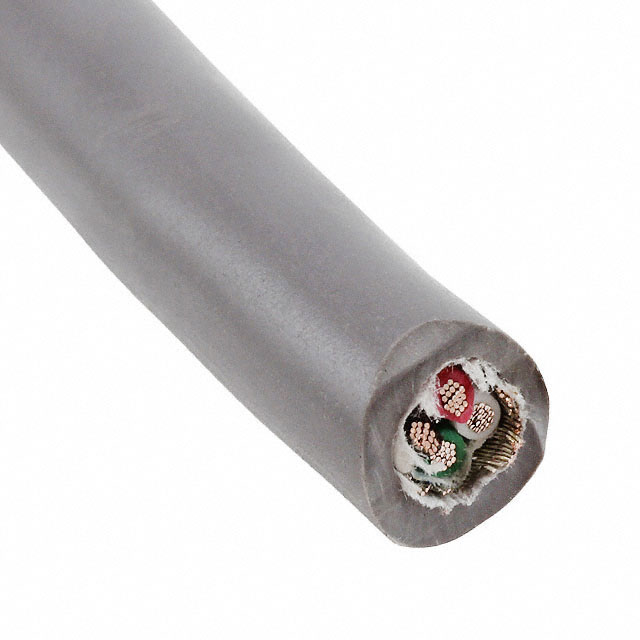

M2439 Series
Manufacturer: ALPHA WIRE
Beta
⌘K
CABLE 4COND 24AWG SHLD 3000'
| Part | Shield Material | Shield Coverage | Jacket (Insulation) Diameter [diameter] | Conductor Insulation | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Voltage | Conductor Material | Length | Length | Jacket (Insulation) Material | Number of Conductors | Ratings | Shield Type | Conductor Strand [custom] | Conductor Strand [custom] | Jacket Color | Features | Cable Type | Operating Temperature [Max] | Operating Temperature [Min] | Wire Gauge | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Aluminum Copper Tinned | 65 % 100 % | 0.196 " 4.98 mm | Poly-Vinyl Chloride (PVC) | 0.813 mm | 0.032 in | 300 VDC | Copper Tinned | 914.4 m | 3000 ' | Poly-Vinyl Chloride (PVC) | 4 | UL Style 2464 | Braid Foil | 7 | 32 AWG | Slate | Drain Wire Rip Cord | Multi-Conductor | 80 °C | -20 ░C | 24 AWG | ||
ALPHA WIRE | Aluminum Copper Tinned | 65 % 100 % | 0.196 " 4.98 mm | Poly-Vinyl Chloride (PVC) | 0.813 mm | 0.032 in | 300 VDC | Copper Tinned | Poly-Vinyl Chloride (PVC) | 4 | UL Style 2464 | Braid Foil | 7 | 32 AWG | Slate | Drain Wire Rip Cord | Multi-Conductor | 80 °C | -20 ░C | 24 AWG | 100 ft | 30.5 m |
