737-076 Series
Manufacturer: EDAC Inc.
Beta
⌘K

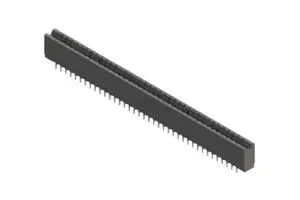

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 76 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
| Part | Termination Rows [custom] | Material - Insulation | Gender | Color | Contact Finish | Termination | Contact Type | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Card Thickness [Max] | Card Thickness [Min] | Card Type | Pitch | Pitch | Number of Positions/Bay/Row [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Read Out | Number of Rows [custom] | Number of Positions | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 2 | Polyester Thermoplastic | Female | Black | Gold | Press-Fit | Cantilever | 30 Áin | 0.76 Ám | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Dual Edge | 3.96 mm | 0.156 in | 38 | -40 C | 105 ░C | Dual | 2 | 76 | Copper Alloy |
 EDAC Inc. | 2 | Polyester Thermoplastic | Female | Black | Gold | Press-Fit | Cantilever Make Before Break | 30 Áin | 0.76 Ám | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Dual Edge | 3.96 mm | 0.156 in | 38 | -40 C | 105 ░C | Dual | 2 | 76 | Copper Alloy |
 EDAC Inc. | 2 | Polyester Thermoplastic | Female | Black | Gold | Press-Fit | Cantilever | 30 Áin | 0.76 Ám | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Dual Edge | 3.96 mm | 0.156 in | 38 | -40 C | 105 ░C | Dual | 2 | 76 | Copper Alloy |
 EDAC Inc. | 2 | Polyester Thermoplastic | Female | Black | Gold | Press-Fit Wire Wrap | Cantilever | 30 Áin | 0.76 Ám | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Dual Edge | 3.96 mm | 0.156 in | 38 | -40 C | 105 ░C | Dual | 2 | 76 | Copper Alloy |
 EDAC Inc. | 2 | Polyester Thermoplastic | Female | Black | Gold | Press-Fit | Cantilever | 30 Áin | 0.76 Ám | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Dual Edge | 3.96 mm | 0.156 in | 38 | -40 C | 105 ░C | Dual | 2 | 76 | Copper Alloy |
 EDAC Inc. | 2 | Polyester Thermoplastic | Female | Black | Gold | Press-Fit Wire Wrap | Cantilever | 30 Áin | 0.76 Ám | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Dual Edge | 3.96 mm | 0.156 in | 38 | -40 C | 105 ░C | Dual | 2 | 76 | Copper Alloy |
 EDAC Inc. | 2 | Polyester Thermoplastic | Female | Black | Gold | Press-Fit Wire Wrap | Cantilever | 30 Áin | 0.76 Ám | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Dual Edge | 3.96 mm | 0.156 in | 38 | -40 C | 105 ░C | Dual | 2 | 76 | Copper Alloy |
 EDAC Inc. | 2 | Polyester Thermoplastic | Female | Black | Gold | Press-Fit | Cantilever | 30 Áin | 0.76 Ám | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Dual Edge | 3.96 mm | 0.156 in | 38 | -40 C | 105 ░C | Dual | 2 | 76 | Copper Alloy |
