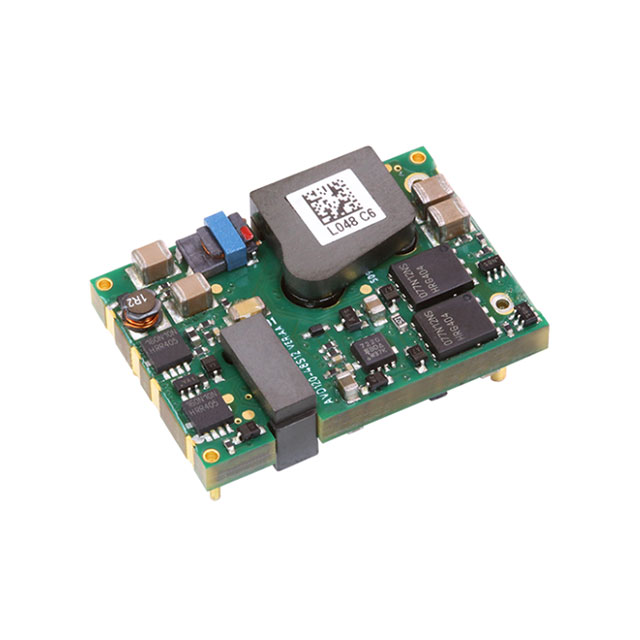

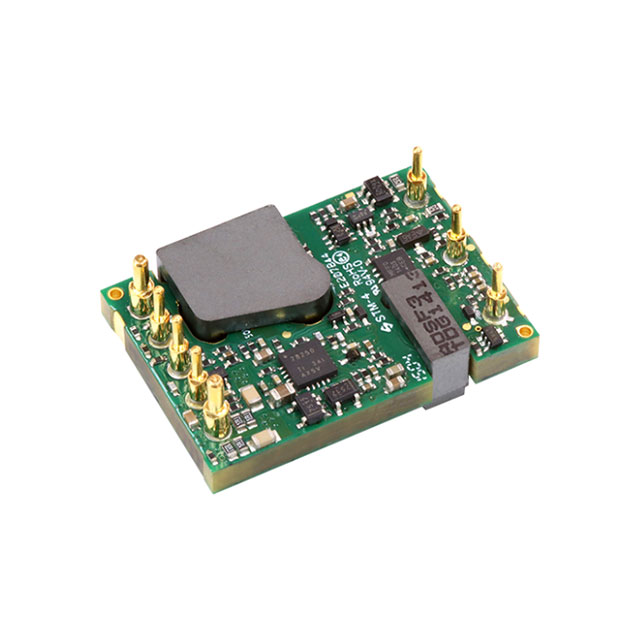

AVD100 Series
Manufacturer: ARTESYN / Advanced Energy
Beta
⌘K
DC DC CONVERTER 5V 100W
| Part | Type | Voltage - Isolation | Voltage - Input (Min) [Min] | Voltage - Output 1 | Voltage - Input (Max) [Max] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Number of Outputs | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Efficiency | Applications | Current - Output (Max) [Max] | Power (Watts) | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ARTESYN / Advanced Energy | Isolated Module | 2250 VDC | 36 V | 5 V | 75 V | 0.9 in | 9.9 mm | 22.9 mm | 1.3 in | 0.39 " | 33 mm | 1 | Sixteenth Brick | 85 °C | -40 C | 92.5 % | ITE (Commercial) | 20 A | 100 W | Surface Mount |
