745-010 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 10POS 0.100

Part	Termination Rows [custom]	Material - Insulation	Operating Temperature [Min]	Operating Temperature [Max]	Color	Termination	Contact Material	Contact Type	Number of Positions	Number of Positions/Bay/Row	Number of Rows [custom]	Card Type	Pitch	Pitch	Contact Finish Thickness	Contact Finish Thickness	Gender	Mounting Type	Read Out	Card Thickness [Max]	Card Thickness [Min]	Contact Finish	Termination Rows	Number of Rows

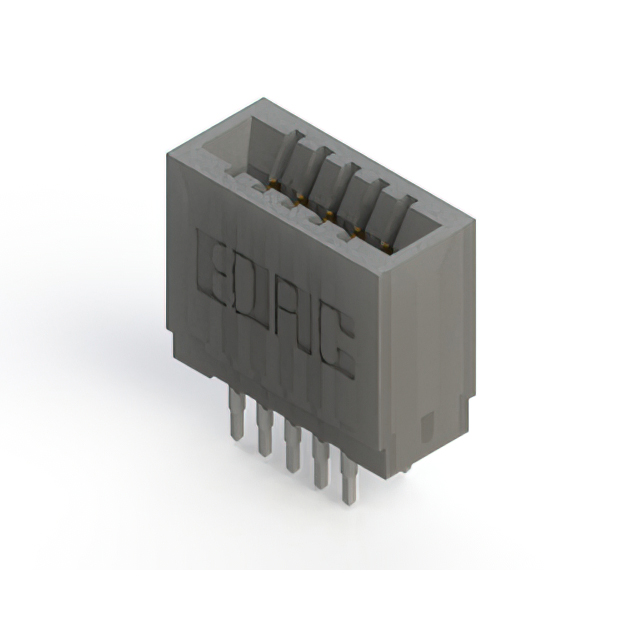

EDAC Inc. 745-010-525-201	2	Polyester Thermoplastic	-40 C	105 ░C	Black	Press-Fit	Copper Alloy	Cantilever	10	5	2	Non Specified - Dual Edge	0.1 "	2.54 mm	30 Áin	0.76 Ám	Female	Through Hole	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold

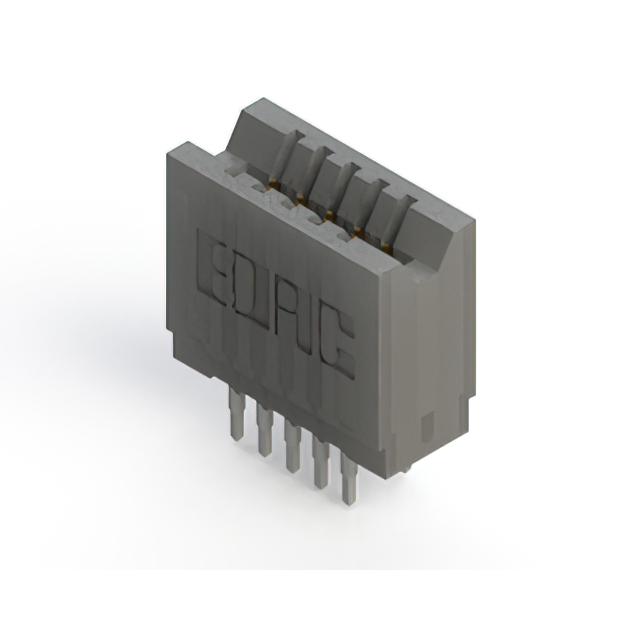

EDAC Inc. 745-010-525-206	2	Polyester Thermoplastic	-40 C	105 ░C	Black	Press-Fit	Copper Alloy	Cantilever	10	5	2	Non Specified - Dual Edge	0.1 "	2.54 mm	30 Áin	0.76 Ám	Female	Through Hole	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold

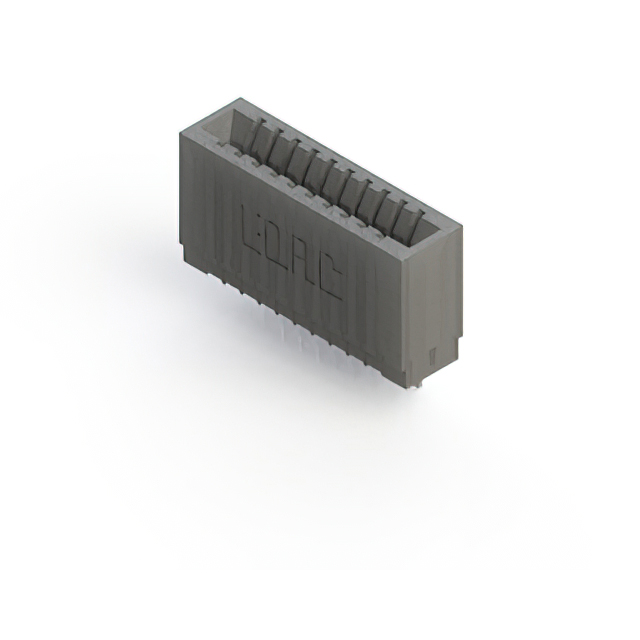

EDAC Inc. 745-010-541-101		Polyester Thermoplastic	-40 C	105 ░C	Black	Press-Fit Wire Wrap	Copper Alloy	Cantilever	10	10		Non Specified - Single Edge	0.1 "	2.54 mm	30 Áin	0.76 Ám	Female	Through Hole	Single	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	1	1

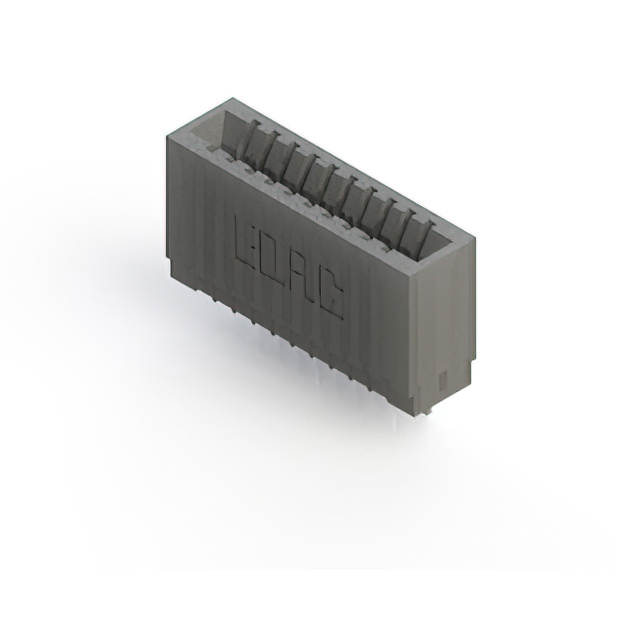

EDAC Inc. 745-010-540-101		Polyester Thermoplastic	-40 C	105 ░C	Black	Press-Fit Wire Wrap	Copper Alloy	Cantilever	10	10		Non Specified - Single Edge	0.1 "	2.54 mm	30 Áin	0.76 Ám	Female	Through Hole	Single	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	1	1

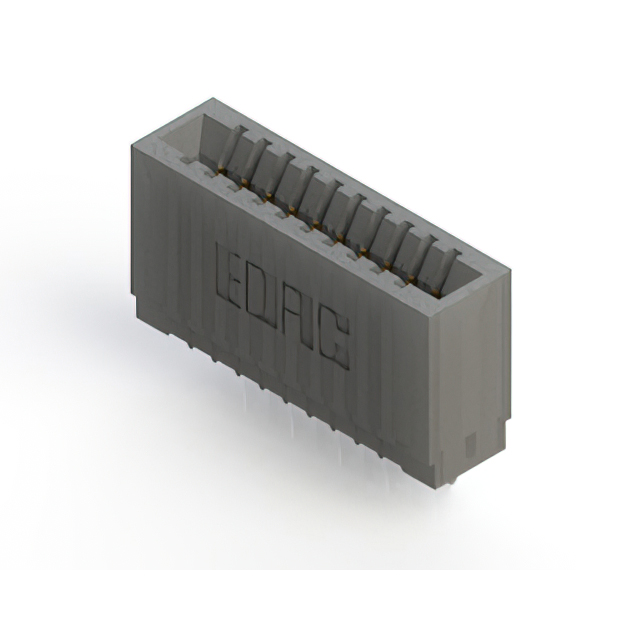

EDAC Inc. 745-010-525-101		Polyester Thermoplastic	-40 C	105 ░C	Black	Press-Fit	Copper Alloy	Cantilever	10	10		Non Specified - Single Edge	0.1 "	2.54 mm	30 Áin	0.76 Ám	Female	Through Hole	Single	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	1	1

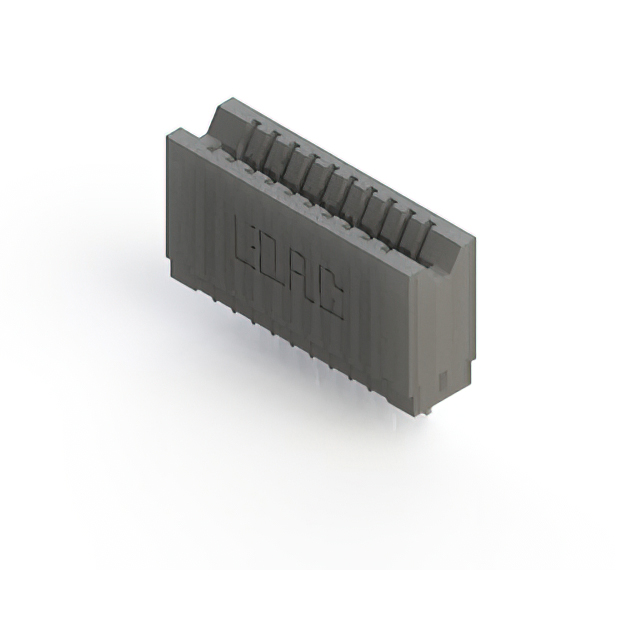

EDAC Inc. 745-010-540-106		Polyester Thermoplastic	-40 C	105 ░C	Black	Press-Fit Wire Wrap	Copper Alloy	Cantilever	10	10		Non Specified - Single Edge	0.1 "	2.54 mm	30 Áin	0.76 Ám	Female	Through Hole	Single	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	1	1

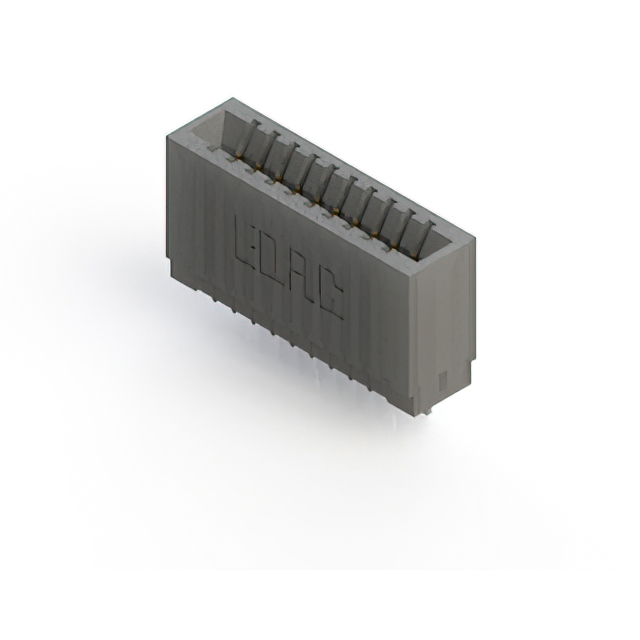

EDAC Inc. 745-010-545-101		Polyester Thermoplastic	-40 C	105 ░C	Black	Press-Fit	Copper Alloy	Cantilever	10	10		Non Specified - Single Edge	0.1 "	2.54 mm	30 Áin	0.76 Ám	Female	Through Hole	Single	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	1	1

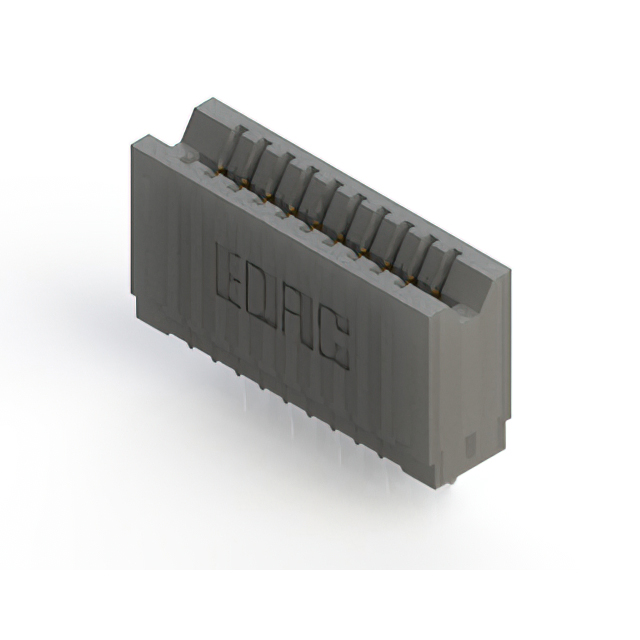

EDAC Inc. 745-010-525-106		Polyester Thermoplastic	-40 C	105 ░C	Black	Press-Fit	Copper Alloy	Cantilever	10	10		Non Specified - Single Edge	0.1 "	2.54 mm	30 Áin	0.76 Ám	Female	Through Hole	Single	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	1	1

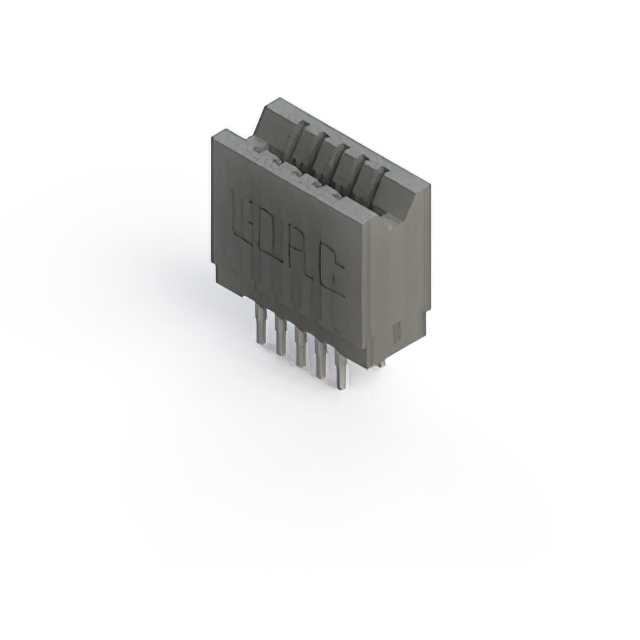

EDAC Inc. 745-010-541-206	2	Polyester Thermoplastic	-40 C	105 ░C	Black	Press-Fit Wire Wrap	Copper Alloy	Cantilever	10	5	2	Non Specified - Dual Edge	0.1 "	2.54 mm	30 Áin	0.76 Ám	Female	Through Hole	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold
EDAC Inc. 745-010-520-106		Polyester Thermoplastic	-40 C	105 ░C	Black	Press-Fit	Copper Alloy	Cantilever	10	10		Non Specified - Single Edge	0.1 "	2.54 mm	30 Áin	0.76 Ám	Female	Through Hole	Single	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	1	1
