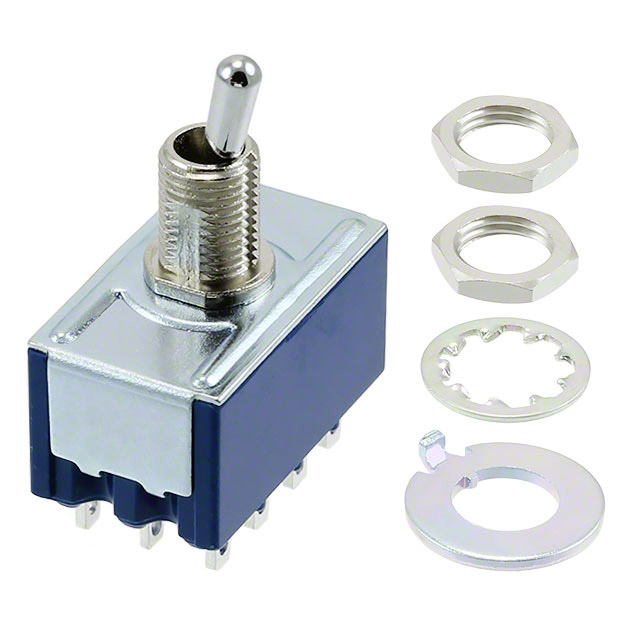

8J4011 Series
Manufacturer: Nidec Components Corporation
Beta
⌘K
SWITCH TOGGLE 4PDT 6A 125V
| Part | Electrical Life | Mounting Type | Bushing Thread | Panel Cutout Dimensions [diameter] | Illumination | Voltage Rating - AC | Termination Style | Voltage Rating - DC | Current Rating (Amps) | Actuator Length [x] | Actuator Type | Operating Temperature [Max] | Operating Temperature [Min] | Circuit | Switch Function |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Nidec Components Corporation | 50000 Cycles | Panel Mount | 1/4-40 | 6.5 mm | Non-Illuminated | 125 V | Solder Lug | 30 V | 4 A 6 A | 6.8 mm | Standard Round | 85 °C | -30 ░C | 4PDT | On-On |
