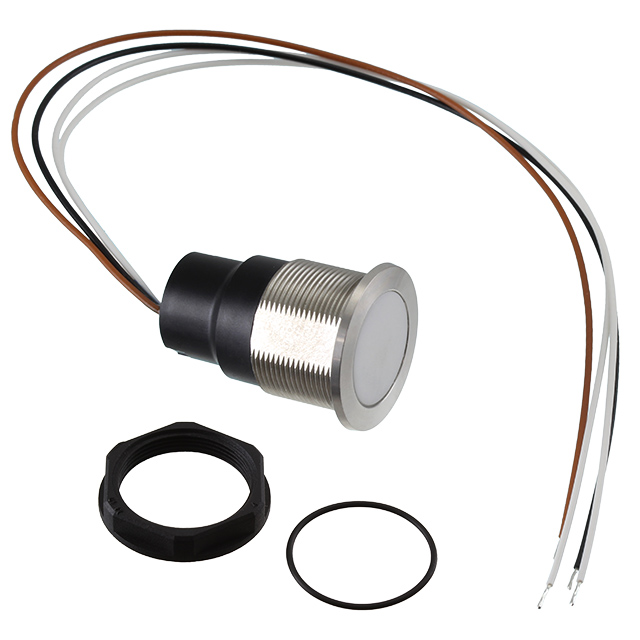

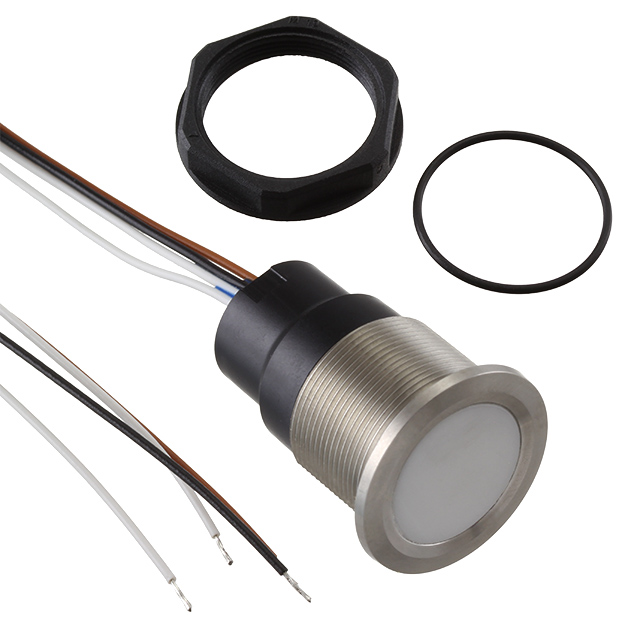

CPS19-NC Series

Catalog

SWITCH PUSH SPST-NC 100MA 42V

Part	Voltage Rating - AC	Ingress Protection	Type	Panel Cutout Dimensions [diameter]	Actuator Type	Termination Style	Current Rating (Amps)	Actuator Marking	Switch Function	Voltage Rating - DC	Color - Actuator/Cap	Mounting Type	Circuit	Illumination Voltage (Nominal) [Min]	Illumination Voltage (Nominal) [Max]	Illumination Type, Color	Operating Temperature [Max]	Operating Temperature [Min]	Features	Actuator Marking
SCHURTER Inc. CPS19-NC00A10-SNCCWTWF-AI0YBVAR-W0000-S	42 V	IP67 - Dust Tight Waterproof	Capacitive Illuminated	19.1 mm	Button Flush Round	Wire Leads	100 mA	No Marking	On-Mom	60 VDC	Clear	Panel Mount Front	SPST-NC	5 VDC	28 VDC	Blue/Yellow LED	60 °C	-40 C	Ceramic Actuator Finger Guide
SCHURTER Inc. CPS19-NC00A10-SNCCWTNF-AI0BCVAR-W1076-S	42 V	IP67 - Dust Tight Waterproof	Capacitive Illuminated	19.1 mm	Button Flush Round	Wire Leads	100 mA	Alarm Symbol	On-Mom	60 VDC	Clear	Panel Mount Front	SPST-NC	5 VDC	28 VDC	Blue/Cyan LED	60 °C	-40 C	Ceramic Actuator
SCHURTER Inc. CPS19-NC00A10-SNCCWTWF-AI0RBVAR-W1045-S	42 V	IP67 - Dust Tight Waterproof	Capacitive Illuminated	19.1 mm	Button Flush Round	Wire Leads	100 mA	Arrow Left-Right	On-Mom	60 VDC	Clear	Panel Mount Front	SPST-NC	5 VDC	28 VDC	Blue LED Red	60 °C	-40 C	Ceramic Actuator Finger Guide
SCHURTER Inc. CPS19-NC00A10-SNCSNCNF-RI0CYVAR-W1035-S	42 V	IP67 - Dust Tight Waterproof	Capacitive Illuminated	19.1 mm	Button Flush Round	Wire Leads	100 mA		On-Mom	60 VDC	Silver	Panel Mount Front	SPST-NC	5 VDC	28 VDC	Cyan LED	60 °C	-40 C		8
SCHURTER Inc. CPS19-NC00A10-SNCCWTNF-AI0GNVAR-W0000-S	42 V	IP67 - Dust Tight Waterproof	Capacitive Illuminated	19.1 mm	Button Flush Round	Wire Leads	100 mA	No Marking	On-Mom	60 VDC	Clear	Panel Mount Front	SPST-NC	5 VDC	28 VDC	Green LED	60 °C	-40 C	Ceramic Actuator
SCHURTER Inc. CPS19-NC00A10-SNCSNCWF-RI0WTVAR-W1070-S	42 V	IP67 - Dust Tight Waterproof	Capacitive Illuminated	19.1 mm	Button Flush Round	Wire Leads	100 mA	LOW	On-Mom	60 VDC	Silver	Panel Mount Front	SPST-NC	5 VDC	28 VDC	LED White	60 °C	-40 C	Finger Guide
SCHURTER Inc. CPS19-NC00A10-SNCCWTWF-AI0GCVAR-W1053-S	42 V	IP67 - Dust Tight Waterproof	Capacitive Illuminated	19.1 mm	Button Flush Round	Wire Leads	100 mA	CTRL	On-Mom	60 VDC	Clear	Panel Mount Front	SPST-NC	5 VDC	28 VDC	Cyan/Green LED	60 °C	-40 C	Ceramic Actuator Finger Guide
