2GL50 Series

Catalog

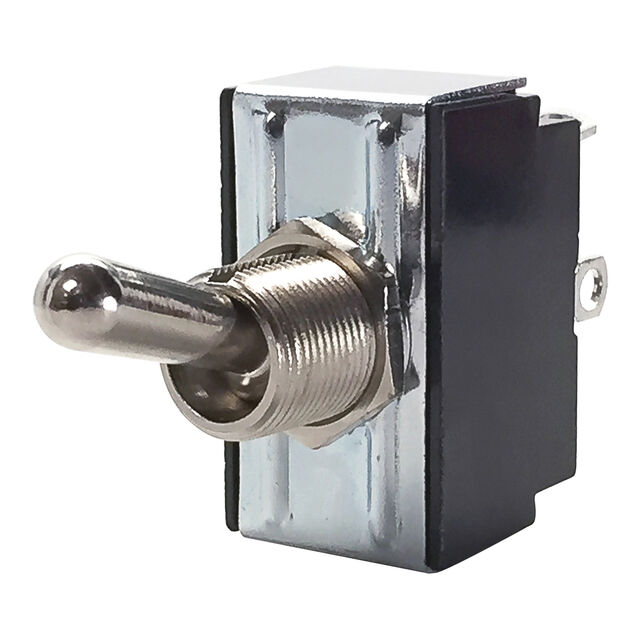

SWITCH TOGGLE DPDT 15A 125V

Part	Electrical Life	Current Rating (Amps)	Panel Cutout Dimensions [diameter]	Circuit	Illumination	Actuator Length [x]	Switch Function	Actuator Type	Mounting Type	Operating Temperature [Max]	Termination Style	Voltage Rating - AC	Bushing Thread
Carling Technologies 2GL50-NBL3	50000 Cycles	15 A	12.7 mm	DPDT	Non-Illuminated	17.45 mm	On-On	Paddle	Panel Mount	85 °C	Solder Lug	125 V	15/32-32
Carling Technologies 2GL50-63	50000 Cycles	15 A	12.7 mm	DPDT	Non-Illuminated	14.28 mm	On-On	Standard Round	Panel Mount	85 °C	Solder Lug	125 V	15/32-32
Carling Technologies 2GL50-78	50000 Cycles	15 A	12.7 mm	DPDT	Non-Illuminated	17.45 mm	On-On	Standard Round	Panel Mount	85 °C	Solder Lug	125 V	15/32-32
Carling Technologies 2GL50-73	50000 Cycles	15 A	12.7 mm	DPDT	Non-Illuminated	17.45 mm	On-On	Standard Round	Panel Mount	85 °C	Solder Lug	125 V	15/32-32
