CP2000 Series

Catalog

AC/DC CONVERTER 54V 2000W

Part	Current - Output 1	Approval Agency	Power (Watts)	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Voltage - Isolation	Operating Temperature [Min]	Operating Temperature [Max]	Efficiency	Features	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Output 1	Type	Applications	Mounting Type	Number of Outputs	Voltage - Input (Min) [Min]	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]

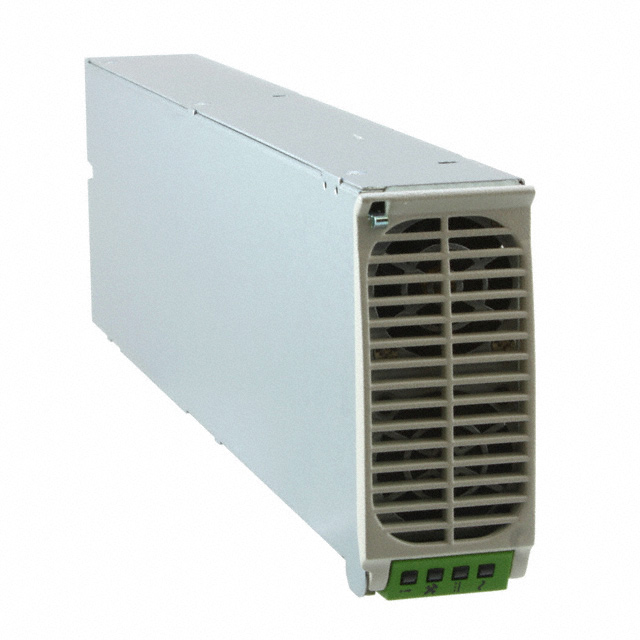

OmniOn Power™ CP2000AC54TEP	37 A	CE	2 kW	13.85 in	351.8 mm	41.4 mm	101.6 mm	4 "	1.63 in	3000 V	-10 °C	75 °C	95 %	Adjustable Output Hot Swappable I2C Interface Load Sharing PFC PMBus™ Remote Sense Standby Output Universal Input	90 VAC 185 VAC	140 VAC 300 VAC	54 V	Front End	ITE (Commercial)	Rack Mount	1
OmniOn Power™ CP2000AC54TEP	37 A	CE	2 kW	13.85 in	351.8 mm	41.4 mm	101.6 mm	4 "	1.63 in	3000 V	-10 °C	75 °C	95 %	Adjustable Output Hot Swappable I2C Interface Load Sharing PFC PMBus™ Remote Sense Standby Output Universal Input	90 VAC 185 VAC	140 VAC 300 VAC	54 V	Front End	ITE (Commercial)	Rack Mount	1
OmniOn Power™ CP2000AC54TEZ	37 A	CE	2 kW	13.85 in	351.8 mm	41.4 mm	101.6 mm	4 "	1.63 in	3000 V	-10 °C	75 °C	95 %	Adjustable Output Hot Swappable I2C Interface Load Sharing PFC PMBus™ Remote Sense Standby Output Universal Input	90 VAC 185 VAC	140 VAC 300 VAC	54 V	Front End	ITE (Commercial)	Rack Mount	1

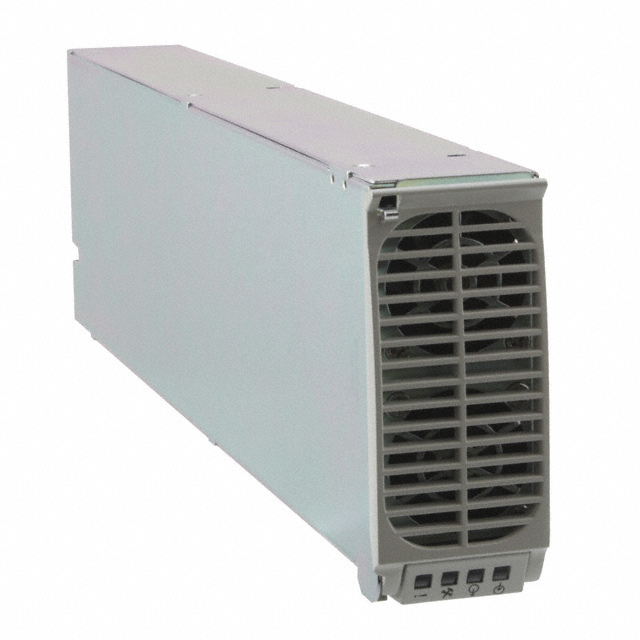

OmniOn Power™ CP2000DC54PEZ		CSA	2 kW	13.85 in	351.2 mm	41.4 mm	101.6 mm	4 "	1.63 in		-5 °C	45 °C	90 %				54 V	Front End	ITE (Commercial)	Rack Mount	1	-40 V	37 A	-72 V
OmniOn Power™ CP2000DC54PEZ		CSA	2 kW	13.85 in	351.2 mm	41.4 mm	101.6 mm	4 "	1.63 in		-5 °C	45 °C	90 %				54 V	Front End	ITE (Commercial)	Rack Mount	1	-40 V	37 A	-72 V
OmniOn Power™ CP2000AC54TEZ	37 A	CE	2 kW	13.85 in	351.8 mm	41.4 mm	101.6 mm	4 "	1.63 in	3000 V	-10 °C	75 °C	95 %	Adjustable Output Hot Swappable I2C Interface Load Sharing PFC PMBus™ Remote Sense Standby Output Universal Input	90 VAC 185 VAC	140 VAC 300 VAC	54 V	Front End	ITE (Commercial)	Rack Mount	1
