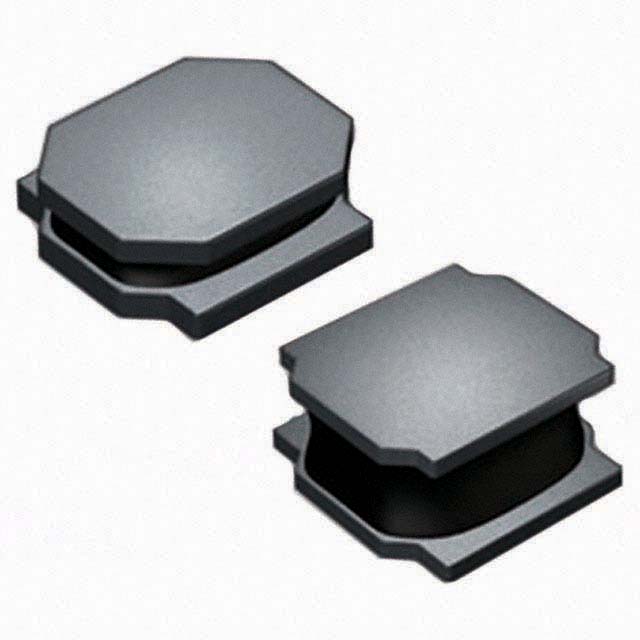

NRH Series

Catalog

POWER INDUCTORS - SMD 963-LSXNE2424MKT1R0N RPLCMT PN 2412 1UH 92.4MOHMS 1300MA

Part	DC Resistance (DCR) [Max]	Inductance	Mounting Type	Current Rating (Amps)	Type	Material - Core	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Shielding	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Inductance Frequency - Test	Frequency - Self Resonant	Current - Saturation (Isat)	Tolerance	Package / Case	Ratings	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	DC Resistance (DCR)
Taiyo Yuden NRH2412T1R0NNGH	92.4 mOhm	1 µH	Surface Mount	1.3 A	Drum Core Wirewound	Ferrite	2.4 mm	2.4 mm	0.094 in	0.094 "	Shielded	120 °C	-25 °C	1.2 mm	0.047 "	100 kHz	101 MHz	2.35 A	30 %	Nonstandard
Taiyo Yuden NRH3010T3R3MNV	156 mOhm	3.3 µH	Surface Mount	1 A	Drum Core Wirewound	Ferrite	3 mm	3 mm	0.118 in	0.118 "	Shielded	125 °C	-40 C			100 kHz	64 MHz	1 A	20 %	Nonstandard	AEC-Q200	0.039 in	1 mm
Taiyo Yuden NRH3012T6R8MN	228 mOhm	6.8 µH	Surface Mount	0.89 A	Drum Core Wirewound	Ferrite	3 mm	3 mm	0.118 in	0.118 "	Semi-Shielded Shielded	120 °C	-25 °C	1.2 mm	0.047 "	100 kHz	43 MHz	850 mA	20 %	Nonstandard
Taiyo Yuden NRH3010T6R8MNV	300 mOhm	6.8 µH	Surface Mount	745 mA	Drum Core Wirewound	Ferrite	3 mm	3 mm	0.118 in	0.118 "	Shielded	125 °C	-40 C			100 kHz	44 MHz	700 mA	20 %	Nonstandard		0.039 in	1 mm
Taiyo Yuden NRH2412T6R8MNGH		6.8 µH	Surface Mount	0.55 A	Drum Core Wirewound	Ferrite	2.4 mm	2.4 mm	0.094 in	0.094 "	Shielded	120 °C	-25 °C	1.2 mm	0.047 "	100 kHz	34 MHz	950 mA	20 %	Nonstandard				420 mOhm
Taiyo Yuden NRH2410T1R5MNV	132 mOhm	1.5 µH	Surface Mount	1.16 A	Drum Core Wirewound	Ferrite	2.4 mm	2.4 mm	0.094 in	0.094 "	Shielded	125 °C	-40 C			100 kHz	94 MHz	1.55 A	20 %	Nonstandard	AEC-Q200	0.039 in	1 mm
