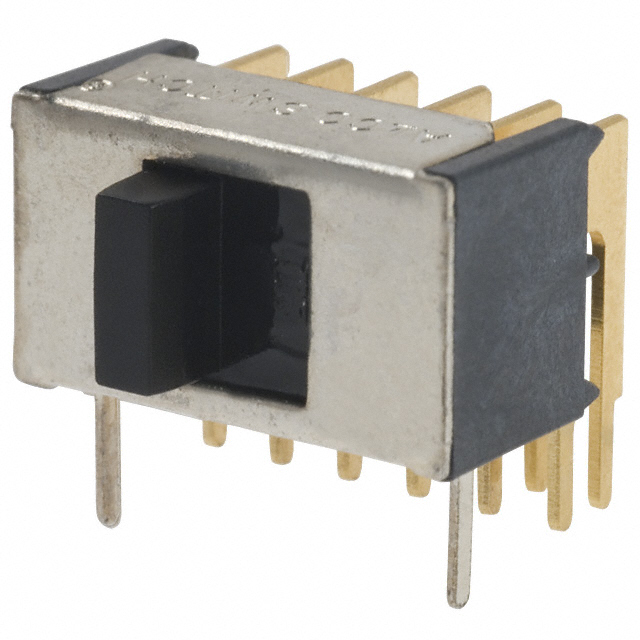

TSS41 Series
Manufacturer: TE Connectivity AMP Connectors
Catalog
SWITCH SLIDE 4PDT 0.4VA 20V
| Part | Electrical Life | Mechanical Life | Operating Force | Switch Travel | Actuator Material | Current Rating (Amps) | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating - AC | Contact Timing | Circuit | Contact Finish | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Switch Function | Actuator Length [x] | Operating Force [Min] | Operating Force [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 60000 Cycles | 60000 Cycles | 0.2 kgf | 3.05 mm | Polybutylene Terephthalate (PBT) | 0.4 VA | Copper | 80 °C | -20 ░C | 20 V | Non-Shorting (BBM) | 4PDT | Gold | 20 V | Standard | Right Angle Through Hole | PC Pin | On-On | 2.79 mm | ||
 TE Connectivity AMP Connectors | 60000 Cycles | 60000 Cycles | 3.05 mm | Polyester | 0.4 VA | Copper Alloy | 80 °C | -20 ░C | 20 V | Non-Shorting (BBM) | 4PDT | Gold | 20 V | Standard | Through Hole | PC Pin | On-On | 2.79 mm | 150 gf | 600 gf |
