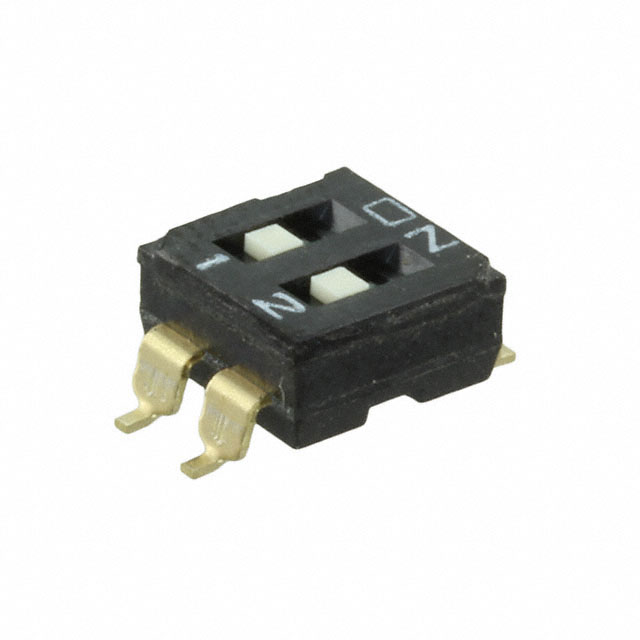

A6S-2101 Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
SWITCH SLIDE DIP SPST 0.025A 24V
| Part | Contact Finish | Height Above Board [z] | Height Above Board [z] | Actuator Level | Operating Temperature [Min] | Operating Temperature [Max] | Actuator Type | Pitch | Pitch | Mounting Type | Washable | Mechanical Life | Current Rating (Amps) | Electrical Life | Length | Length | Termination Style | Circuit | Voltage Rating | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | Gold | 3.7 mm | 0.146 in | Flush Recessed | -20 ░C | 70 °C | Slide (Standard) | 2.54 mm | 0.1 " | Surface Mount | 1000 Cycles | 25 mA | 1000 Cycles | 6.02 mm | 0.237 in | Gull Wing | SPST | 24 VDC | 2 |
