HL7800 Series

Catalog

RF TXRX MOD CELL NAV SMD

Part	Antenna Type	Package / Case	Serial Interfaces	Mounting Type	Protocol	Data Rate	Operating Temperature [Max]	Operating Temperature [Min]	RF Family/Standard	For Use With/Related Products	Supplied Contents	Type	Contents	Utilized IC / Part	Voltage - Supply [Min]	Voltage - Supply [Max]

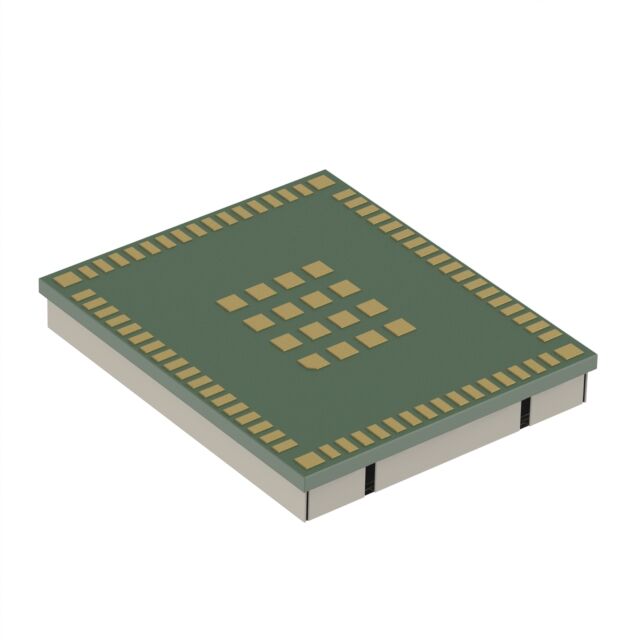

Semtech Corporation HL7800_1104526	Antenna Not Included	86-BFLGA Module	ADC GPIO UART USB	Surface Mount	GNSS LTE	375 kbps	85 °C	-40 C	Cellular Navigation
Semtech Corporation HL7800-M_1104799	Antenna Not Included	86-BFLGA Module	ADC GPIO UART USB	Surface Mount	GNSS LTE	375 kbps	85 °C	-40 C	Cellular Navigation
Semtech Corporation HL7800_1104484	Antenna Not Included	86-BFLGA Module	ADC GPIO UART USB	Surface Mount	GNSS LTE	375 kbps	85 °C	-40 C	Cellular Navigation
Semtech Corporation HL7800-M_1104608	Antenna Not Included	86-BFLGA Module	ADC GPIO UART USB	Surface Mount	GNSS LTE	375 kbps	85 °C	-40 C	Cellular Navigation
Semtech Corporation HL7800_1104764	Antenna Not Included	86-BFLGA Module	ADC GPIO UART USB	Surface Mount	GNSS LTE	375 kbps	85 °C	-40 C	Cellular Navigation
Semtech Corporation HL7800-M_1104551	Antenna Not Included	86-BFLGA Module	ADC GPIO UART USB	Surface Mount	GNSS LTE	375 kbps	85 °C	-40 C	Cellular Navigation
Semtech Corporation 6001210										HL7800 HL7800-M	Board(s)	Cellular Cellular Development Platform	Board(s)	HL7800 HL7800-M

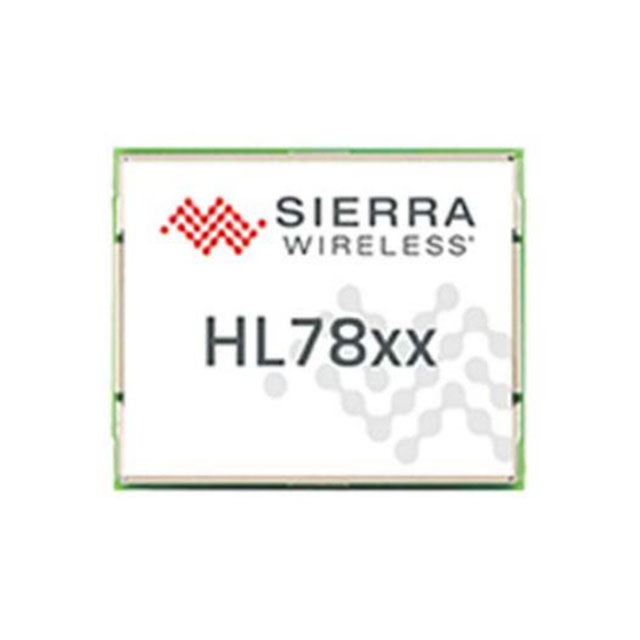

Semtech Corporation HL7800-M_1104150	Antenna Not Included	86-LGA Module	UART USB	Surface Mount	LTE	375 kbps	85 °C	-40 C	Cellular						3.2 V	4.35 V
Semtech Corporation HL7800_1104755	Antenna Not Included	86-BFLGA Module	ADC GPIO UART USB	Surface Mount	GNSS LTE	375 kbps	85 °C	-40 C	Cellular Navigation
Semtech Corporation HL7800-M_1104938	Antenna Not Included	86-BFLGA Module	ADC GPIO UART USB	Surface Mount	GNSS LTE	375 kbps	85 °C	-40 C	Cellular Navigation
