CONSMB001 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
SMB JACK 50 OHM PCB SURFACE MOUNT
| Part | Center Contact Plating | Body Material | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Body Finish | Mating Cycles | Voltage Rating | Frequency - Max [Max] | Contact Termination | Connector Style | Housing Color | Center Contact Material | Mounting Type | Fastening Type | Number of Ports | Connector Type | Shield Termination | Impedance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

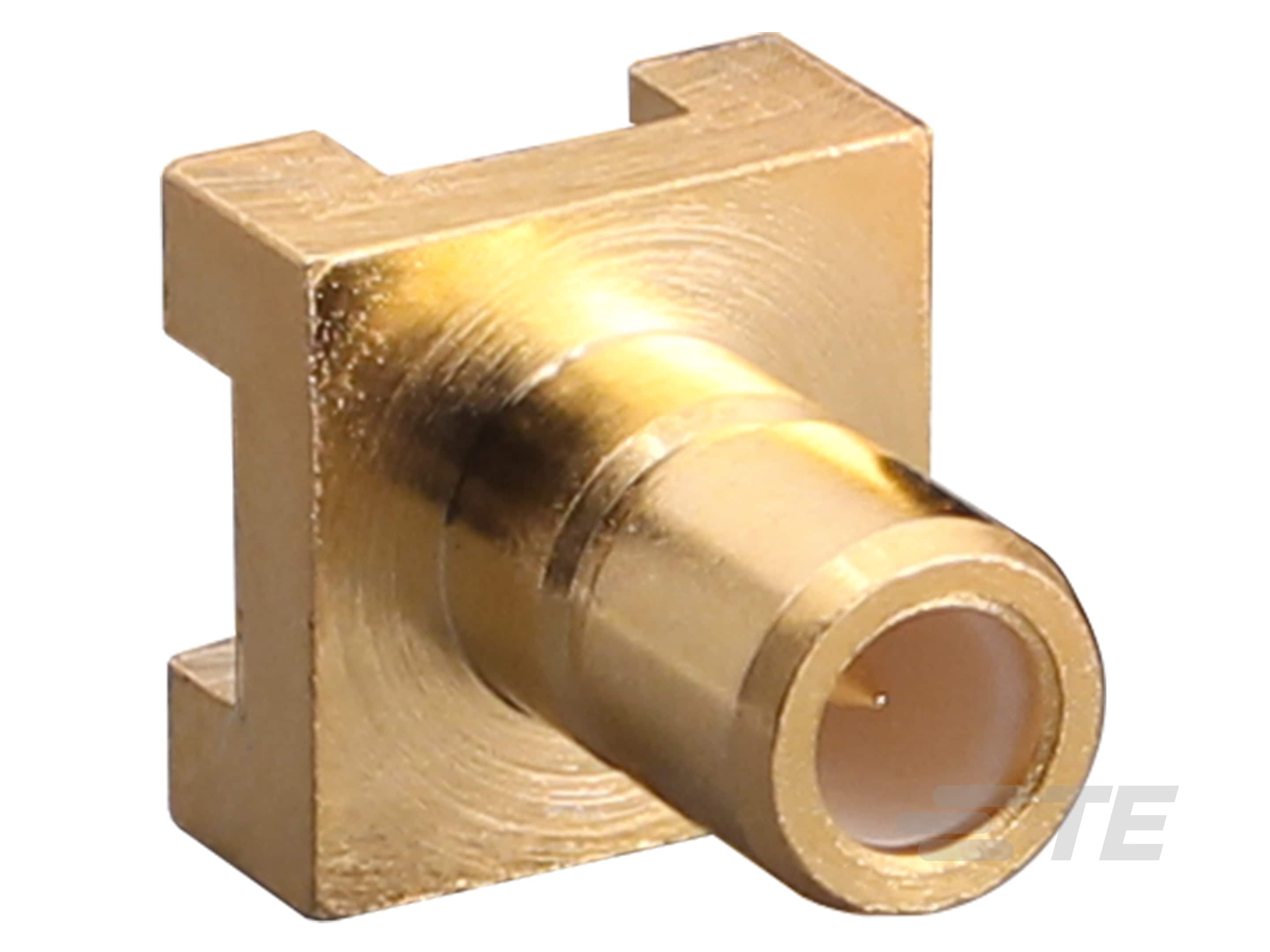

 TE Connectivity AMP Connectors | Gold | Brass | Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | Gold | 500 | 750 VDC | 12 GHz | Solder | SMB | Gold | Brass | Surface Mount | Snap-On | 1 | Jack Male Pin | Solder | 50 Ohms |

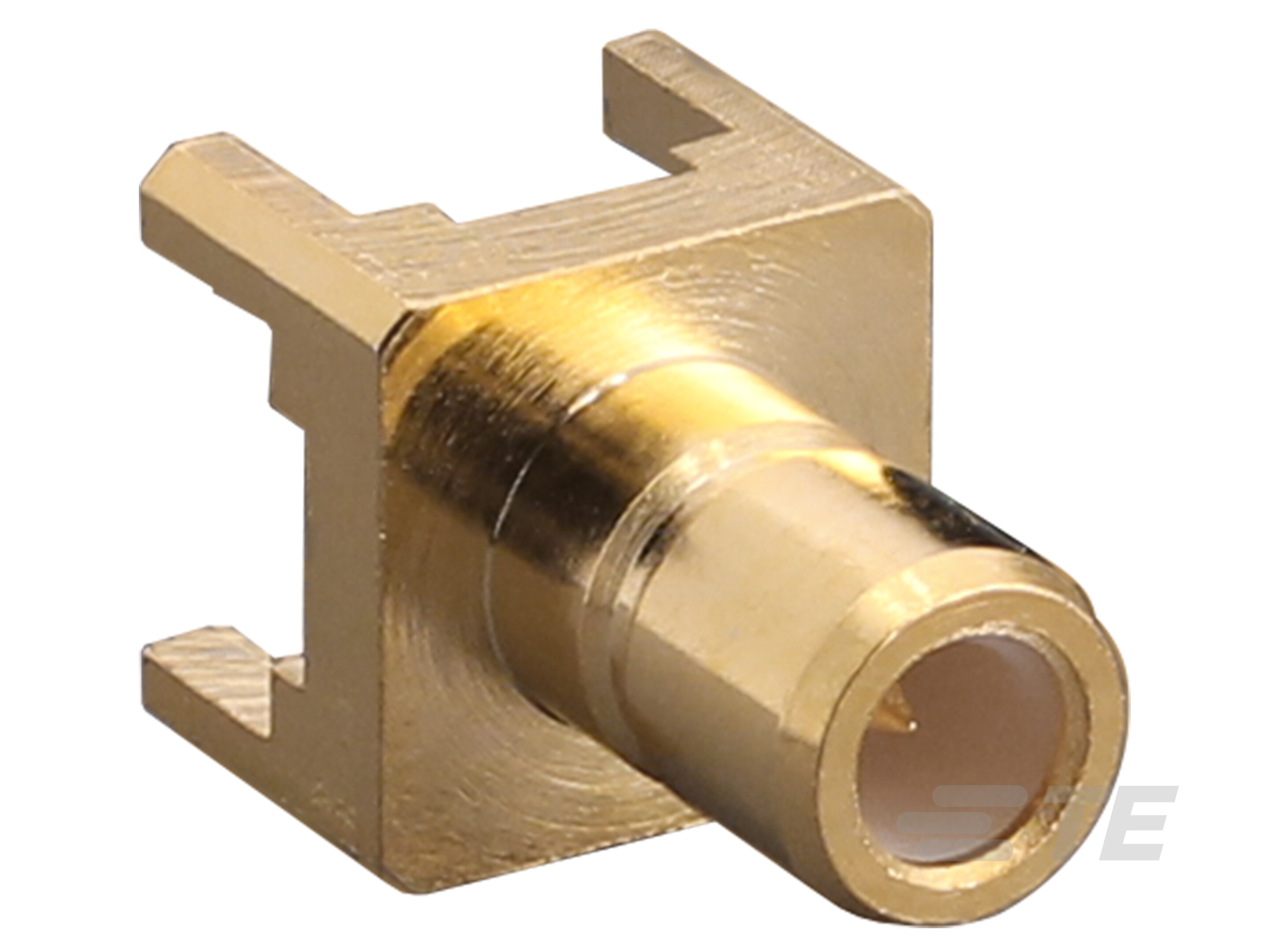

 TE Connectivity AMP Connectors | Gold | Brass | Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | Gold | 500 | 750 VDC | 4 GHz | Solder | SMB | Gold | Brass | Through Hole | Snap-On | 1 | Jack Male Pin | Solder | 50 Ohms |

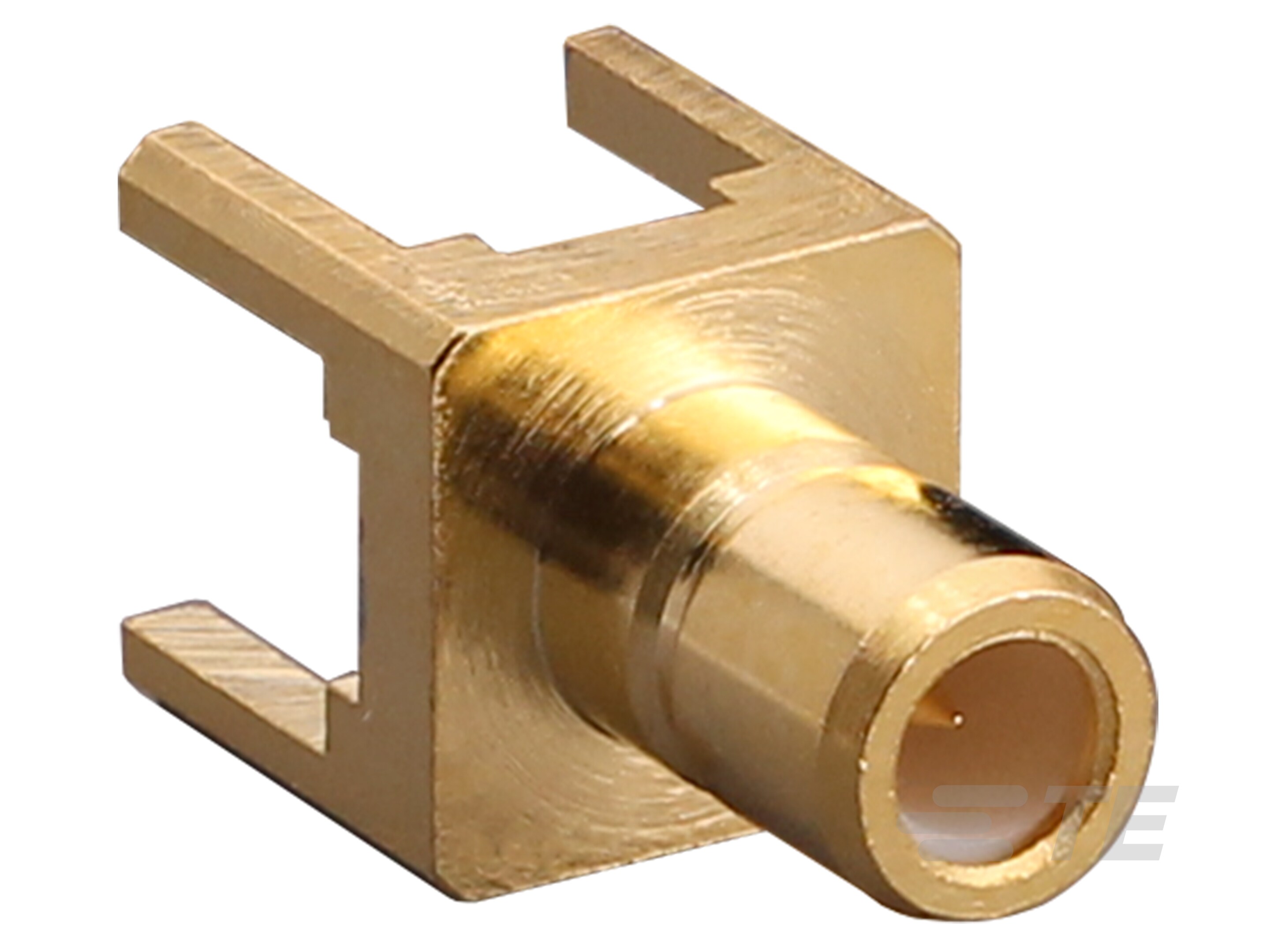

 TE Connectivity AMP Connectors | Gold | Brass | Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | Gold | 500 | 750 VDC | 4 GHz | Solder | SMB | Gold | Brass | Through Hole | Snap-On | 1 | Jack Male Pin | Solder | 50 Ohms |
